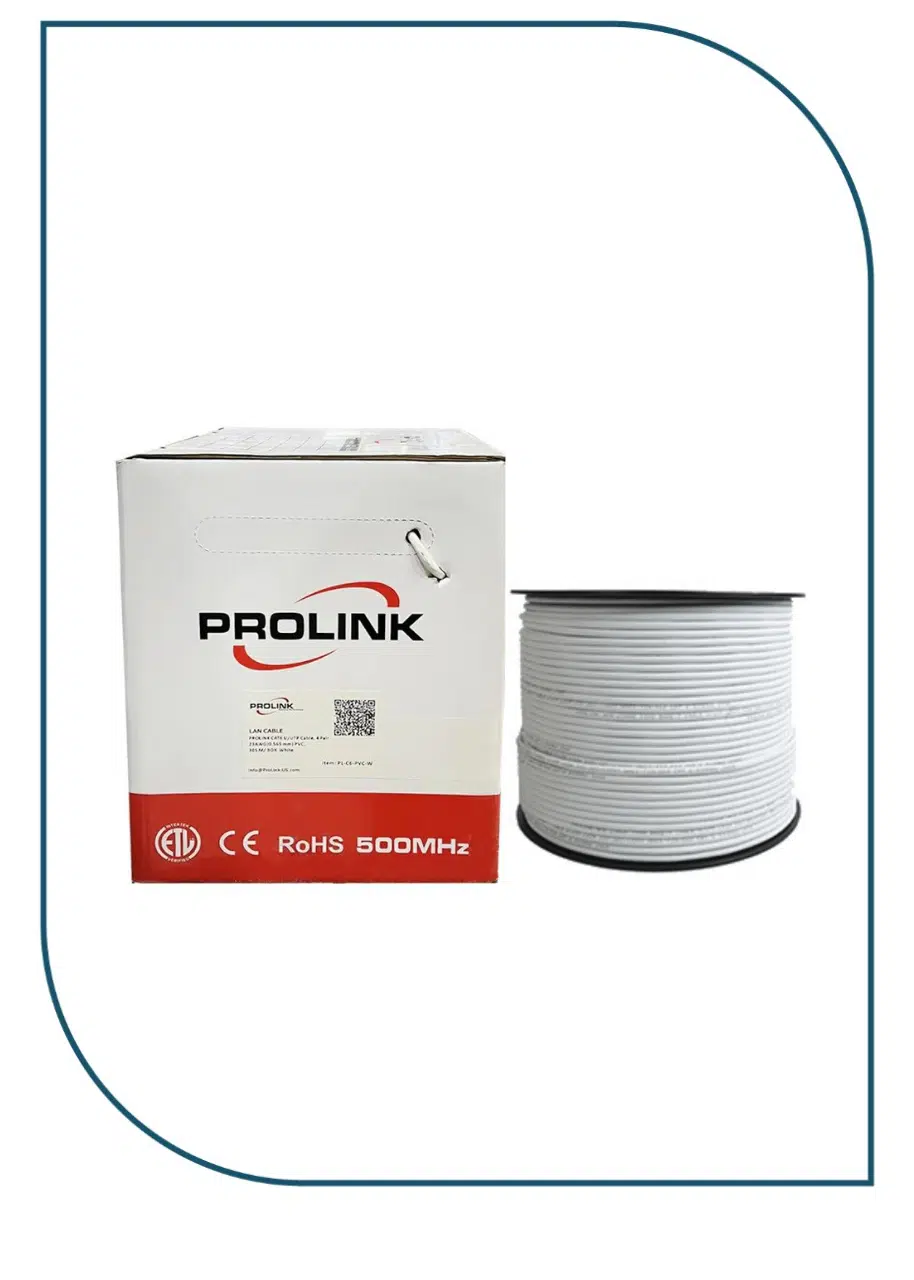

ProLink CAT6 U/UTP CABLE, 4 PAIR 23 AWG , White , PL-C6-PVC-W
PL-C6-PVC-W is a high‑performance Cat6 Ethernet cable with durable PVC insulation, designed for reliable data transmission in structured cabling systems. It supports Gigabit speeds, minimizes crosstalk, and ensures stable connectivity for enterprise and home networks. The white jacket provides a clean, professional look suitable for office or residential installations.
PL-C6-PVC-W Data Sheet
Original price was: 7.799,00 EGP.6.499,00 EGPCurrent price is: 6.499,00 EGP.
Buy NowDescription
PL-C6-PVC-W – ProLink CAT6 U/UTP CABLE
Product Description
- Category 6 U/UTP Cable, 23 AWG, white jacket
- 4 pair count
- Length: 305 m reel (boxed)
Construction Details
- Conductor: Solid copper wire AWG23 (Ø 0.58 mm)
- Insulation: Polyethylene, ≤ Ø 1.1 mm
- Twisting: 2 cores twisted to form a pair
- Cable Lay-up: 4 pairs with non-metallic cross separator (spline)
- Water Protection: Filled with compound to prevent water penetration (suitable for outdoor use)
- Sheath: White PVC jacket
Standards Supported:
- IEEE 802.3: 10Base-T, 100Base-T, 1000Base-T
- IEEE 802.5 16 MB, ISDN, TPDDI, ATM
- POE: IEEE 802.3af-2002 (POE), IEEE 802.3at (POE+)
Standards Compliance
- ISO/IEC 11801
- EN 50288-6-1
- IEC 61156-5
- EN 50173-1
- IEC 60794-1-2F5 (Method B) for water penetration
- IEC 60754-2 for PE outer sheath smoke classification
Technical Data
- Cable Designation: Industry U/UTP Cat.6 500 MHz 4P x AWG23
- Packaging: Drum, 305 m length
- Outer Diameter: Nominal 7.2 mm
- Weight: 20 kg/km
- Thermal Load: 1884 MJ/km
- Segregation Class: b
Mechanical Properties
- Tensile Force: 100 N
- Bending Radius:
- Operation (no load): ≥ 33 mm
- Installation (with load): ≥ 65 mm
- Temperature Range:
- Operation: -55°C to +60°C
- Installation: -15°C to +50°C
DataSheet
Additional information
| Cable Length | 305 M |
|---|---|
| Cable Type | CAT6 |
| Cable Shield Type | UTP |
| Cable Conductors | 23AWG |
| Cable Jackets | PVC |
| Color | White |
