Description
The Prolink PL-C6-PVC-24W is a Category 6 U/UTP network cable designed for indoor structured cabling applications. Manufactured with 24 AWG solid bare copper conductors, four twisted pairs, and a durable PVC outer jacket, it delivers reliable Gigabit Ethernet performance while minimizing crosstalk and signal attenuation.

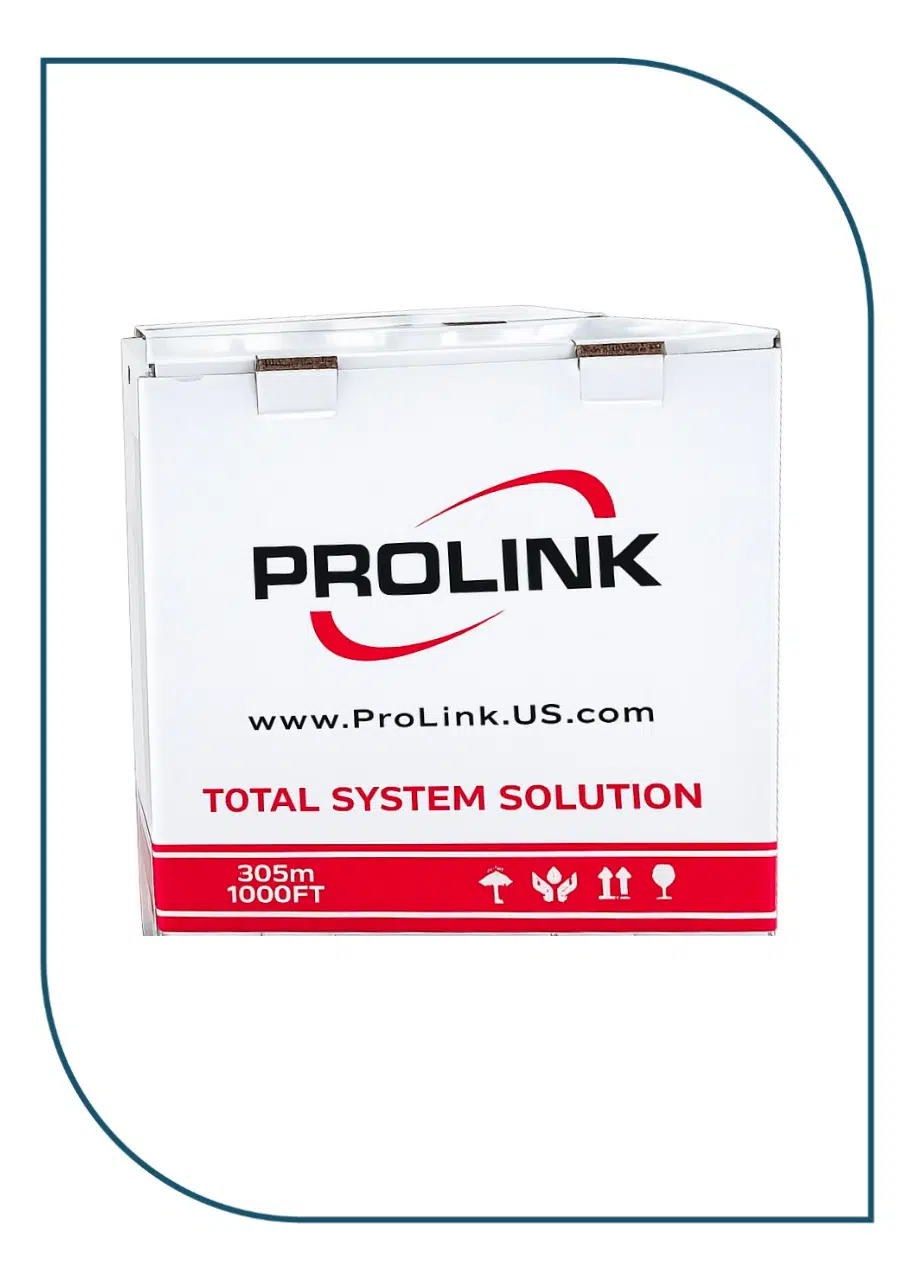

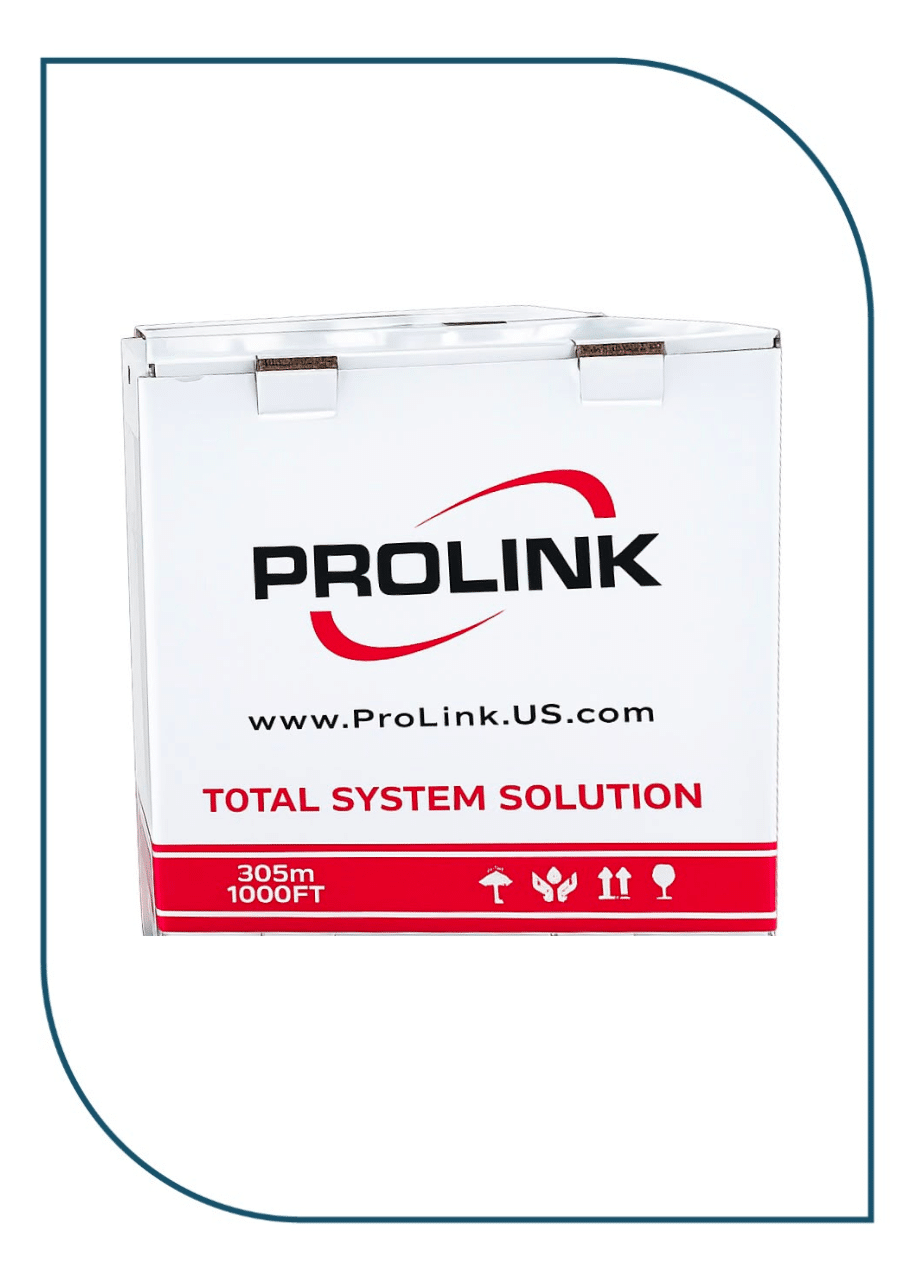

Supplied in a 305-meter pull box, the cable is ideal for offices, commercial buildings, educational institutions, hotels, retail environments, and CCTV installations. It supports high-speed data transmission for 10/100/1000Base-T Ethernet networks and is compatible with PoE and PoE+ devices such as IP cameras, VoIP phones, wireless access points, and network switches.
Designed to meet international structured cabling standards, the PL-C6-PVC-24W offers dependable performance, easy installation, and long-term durability for professional LAN infrastructure deployments.
Specifications
| Feature | Specification |
|---|---|
| Model | Prolink PL-C6-PVC-24W |
| Product Type | CAT6 U/UTP Network Cable |
| Category | Category 6 |
| Cable Type | U/UTP (Unshielded Twisted Pair) |
| Conductor Material | Solid Bare Copper |
| Conductor Size | 24 AWG |
| Pair Count | 4 Twisted Pairs |
| Cable Length | 305 m (1000 ft) |
| Jacket Material | PVC |
| Jacket Color | White |
| Bandwidth | Up to 250 MHz |
| Ethernet Support | 10/100/1000Base-T |
| PoE Support | IEEE 802.3af PoE, IEEE 802.3at PoE+ |
| Characteristic Impedance | 100 ± 5 Ω |
| Standards | ISO/IEC 11801, ANSI/TIA-568 |
| Applications | LAN, Structured Cabling, CCTV, VoIP, Data Networks |
| Installation | Indoor |
