Description

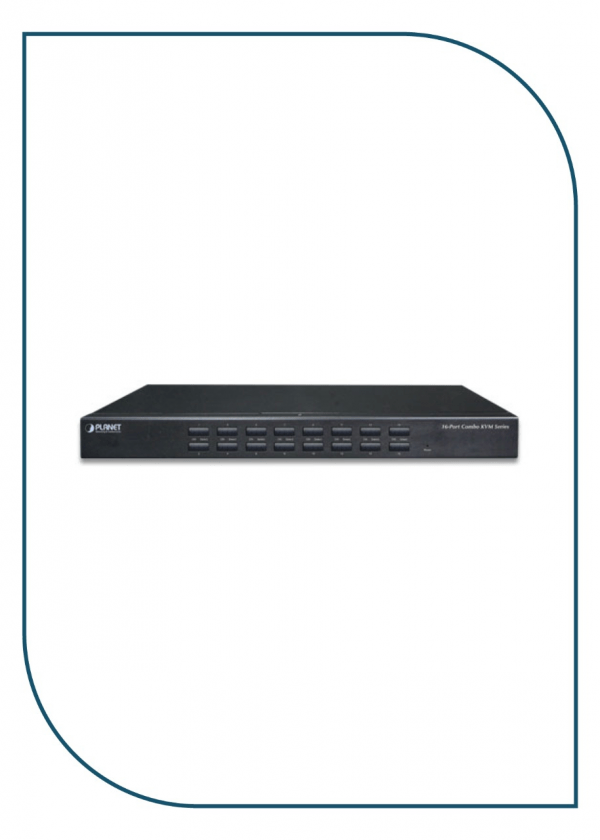

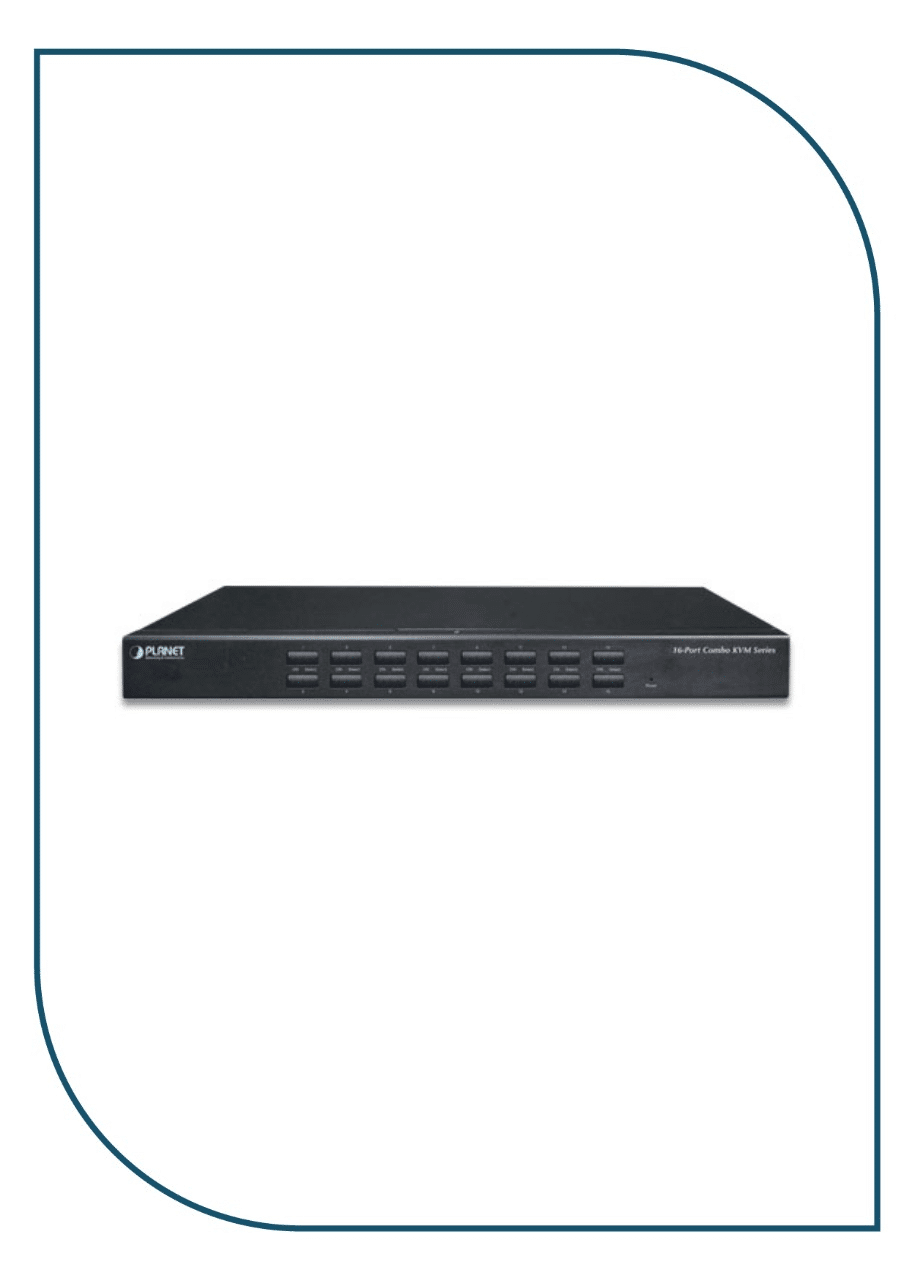

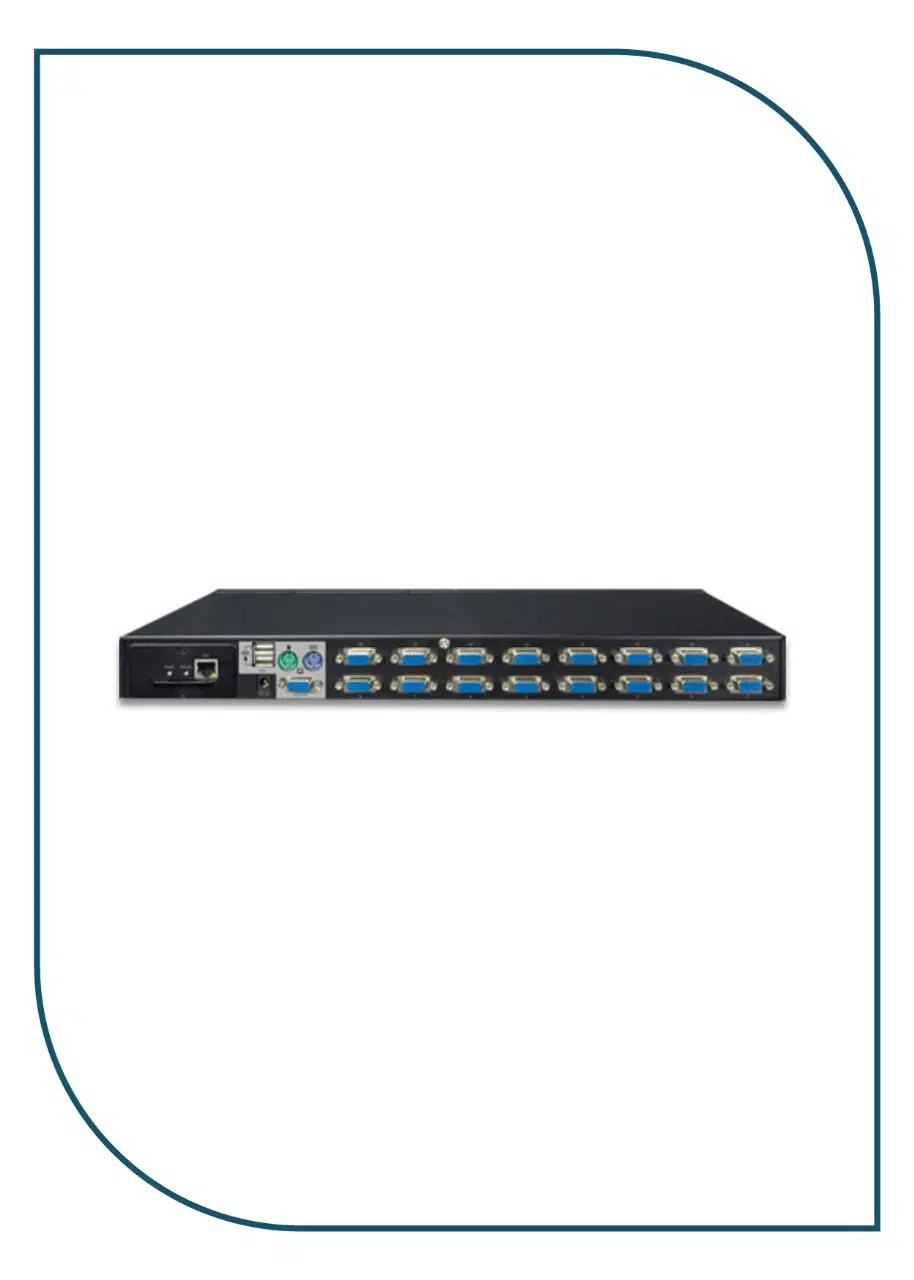

IKVM-210-16
Key Features :
Hardware
- 1U rack-mount size and desktop design
- Standalone machine controls up to 16 sets of computers
- Up to 2 levels can be cascaded and up to 256 computers can be controlled
- Front panel status LEDs give a clear indication of the active computers
Security
- Two-layer password security protection
- DES, AES and 3DES for data encryption
Management
- Auto scan mode for monitoring computers
- Requires no additional software or hardware
- Computer selection via Port Select Button, Hotkey and On Screen Display (OSD)
- Hot pluggable: Add or remove computers without having to power down the switch
- QVS (Quick View Setting): Quickly select your computer by naming its model or serial number
Remote Access
- Remotely control PC via TCP/IP and a built-in 10/100/1000Mbps Ethernet port
- High Video Quality: Resolution up to 2048 x 1536 (local side) or 1920 x 1080 (remote side)
- Sends the key combinations to a remote computer
- Administrator and multiple users with password protection
- Use of the absolute synchronistical technology of mouse to ensure the accuracy of the Windows operating system
- Expedient bandwidth control
Compatibility
- Multiplatform support — Windows, Linux and Sun
- Multibrowser support (IE, Chrome, Firefox)
- Supports Microsoft Intellimouse, Logitech Net Mouse and other third-party’s PS/2 mice
IKVM-210-16 Applications :
Remote Management via Network
With PLANET IKVM-210-16, network administrators can control a server room locally or remotely through Internet. No additional software or license fee is needed; multiple users can securely access remote server by using a standard web browser to create an HTTP connection.
Cascade Operation
The IKVM-210-16 is easy to install for controlling up to 16 computers/servers. Furthermore, sixteen KVM switches can be cascaded to enable to control up to 256 servers.
