Description

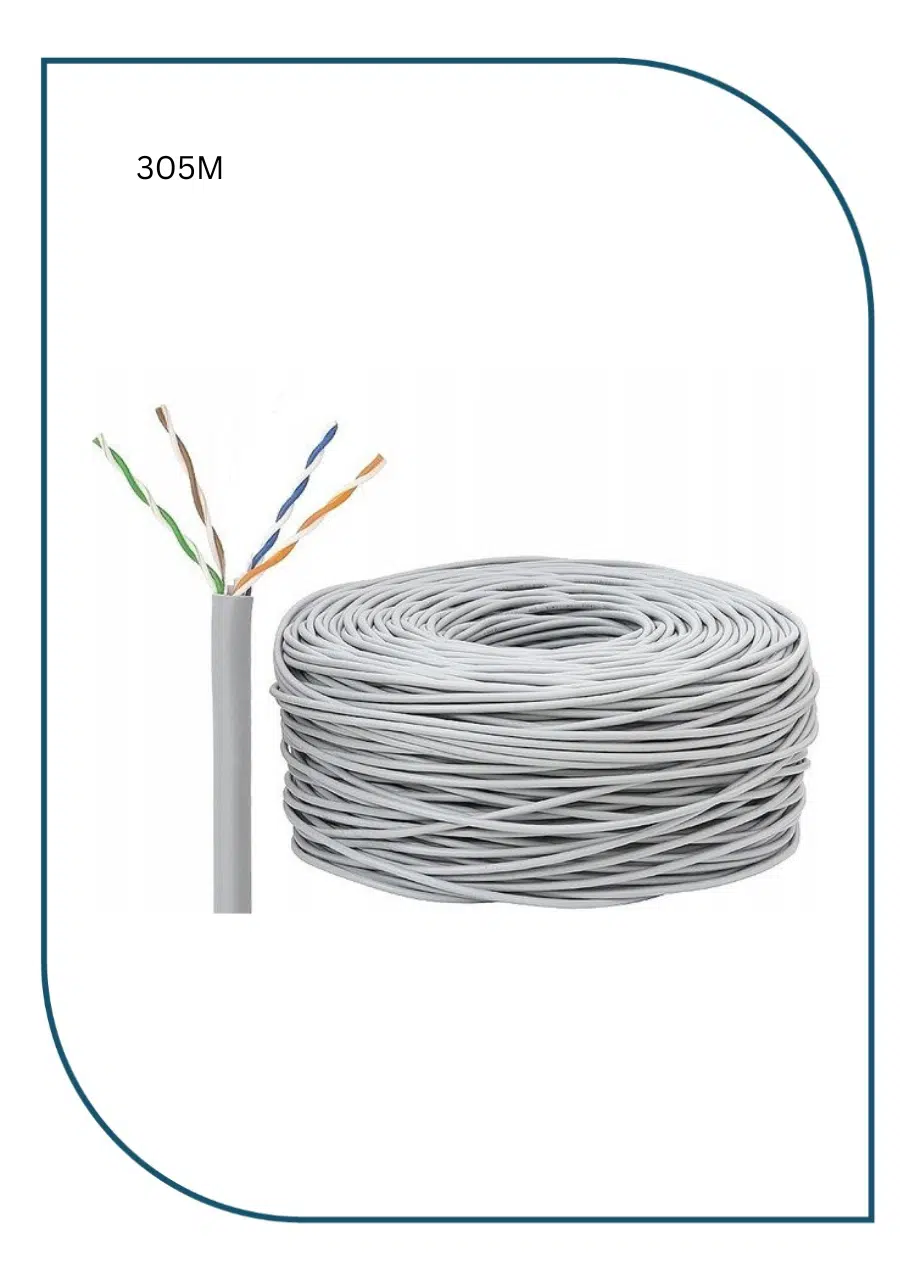

PL-C6A-LSZH-W
The PL‑C6A‑LSZH‑W is a premium Category 6a Ethernet cable engineered for enterprise‑grade networking where both performance and safety are critical. Constructed with 23 AWG solid copper conductors, it ensures superior signal integrity, reduced resistance, and reliable PoE/PoE+ power delivery.
Designed with a Low Smoke Zero Halogen (LSZH) jacket, this cable minimizes toxic emissions and smoke in case of fire, making it ideal for data centers, hospitals, schools, offices, and public buildings where compliance with safety standards is essential.
✨ Key Features
- Cat6a performance: Supports 10 Gigabit Ethernet with bandwidth up to 500 MHz.
- 23 AWG solid copper: Ensures low resistance and stable PoE/PoE+ operation.
- LSZH jacket: Safer in enclosed environments, reducing smoke and halogen gas emissions.
- White color (W): Clean aesthetic for modern installations.
- Standards compliant: Meets ANSI/TIA and ISO/IEC requirements for Cat6a cabling.
- Applications: High‑speed LANs, Wi‑Fi 6/7 access points, VoIP phones, IP cameras, and enterprise backbone connections.
- Conductor: Solid copper wire AWG23 (Ø 0.58mm).
- Insulation: Polyethylene ≤ Ø 7.0 mm.
- Cable lay up: 4 pairs to the core, non-metallic cross separator (spline).
- Cable core lying: Waterproof compound to prevent moisture migration and water protection.
- Sheath: White, LSZH
