Description

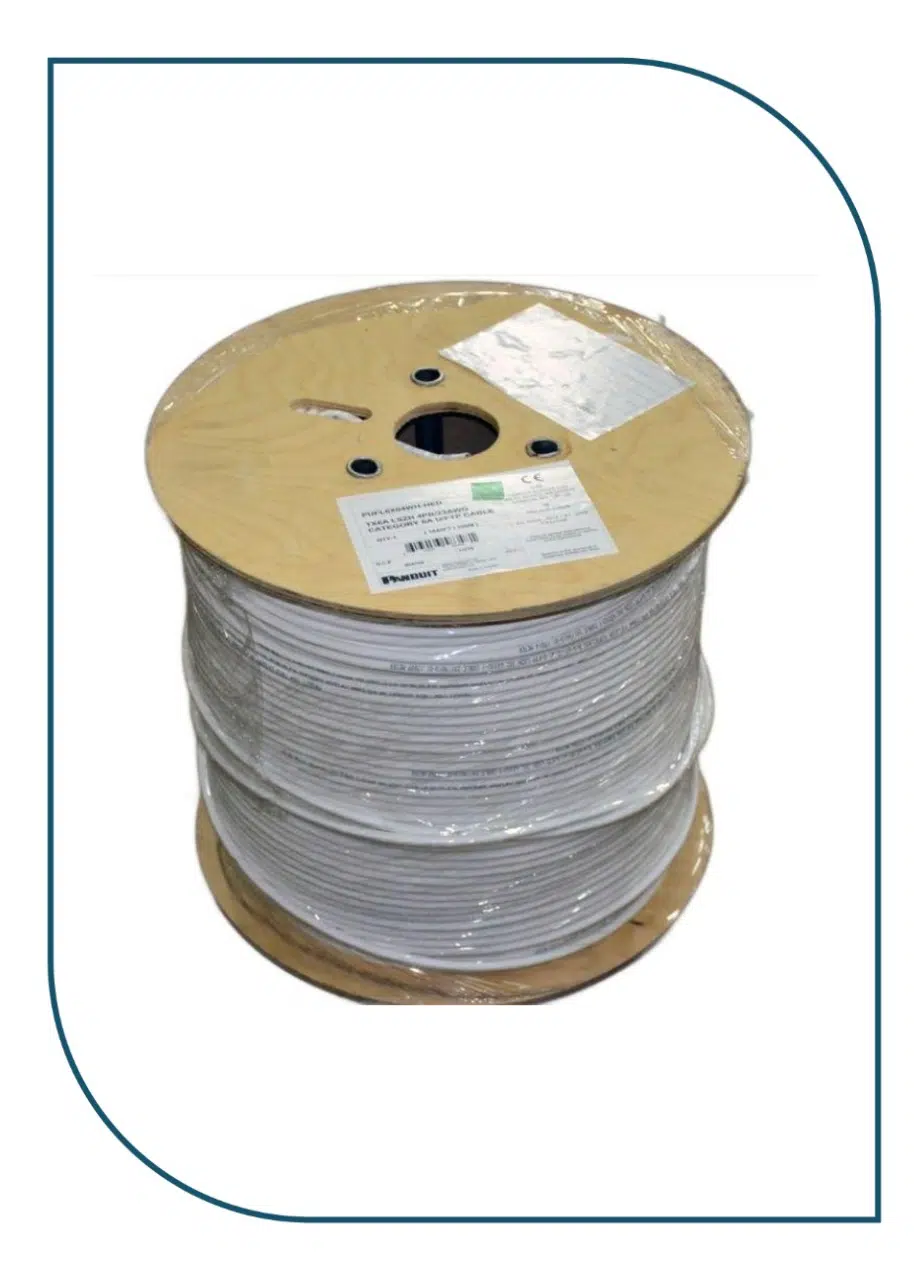

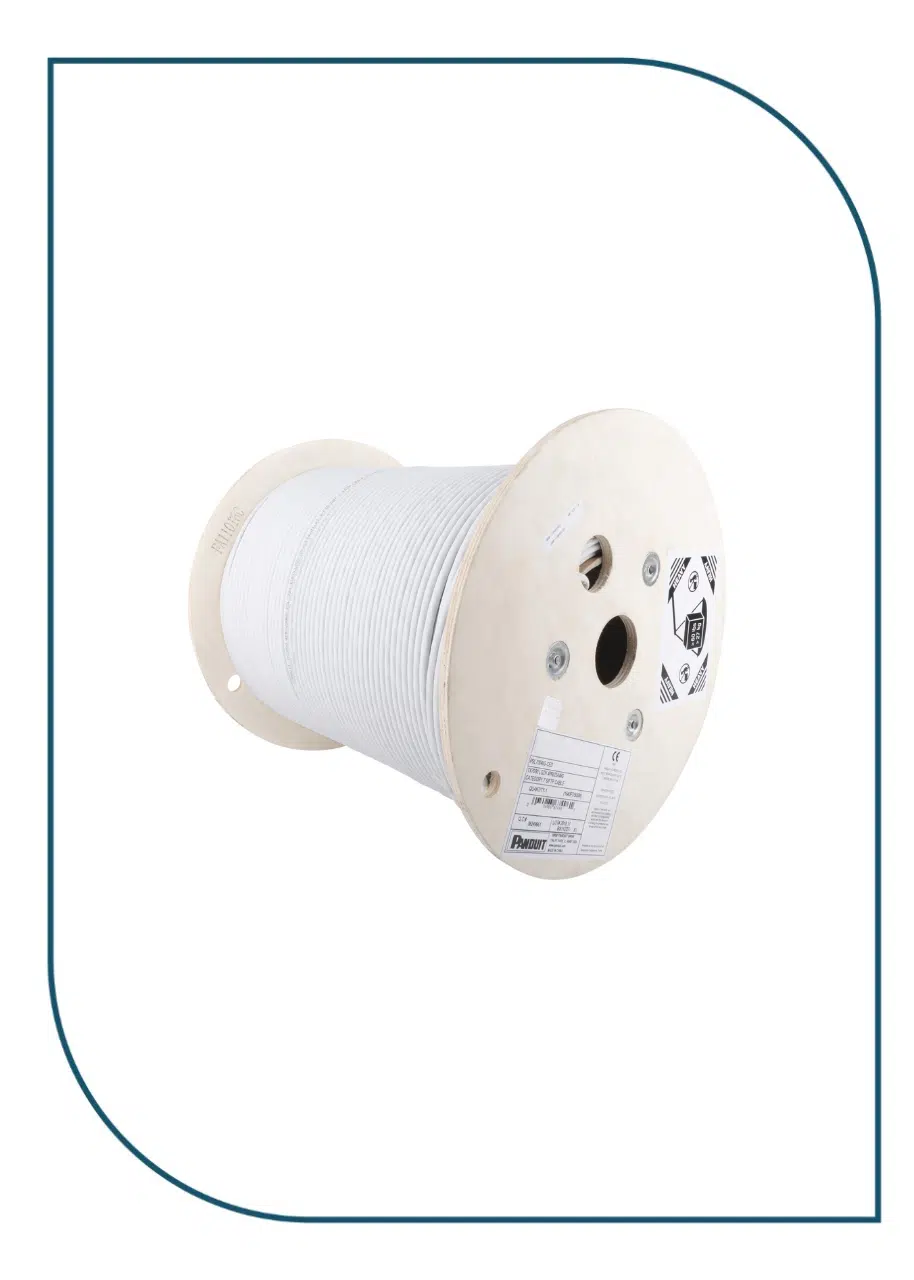

The Panduit (P-PUFL6X04WH) TX6A™ Cat6A U/FTP Copper Cable is a premium-performance structured cabling solution designed for high-speed Ethernet networks. Built with 23 AWG solid bare copper conductors, the cable delivers exceptional signal integrity while supporting 10 Gigabit Ethernet transmission over distances up to 100 meters.
Each of the four twisted pairs is individually protected with aluminum foil shielding (U/FTP), significantly reducing alien crosstalk and electromagnetic interference (EMI). The cable is enclosed in a Low Smoke Zero Halogen (LSZH) jacket, making it suitable for indoor commercial environments where fire safety and reduced toxic emissions are required.
Engineered to meet ANSI/TIA-568.2-D and IEC 61156-5 standards, the Panduit TX6A cable is ideal for structured cabling installations in enterprise networks, office buildings, healthcare facilities, educational institutions, and data centers requiring reliable high-bandwidth performance.
| Specification | Details |
|---|---|
| Manufacturer | Panduit |
| Part Number | P-PUFL6X04WH |
| Product Series | TX6A™ |
| Cable Category | Category 6A |
| Cable Type | U/FTP (Overall Unshielded, Individually Foil Shielded Pairs) |
| Conductor Size | 23 AWG |
| Conductor Material | Solid Bare Copper |
| Number of Pairs | 4 Pairs |
| Number of Conductors | 8 Conductors |
| Insulation | Polyethylene (PE/HDPE) |
| Shielding | Individual Foil Shield on Each Pair |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Jacket Color | White |
| Cable Length | 500 m (1,640 ft) |
| Performance | Supports 10 Gigabit Ethernet (10GBASE-T) up to 100 m |
| Standards | ANSI/TIA-568.2-D, IEC 61156-5 |
| Operating Temperature | -20°C to +75°C |
| Application | Enterprise LAN, Data Centers, Backbone Cabling, Structured Cabling Systems |
| Installation | Indoor |
| Reel Type | 500 m Reel |
