Description

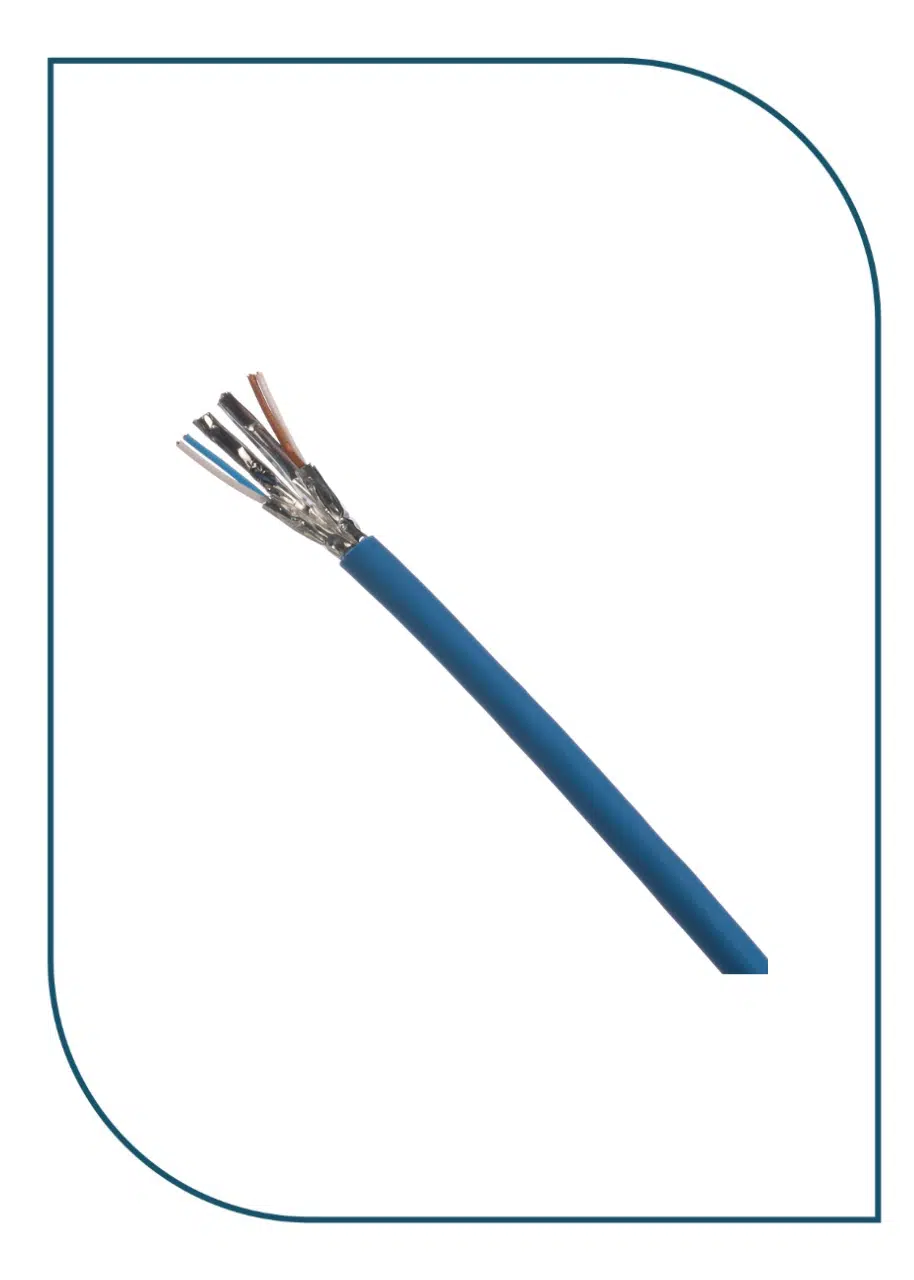

The Panduit NUL6X04WH-EG NetKey® Category 6A U/UTP Copper Cable is a professional-grade structured cabling solution designed to support modern high-speed Ethernet networks. Manufactured with 23 AWG solid bare copper conductors, this cable delivers dependable 10 Gigabit Ethernet (10GBASE-T) performance over distances up to 100 meters.
Its U/UTP (Unshielded Twisted Pair) design provides reliable signal transmission while maintaining flexibility for easy installation. The LSZH (Low Smoke Zero Halogen) jacket minimizes smoke and toxic gas emissions during fire, making it ideal for commercial buildings, offices, hospitals, schools, and data centers.
Operating at frequencies up to 500 MHz, the cable supports high-bandwidth applications including PoE, PoE+, and PoE++, making it suitable for IP surveillance systems, wireless access points, VoIP phones, and other network infrastructure devices. Supplied in a 305-meter (1000 ft) reel, it is an excellent choice for professional structured cabling installations.
| Specification | Details |
|---|---|
| Manufacturer | Panduit |
| Part Number | NUL6X04WH-EG |
| Product Series | NetKey® |
| Cable Category | Category 6A (Class EA) |
| Cable Type | U/UTP (Unshielded Twisted Pair) |
| Conductor Size | 23 AWG |
| Conductor Material | Solid Bare Copper |
| Number of Pairs | 4 Twisted Pairs |
| Number of Conductors | 8 Conductors |
| Shielding | Unshielded (U/UTP) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Jacket Color | White |
| Cable Length | 305 m (1000 ft) |
| Cable Diameter | Approx. 7.1 mm |
| Bandwidth | Up to 500 MHz |
| Ethernet Support | 10GBASE-T up to 100 meters |
| PoE Support | IEEE 802.3af, 802.3at & 802.3bt |
| Fire Rating | EuroClass Dca-s2,d2,a1 (variant dependent) |
| Operating Temperature | -20°C to +75°C |
| Installation Temperature | 0°C to +50°C |
| Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class EA, RoHS |
| Applications | Enterprise LAN, Offices, Data Centers, IP Cameras, VoIP, Wireless Access Points, Structured Cabling |
| Installation | Indoor |
