Description

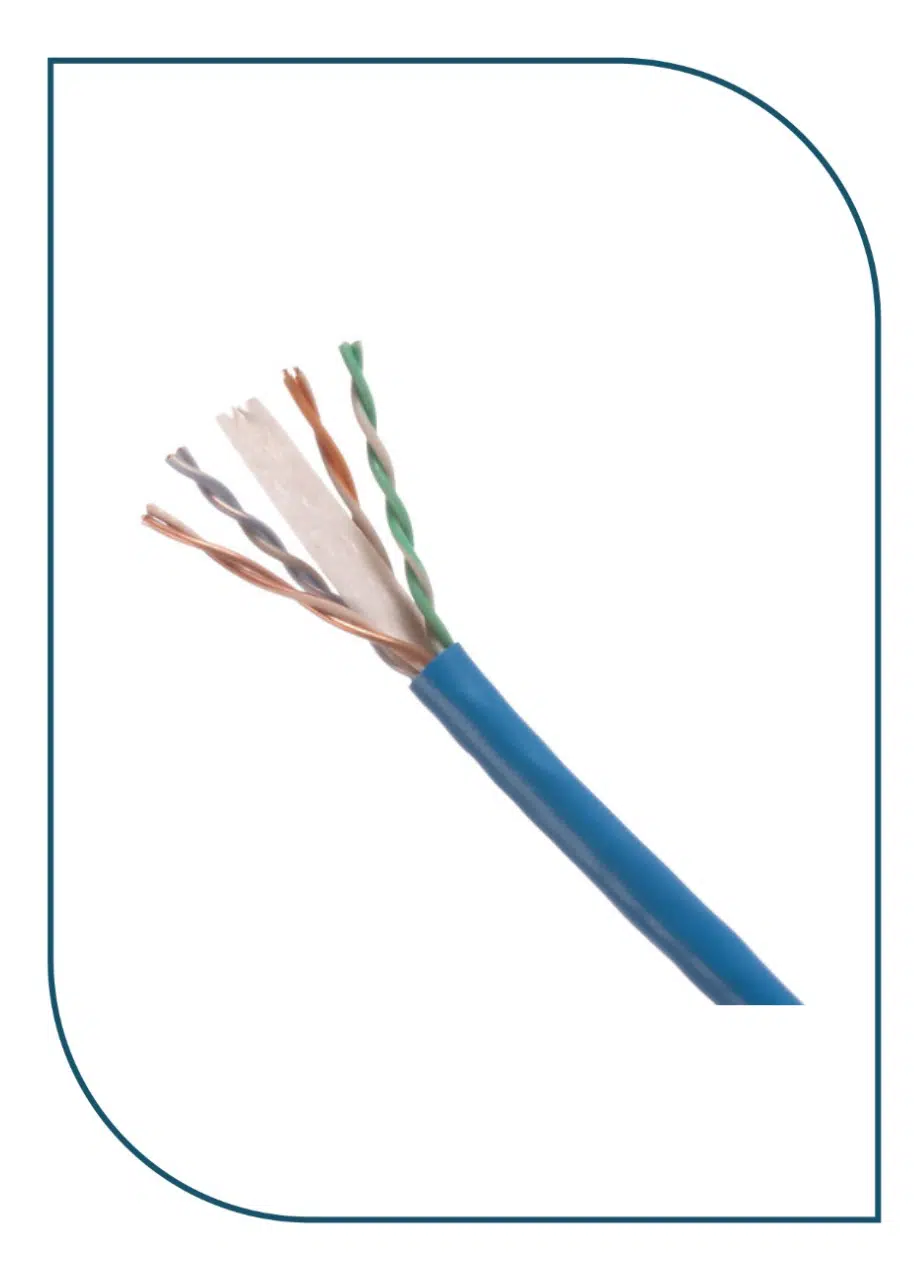

The Panduit NUC6C04BU NK6™ Copper Cable is a premium Category 6 UTP cable designed for high-performance structured cabling systems in commercial and enterprise environments. Manufactured with four twisted pairs of solid 24 AWG bare copper conductors and an integrated pair divider, the cable minimizes crosstalk while providing reliable transmission performance up to 250 MHz.
Engineered to meet ANSI/TIA-568.2-D and ISO/IEC 11801 Class E standards, the cable delivers dependable Gigabit Ethernet connectivity for modern LAN infrastructures. It supports data, voice, video, IP surveillance, wireless access points, and VoIP deployments while remaining fully compatible with IEEE 802.3af, 802.3at, and 802.3bt Power over Ethernet (PoE) applications.
The blue CM-rated PVC jacket provides flexibility and durability for indoor installations, while the easy pay-out carton simplifies cable deployment and reduces installation time. The Panduit NK6™ cable is an excellent choice for offices, enterprise buildings, educational institutions, healthcare facilities, and data centers requiring reliable, standards-compliant network infrastructure.
| Specification | Details |
|---|---|
| Model | NUC6C04BU |
| Product Family | Panduit NetKey™ (NK6™) |
| Brand | Panduit |
| Product Type | Bulk Copper Network Cable |
| Cable Category | Category 6 (Cat6) |
| Cable Construction | UTP (Unshielded Twisted Pair) |
| Number of Pairs | 4 Pairs |
| Conductor Material | Solid Bare Copper |
| Conductor Size | 24 AWG |
| Cable Length | 305 Meters (1000 ft) |
| Jacket Color | Blue |
| Jacket Type | CM (PVC) |
| Insulation Material | High-Density Polyethylene (HDPE) |
| Separator | Integrated Pair Divider (Spline) |
| Bandwidth | Up to 250 MHz |
| Ethernet Support | 10/100/1000BASE-T Gigabit Ethernet |
| PoE Support | IEEE 802.3af, 802.3at & 802.3bt Compatible |
| Standards Compliance | ANSI/TIA-568.2-D, ISO/IEC 11801 Class E, IEC 61156 |
| Operating Temperature | -20°C to +60°C |

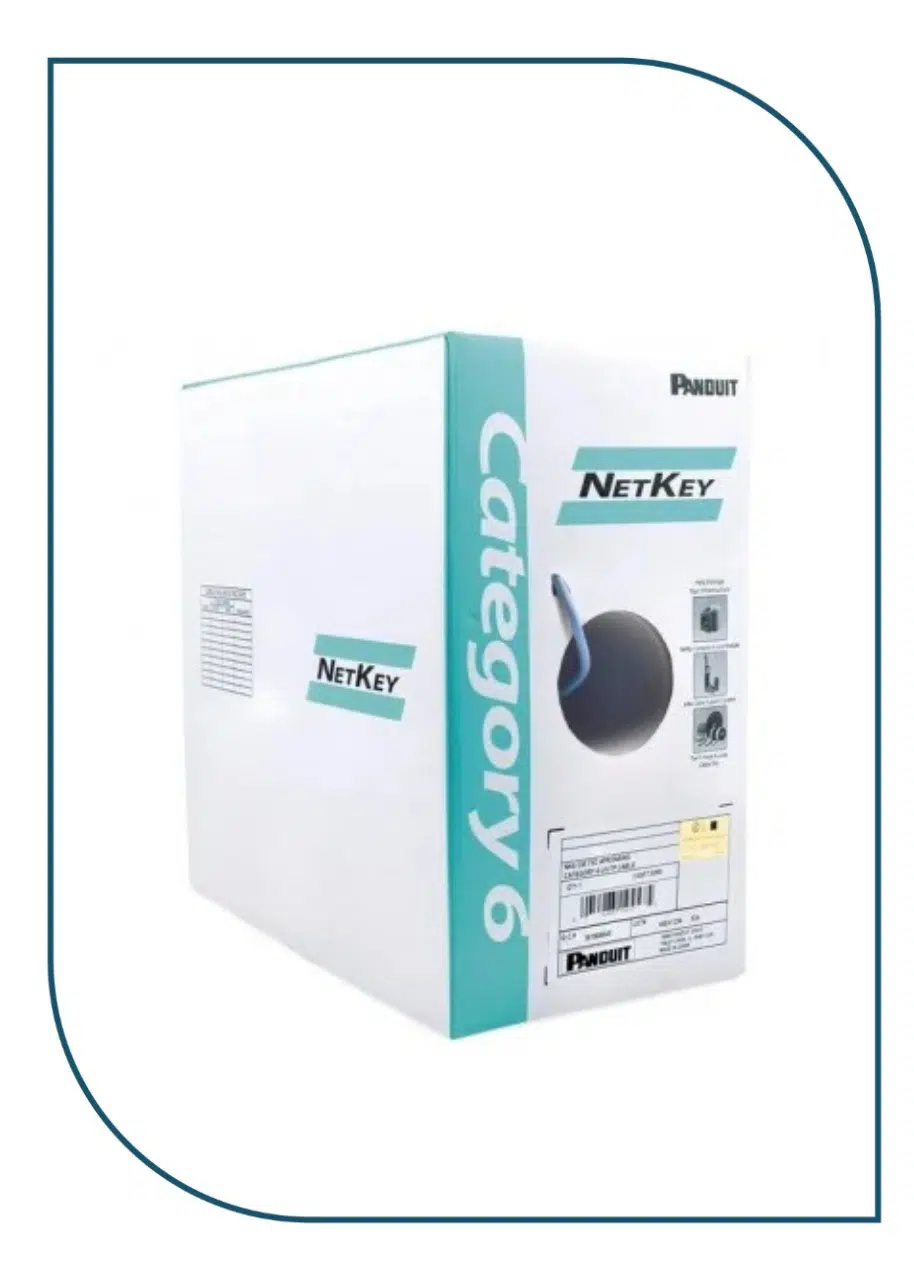

| Packaging | Easy Pay-Out Carton |
| Installation | Indoor |
| Applications | Structured Cabling, LAN Networks, Offices, Enterprise Networks, Patch Panels, Data Centers |
