Description
NWR-6U-6045-BL-GL
Description

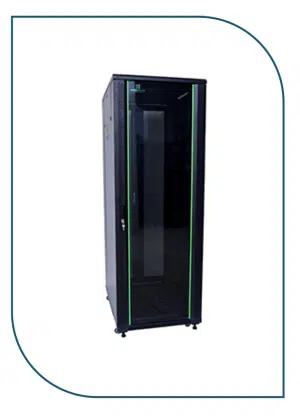

Product details D-Link Wall Mount Racks specially designed for small Networking, Domestic application, Audio Video, Telecom and Lab applications. Racks are fabricated out of CRCA steel, CNC programmed, punched, bended, welded and Powder coated with highest quality standards. Configuration for standard racks are integrated with side panels and top cover with fan mounting provision, while front glass with lock & key provides the visibility & security, rear side of the Rack is provided with the wall mounting slots for your equipment. Racks are available from 4U to 15U Variants with 450mm and 600mm deep configuration.
Standard:-
Comply with ANSI/EIA RS-310-D, DIN41497 part 1, IEC297-2,
DIN41494 part 7, GBIT3047.2-92 standard.
Features & Benefits:-
• 19″ width standard
• Removable Side Panels, side locks optional;
• Knock off hole for entering cable on both top
cover, bottom panel,real panel
• Turning angle of front door is over 180 degrees
• Easy Mounting installation
• Fan,PDU and shelf available as optional
• Flat packaging to save shipping spaces
Loading Capacity:-
80KG
Degree of Protection:-
IP20
Material:-
SPCC Cold Rolled Steel
Thickness:2.0mm-1.5mm-1.2mm
Surface Finish:-
Powder coating
