Description
NS-501GL9U6045
Features

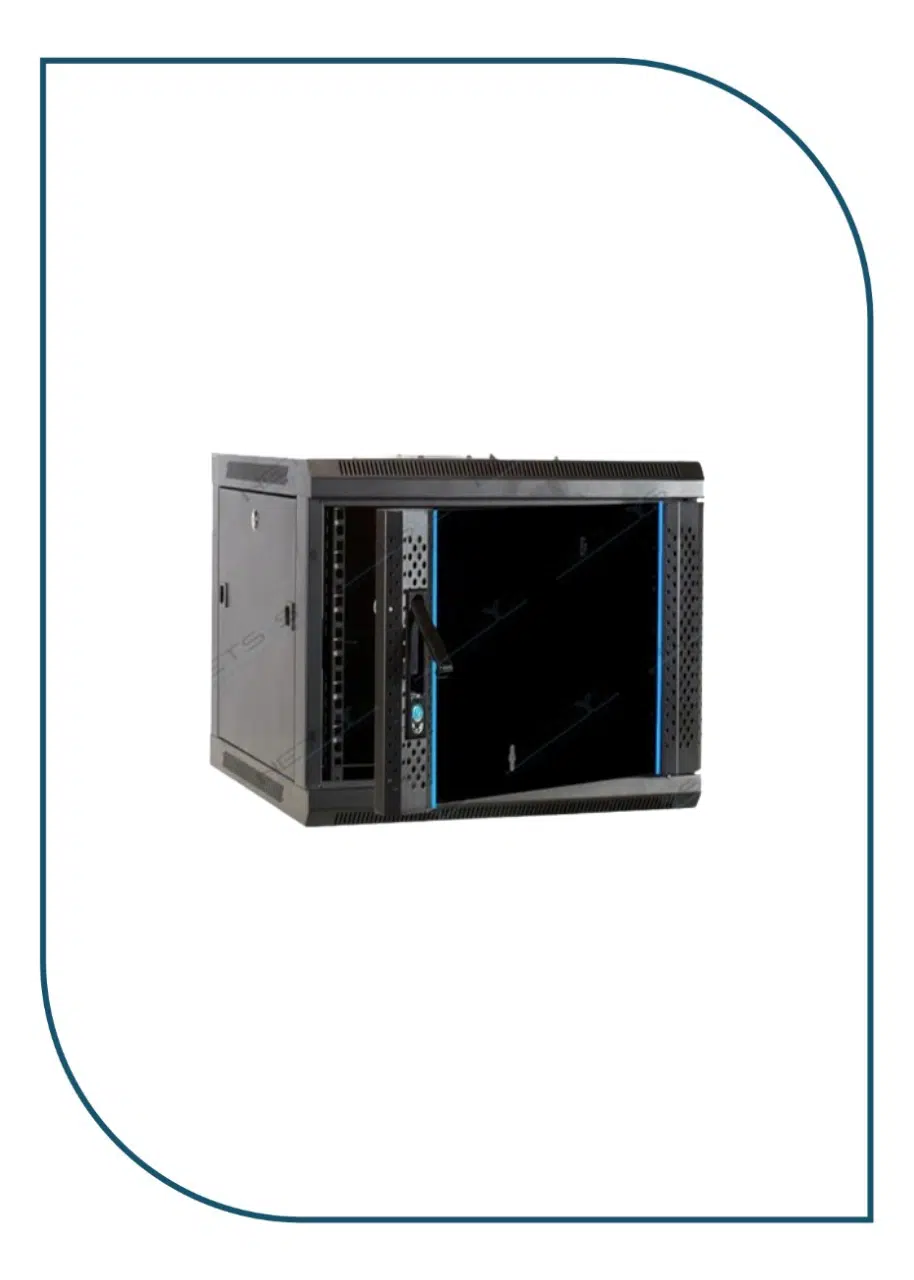

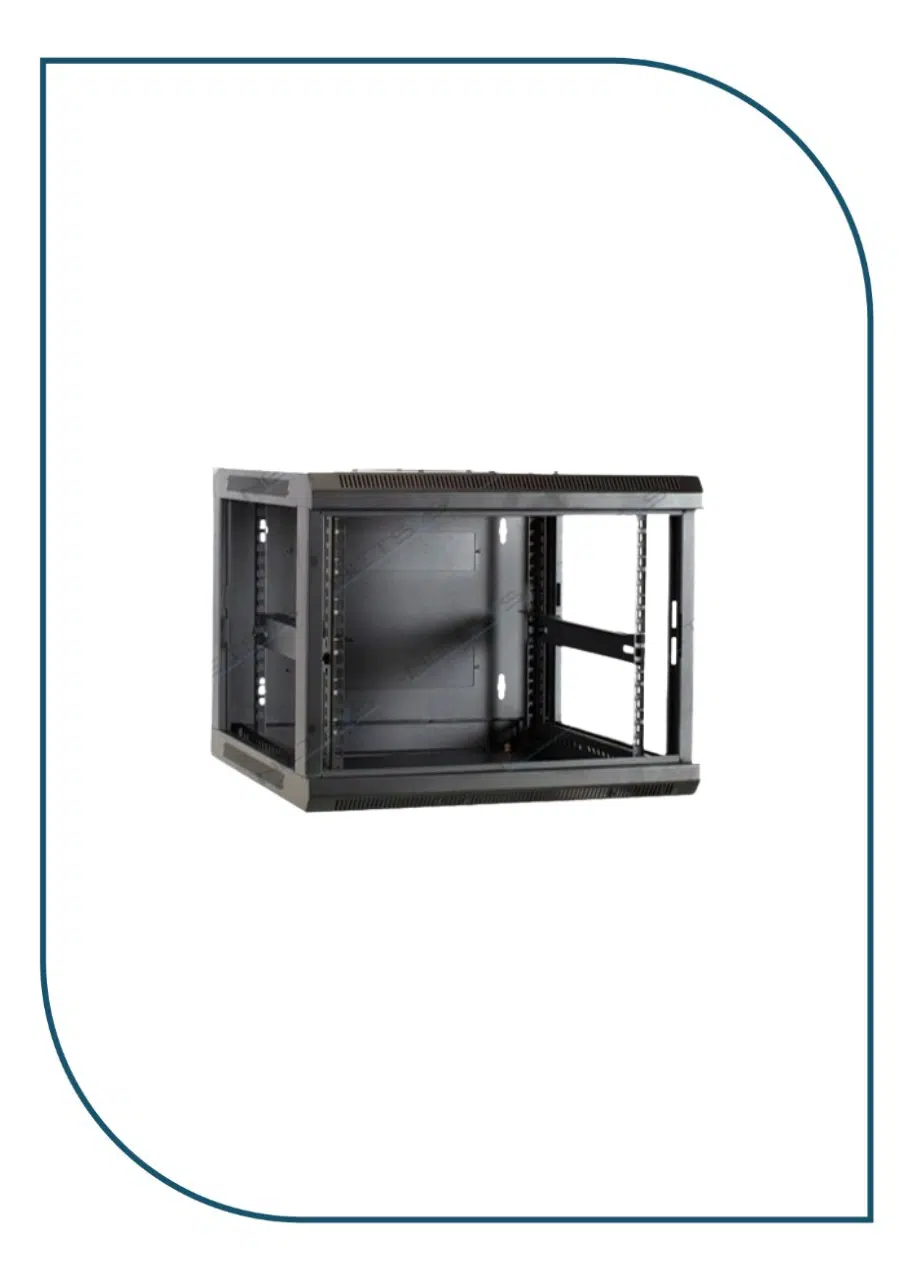

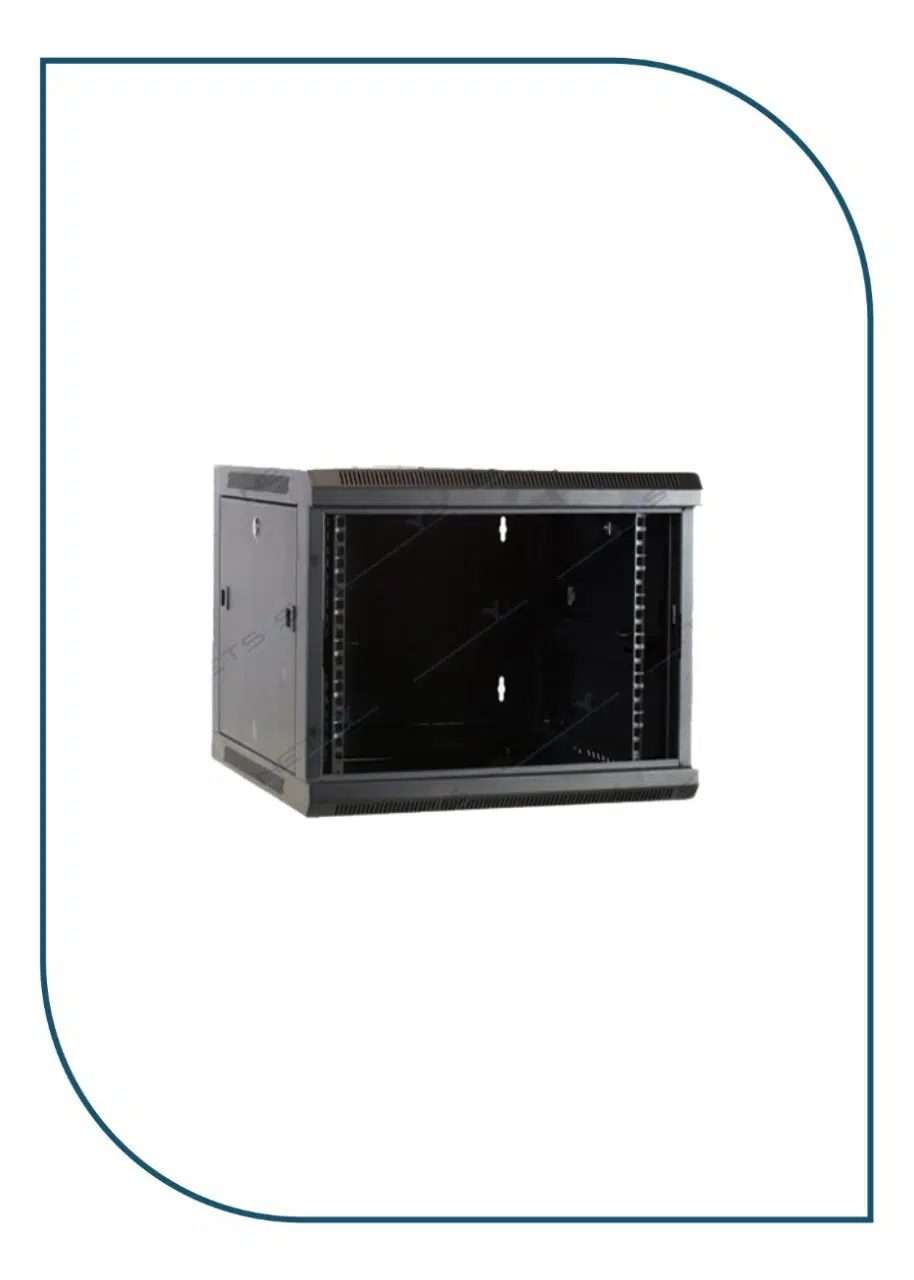

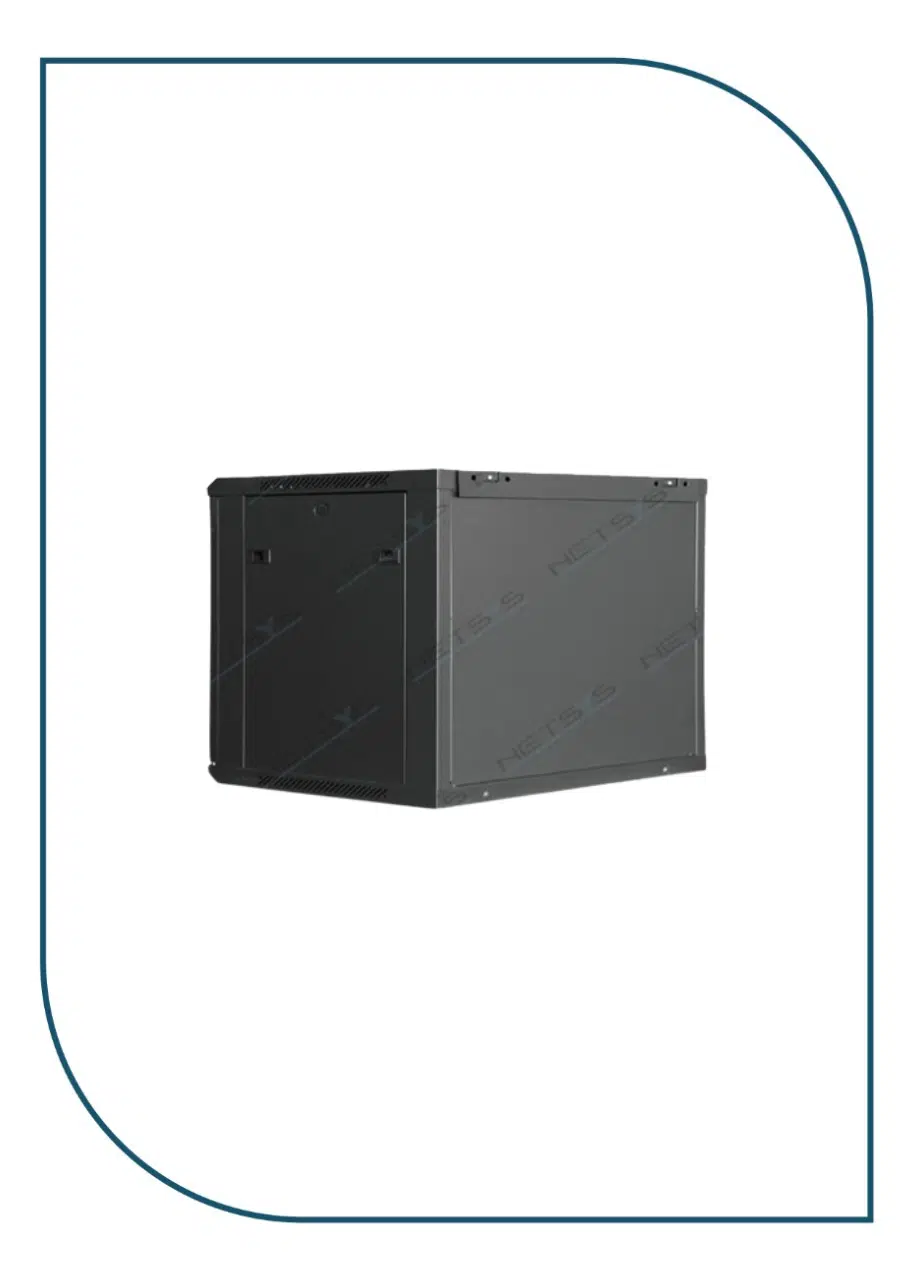

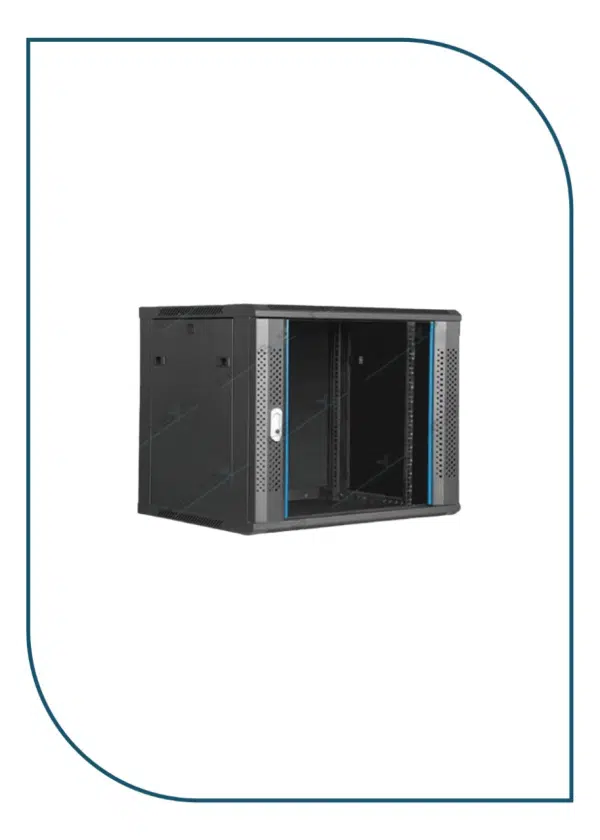

- Single section wall mounted cabinet, front door available for many choices.
- Advanced technology, precise size.
- Reliable structure, static loading capacity: 60KG.
- Quick and easy wall mounted, 19 standard installation.
- Total welded structure.
- 120MM size fan could be installed at top of cabinet.
- Removable side door, can fix lock. Cable entry from top and bottom.
- IP Degrees: IP20.
- Flexible packing methods allows for convenient stocking and end user delivery.
- Multiple sizes available.
- Customization requests welcome.
Standard and Material
- Comply with ANSI/EIA; RS-310-D; IEC297-2; DIN41491: PART1; DIN41494: PART7; GB/T3047.2-92 standard, compatible with 19 international standard, metric system and ETSI standard.
Surface Treatment
- Degreasing, pickling, phosphating, powder coating.
Material
- SPCC cold rolled steel.
Thickness
- Mounting profile 1.5mm; the others: 1.0 to 1.2mm.
Color
- Body color: RAL9004 (black); RAL7035 (grey).
