Description
NS-501GL6U6060
FEATURES
-

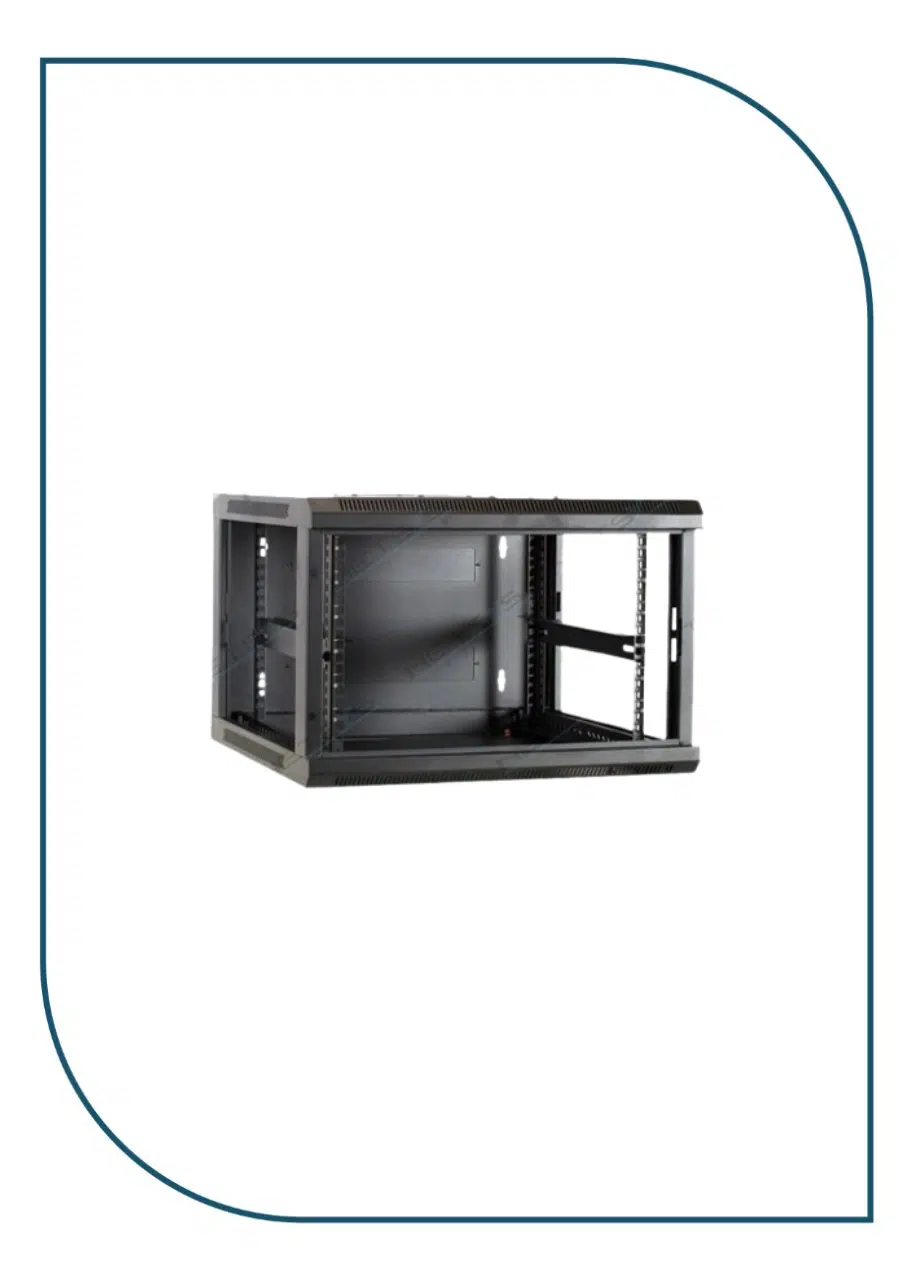

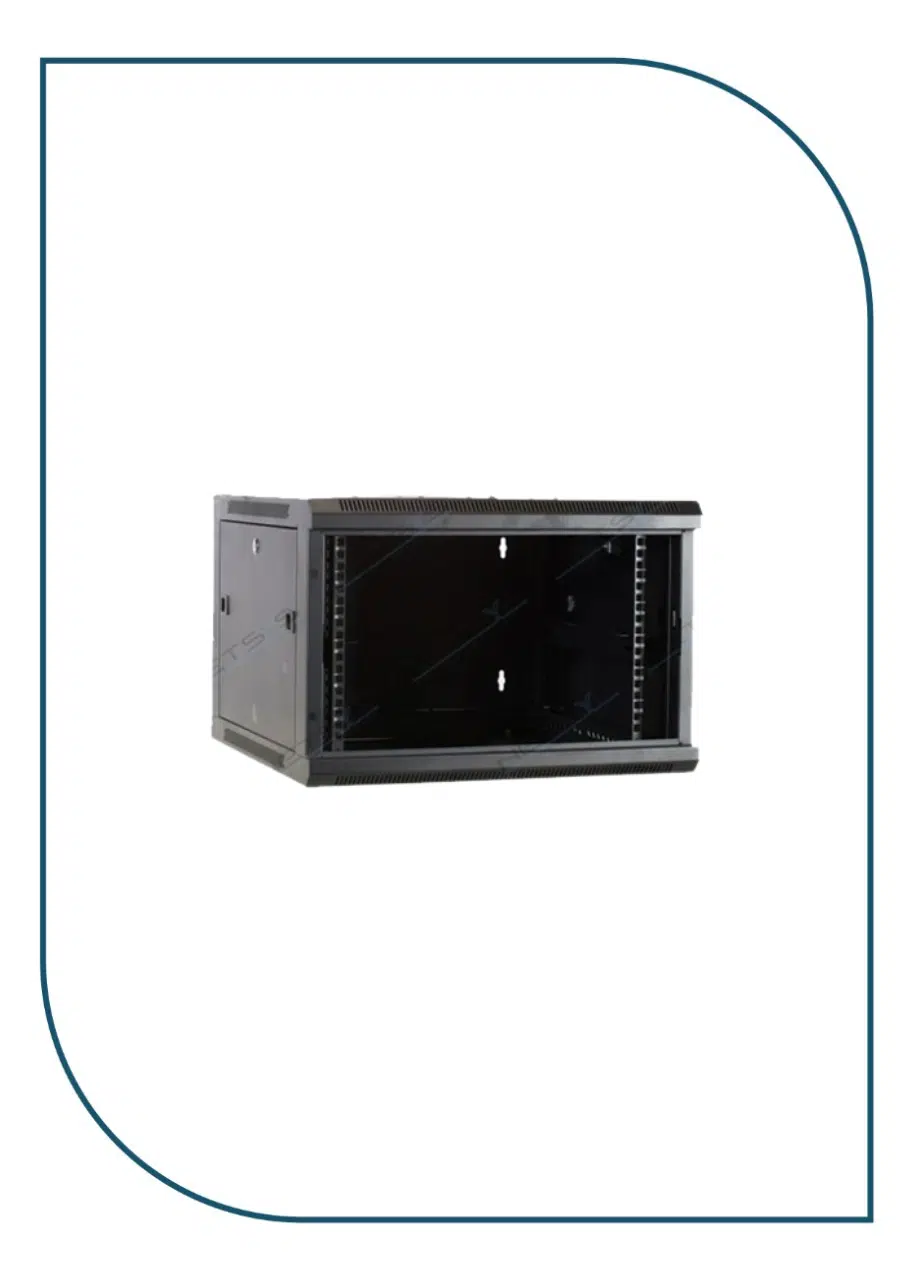

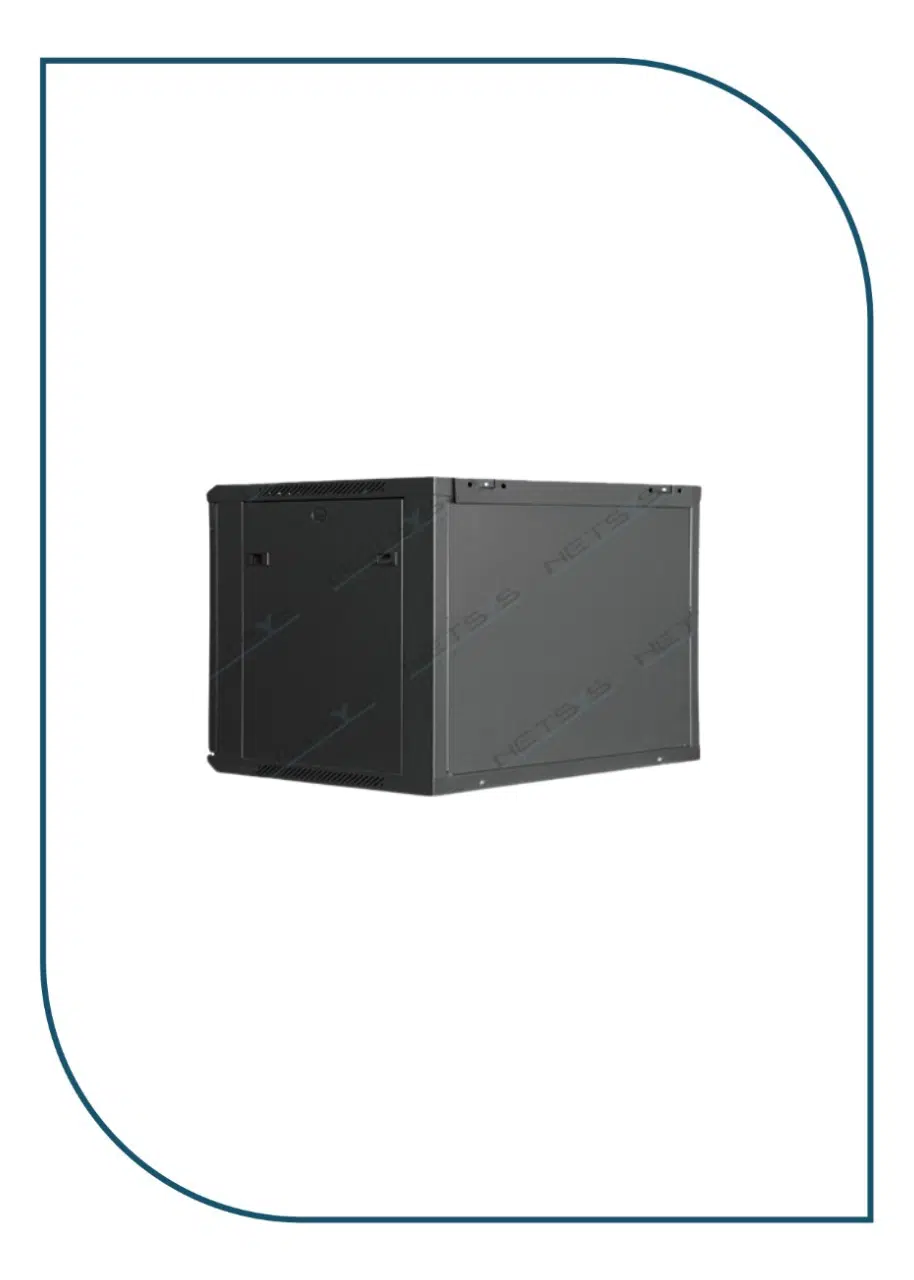

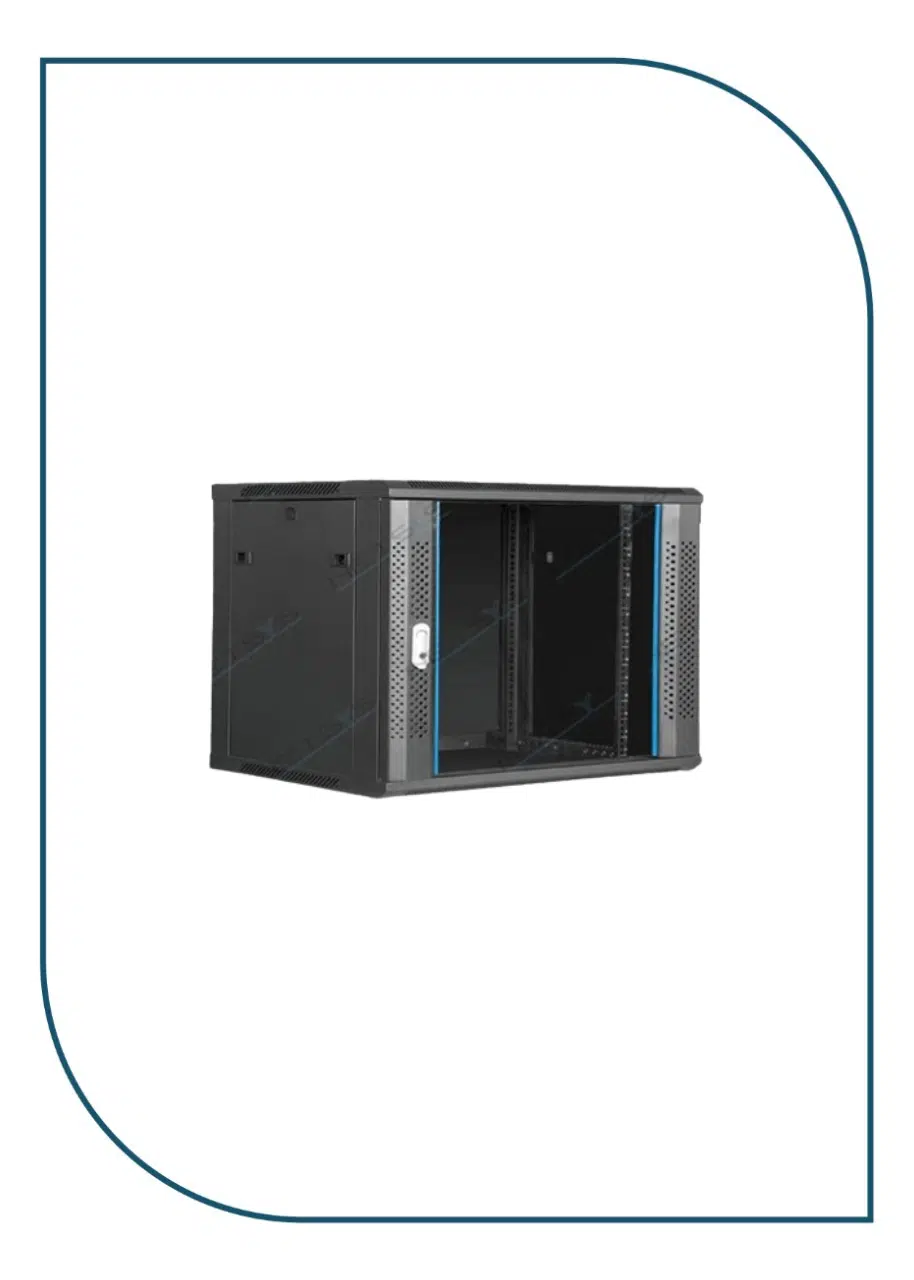

Single section wall mounted cabinet, front door available for many choices.
-
Advanced technology, precise size.
-
Reliable structure, static loading capacity: 60KG.
-
Quick and easy wall mounted, 19″ standard installation.
-
Total welded structure.
-
120MM size fan could be installed at top of cabinet.
-

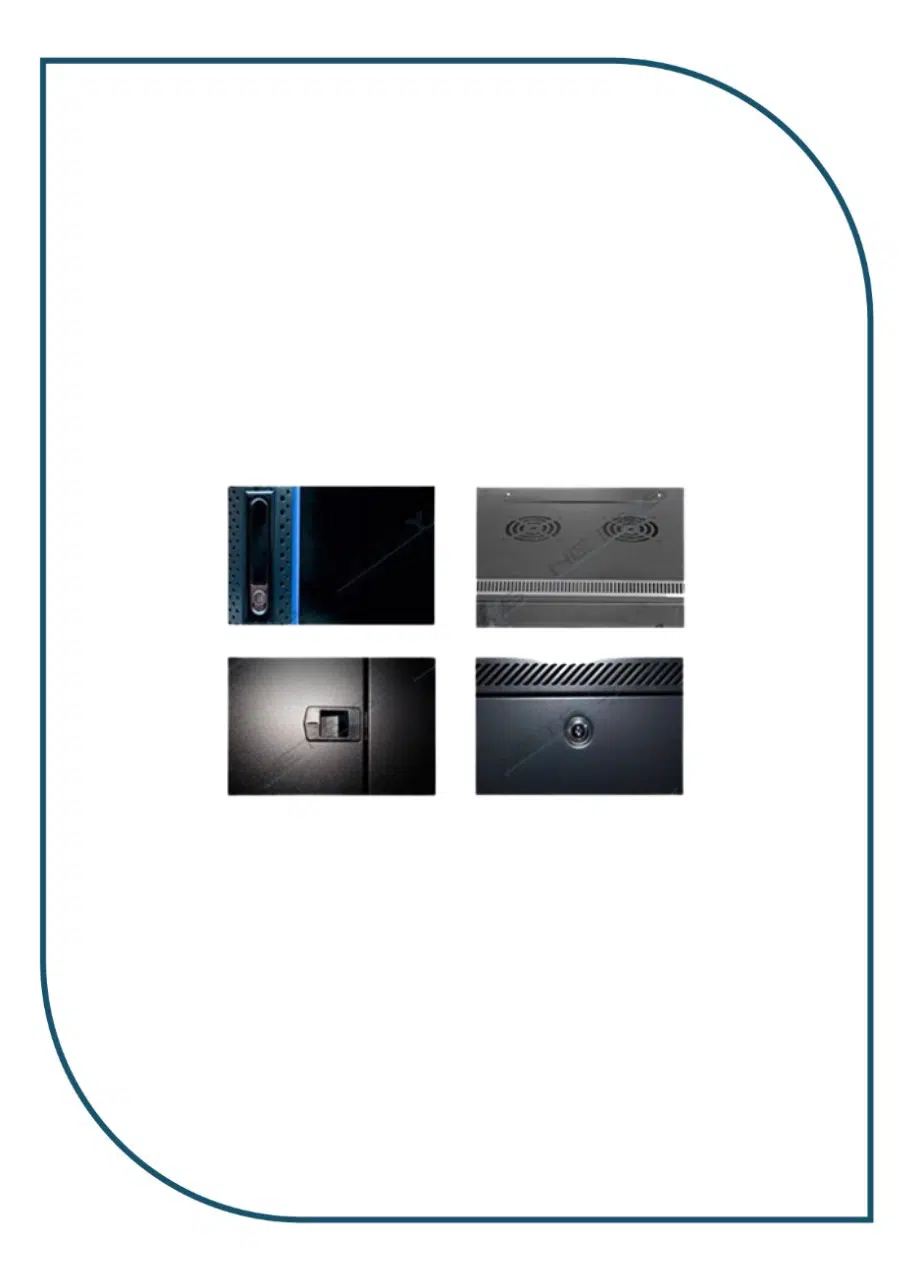

Removable side door, can fix lock. Cable entry from top and bottom.
-
IP Degrees: IP20.
-
Flexible packing methods allows for convenient stocking and end user delivery.
-
Multiple sizes available.
-
Customization requests welcome.
STANDARD AND MATERIAL
-
Comply with ANSI/EIA; RS-310-D; IEC297-2; DIN41491: PART1; DIN41494: PART7; GB/T3047.2-92.
-
Standard, compatible with 19″ international Standard, metric system and ETSI standard.
SURFACE TREATMENT
-
Degreasing, pickling, phosphating, powder coating.
MATERIAL
-
SPCC cold rolled steel.
THICKNESS
-
Mounting profile 1.5mm; the others: 1.0 to 1.2mm.
COLOR
-
Body color: RAL9004 (black); RAL7035.
