Description

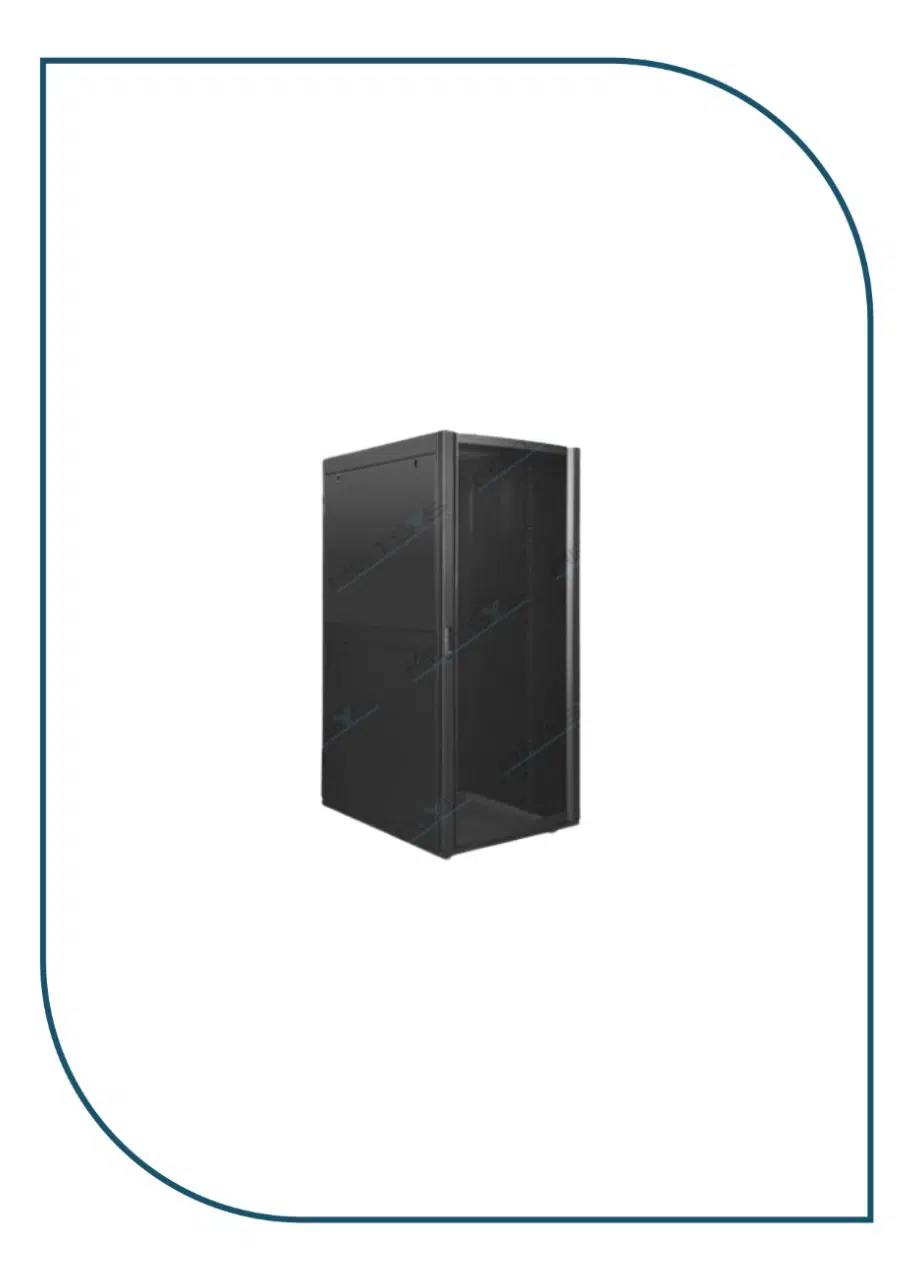

NS-503VN42U80120
FEATURES
-
Reliable structure, static loading capacity: 800KGs. (Optional castors and plinth).
-
Adjustable feet and heavy duty castors are available simultaneously, moving conveniently and fixing reliably.
-
Baying together easily, quickly, efficiently, and firmly.
-
High density vented front door and rear doors, meeting the requirements of mechanical protection and ventilation.
-
Optional cable entry on top cover and bottom panel. Front, rear door and side panel can be removed facility, the bottom has the function of ventilation and rat-proof.
-
Upon customer request facility installation is adjustable between 19inch-27inch, 19inch installation the front will add a vertical cable management.
-
Varies optional accessories, reliable quality.
-
Optional opening hole and varies specification upon customers’ special requirements.
-
8 heights: 18U, 22U, 24U, 27U, 32U, 37U, 42U, 47U (Can customize).
-
4 depth option: 600, 800, 900 and 1000mm.
-
Flexible packing methods allows for convenient stocking and end user delivery.
-
Multiple sizes available.
-
Customization requests welcome.
STANDARD AND MATERIAL
-
Comply with
-
ANSI/EIA; RS-310-D; IEC297-2; DIN41494: PART1; DIN41494: PART7; GB/T3047.2-92 standard;
-
19″ international standard, metric system and ETSI standard.
-
SURFACE TREATMENT
-
degreasing, pickling, phosphoric, powder coating.
