Description

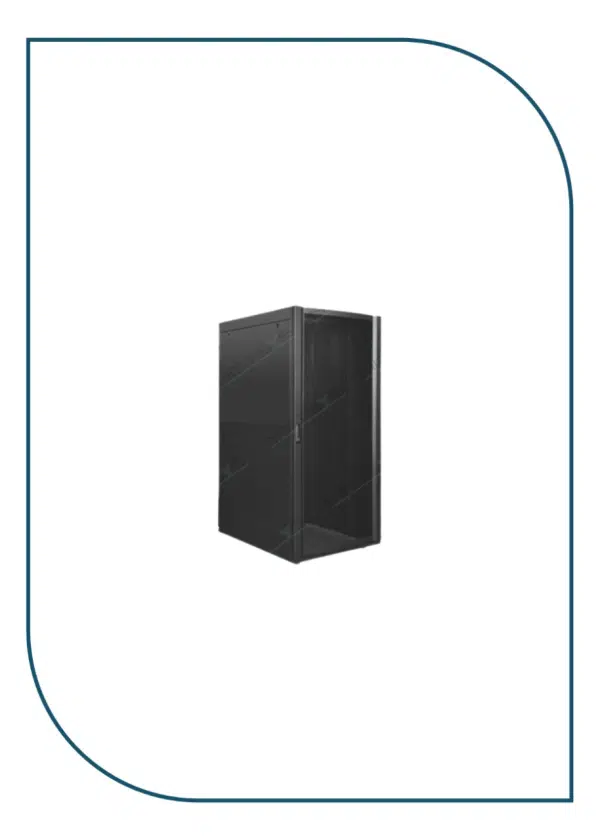

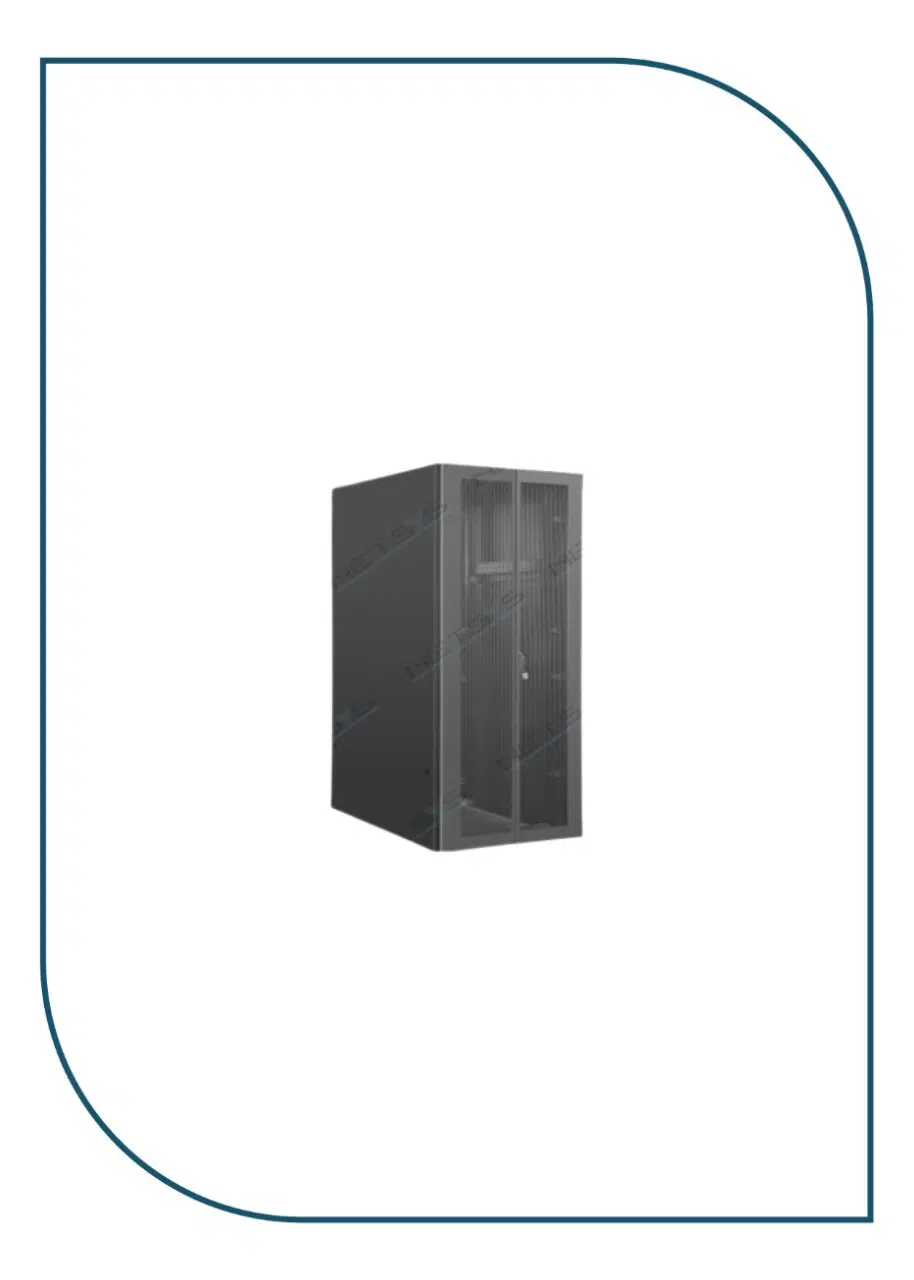

NS-503VN18U60100
Features
- Best sales and famous model floor rack.
- Reliable structure, static loading capacity: 800KGs (Optional castors and plinth).
- Adjustable feet and heavy duty castors are available simultaneously, moving conveniently and fixing reliably.
- Baying together easily, quickly, efficiently and firmly.
- High density vented front door and rear doors, meeting the requirements of mechanical protection and ventilation.
- Optional cable entry on top cover and bottom panel. Front, rear door and side panel can be removed facility, the bottom has the function of ventilation and rat-proof.
- Varies optional accessories, reliable quality.
- Optional opening hole and varies specification upon customers’ special requirements.
- 7 heights – 18U, 22U, 27U, 32U, 37U, 42U, 47U (Can customize).
- Many depth options – 600/800/900/960/1000/1100/1200mm.
- Flexible packing methods allows for convenient stocking and end user delivery.
- Multiple sizes available.
- Customization requests welcome.
Standard and Material
- Comply with ANSI/EIA; RS-310-D; IEC297-2; DIN41491: PART1; DIN41494: PART7; GB/T3047.2-92 standard, compatible with 19 international standard, metric system and ETSI standard.
Surface Treatment
- Degreasing, pickling, phosphating, powder coating.
Material
- SPCC cold rolled steel.
Thickness
- Mounting profile 2.0mm; the others: 1.0-1.2mm.
Color
- Body color: RAL9004 (black); RAL7035 (grey).
