Description

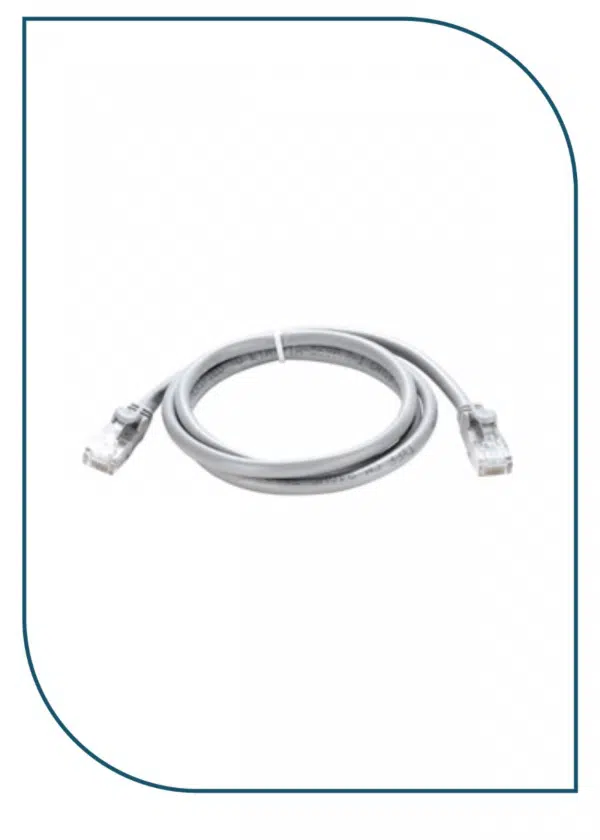

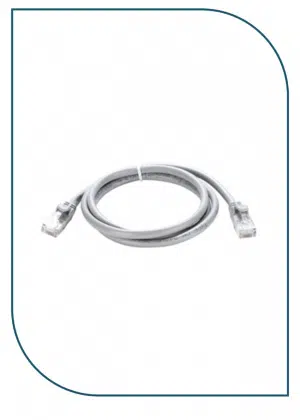

NCB-6AUGRYR1-1
SPECIFICATIONS
- 4 Pairs Unshielded Twisted Pair (UTP) Cable
- Conductor Metal: Bare Copper
- Color Code: Gray
- Conductor: 24 AWG
- Insulation Material: HD-PE
- Jacket Material: PVC UL94V-0
- Heat-resistant: 60OC minimum (Temperature limited)
- Flame property: The purpose of the vertical flame test is to screen out flammable wires. It follows the VW-1 (UL) and FT-1 (CSA) standards.
MODULAR CONNECTOR/PLUG
- RJ-45 8P for Transparence color
- Gold plated: 30U”
- Contact blade: Phosphor Bronze
- Temperature range: -10 ~ 80o C
- Dielectric withstanding voltage: 500V AC
- Insulation resistance: 35M Ohm (max.)
- Durability: 750 matching cycles
- Cable-to-plug tensile strength: 20lbs (89N) (min.)
- UL applications: 250V AC, 2A (max.) • Polycarbonate (PC) UL94-V-0
APPLICATION
- 10BASE-T, 100BASE-TX Fast Ethernet, 1000BASE-T (IEEE802.3)
- 100VG-AnyLAN (IEEE802.12)
- 550 MHz Broadband Video
- Voice, T1, ISDN
- 155/ 622 Mbps ATM
- Power over Ethernet (POE)
