Description
S110-16T2S

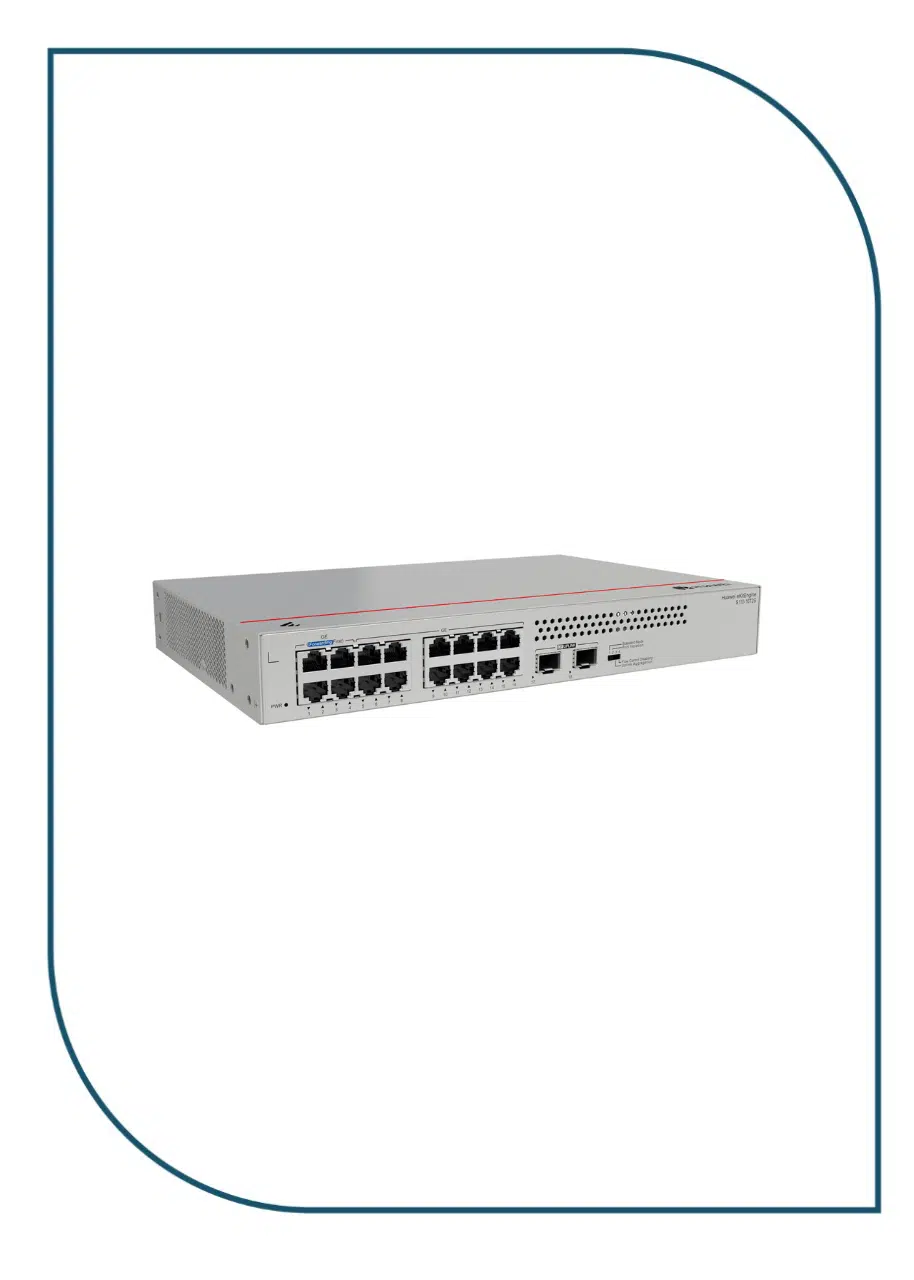

The Huawei S110-16T2S (eKitEngine series) is an unmanaged gigabit Ethernet switch designed for SOHO and SMB networks that need simple, reliable wired connectivity with flexible uplink options.

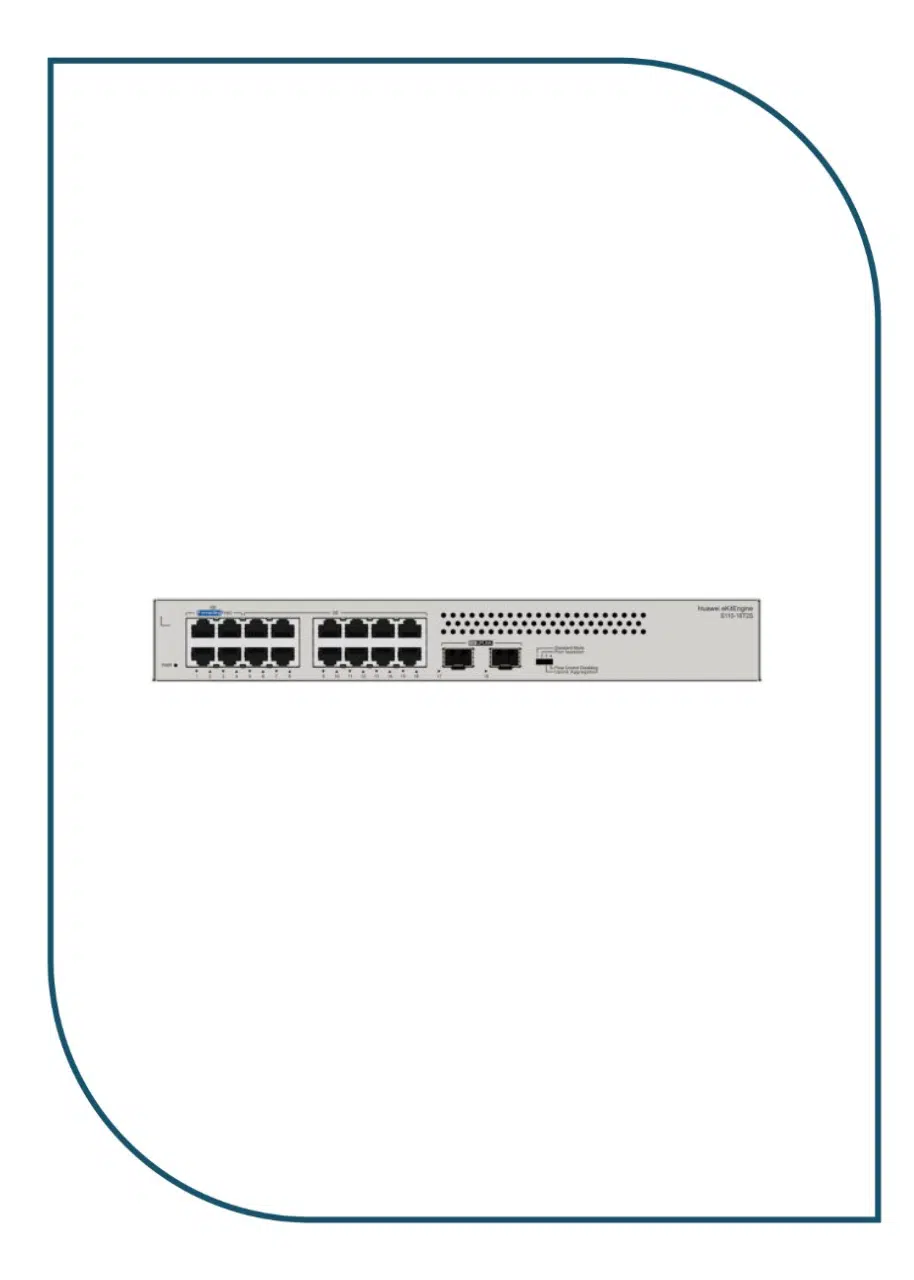

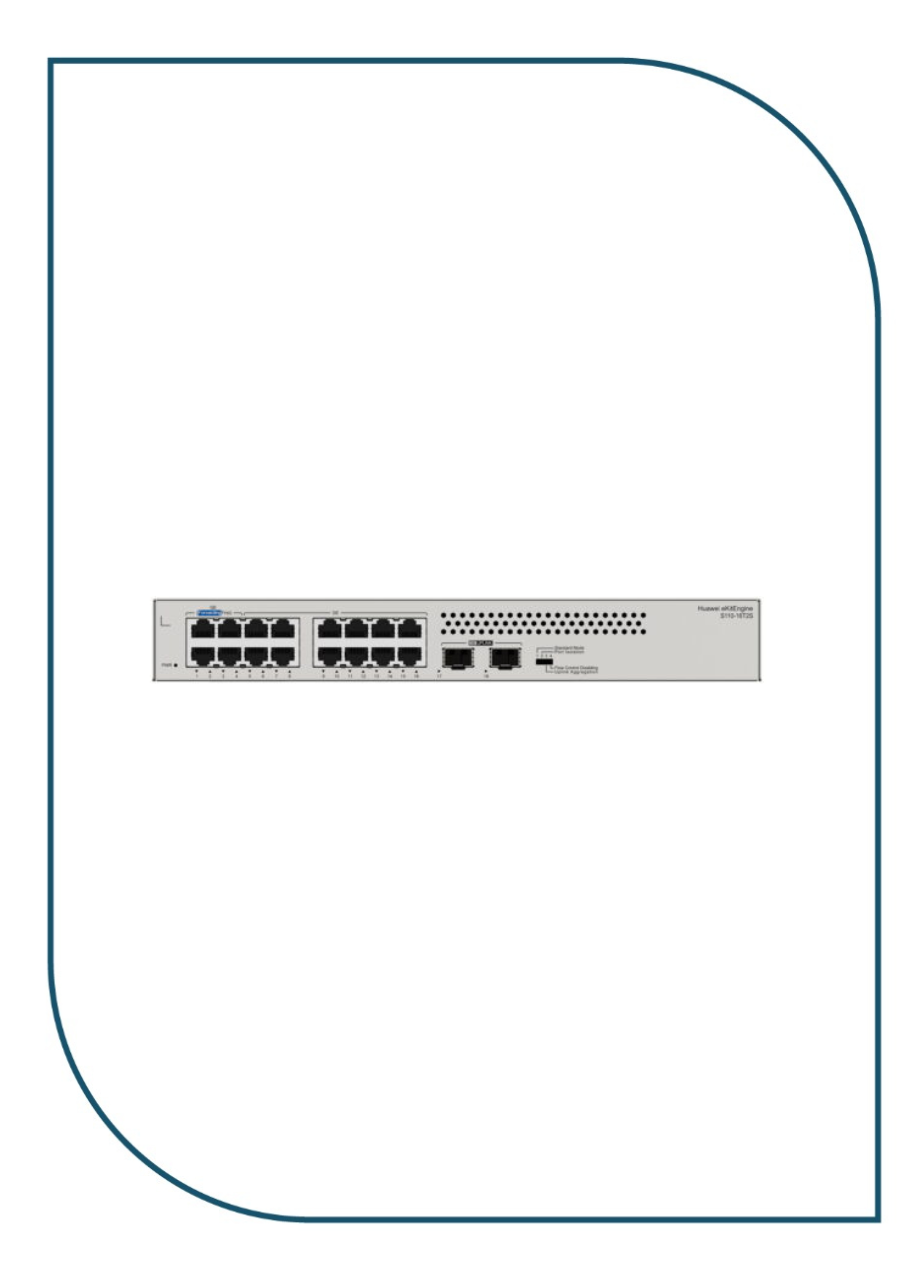

It features 16 × Gigabit Ethernet RJ45 ports for connecting devices like computers and printers, plus 2 × GE SFP ports for fiber uplinks or longer connectivity distances.
Plug-and-play operation means no configuration is required, and the fanless design ensures silent operation in offices and workspaces.
| Ports |
16 × 10/100/1000BASE-T (RJ45) + 2 × 1GE SFP |
| Switching Capacity |
36Gbps |
| Packet Forwarding Rate |
26.78Mpps |
| MAC Address Table |
8K entries |
| Switch Type |
Unmanaged (Plug & Play) |
| Power Supply |
Built-in AC Power Supply |
| Maximum Power Consumption |
11W |
| Cooling |
Fanless (Silent Operation) |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Humidity |
5% to 95% (Non-condensing) |
| Form Factor |
Desktop or Rack-mountable (1U) |
| Dimensions (W x D x H) |
294mm × 180mm × 43.6mm |
| Special Features |
Auto MDI/MDIX, Plug & Play, Silent, Gigabit Performance |
