Description

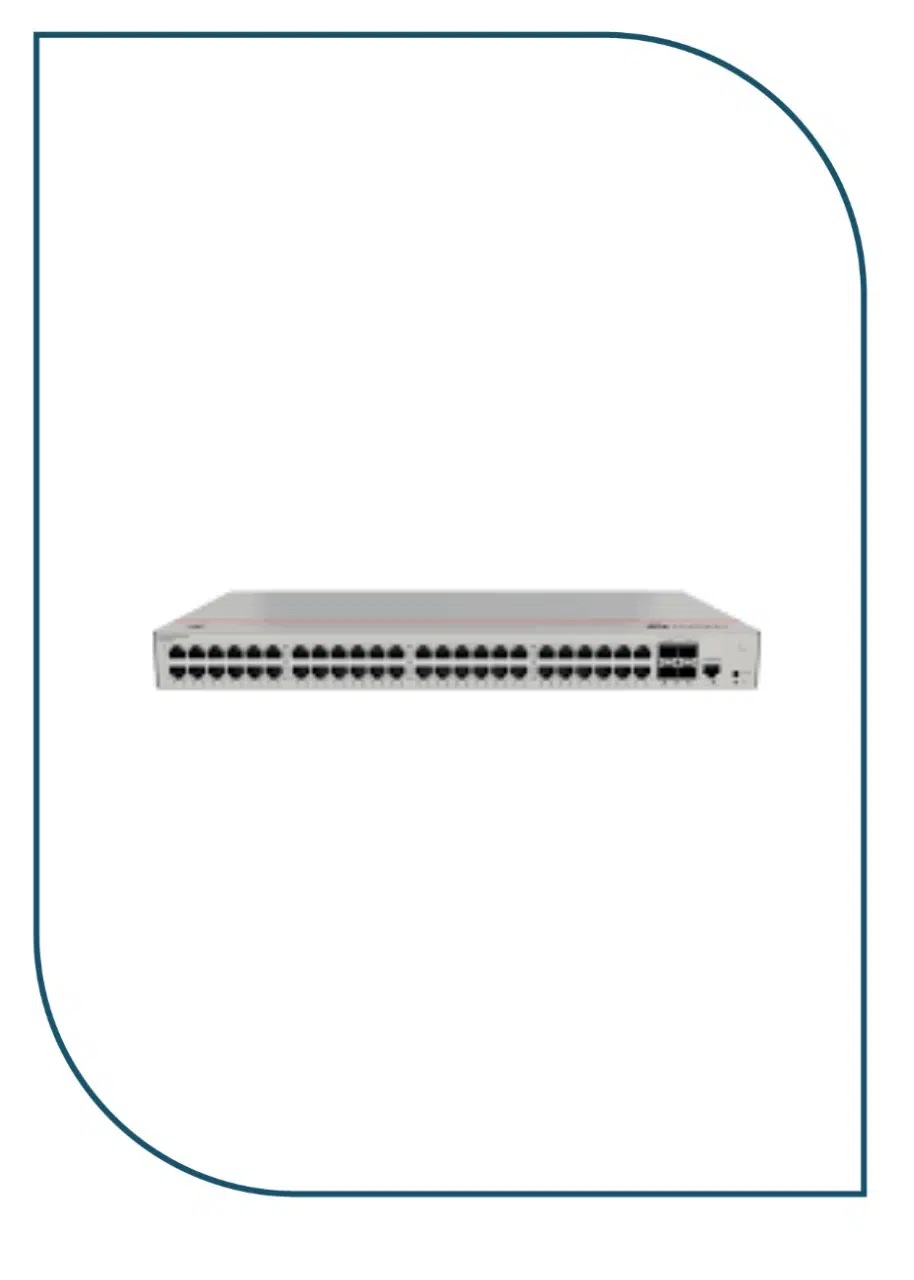

The Huawei eKitEngine S220-48P4X is a Layer 2 Smart Managed Gigabit PoE+ switch designed for small and medium-sized businesses, enterprise offices, hotels, schools, retail stores, healthcare facilities, and IP surveillance networks. It features 48 Gigabit PoE+ RJ45 ports and 4 × 10GE SFP+ uplink ports, providing reliable connectivity and high-speed uplinks for bandwidth-intensive applications.
With a 380W PoE power budget, the switch can simultaneously power IP cameras, wireless access points, VoIP phones, and other IEEE 802.3af/at compliant devices over Ethernet, simplifying network deployment and reducing installation costs.
The S220-48P4X supports advanced Layer 2 networking features including VLAN, QoS, Link Aggregation, STP/RSTP/MSTP, ERPS ring protection, IGMP Snooping, and IPv6. It also offers multiple management options through Web GUI, CLI, SNMP, and the Huawei eKit App, enabling simple deployment and centralized network administration.

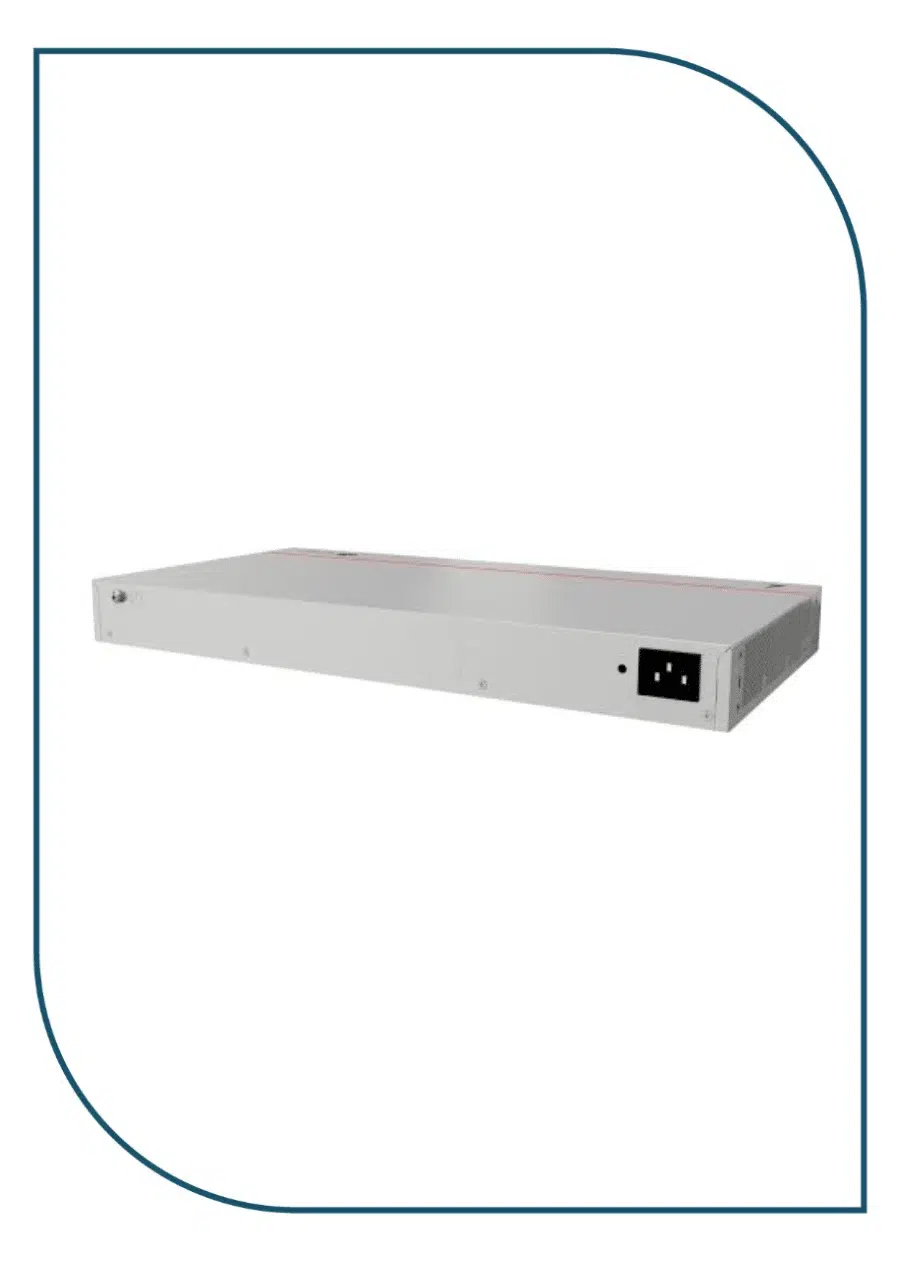

Its compact 1U rack-mount design, built-in AC power supply, intelligent fan control, and metal chassis make it a dependable solution for modern business networks requiring high performance, easy management, and reliable PoE connectivity.
Specifications
| Feature | Specification |
|---|---|
| Model | Huawei eKitEngine S220-48P4X |
| Switch Type | Layer 2 Smart Managed PoE+ Switch |
| Downlink Ports | 48 × 10/100/1000BASE-T RJ45 (PoE+) |
| Uplink Ports | 4 × 10GE SFP+ |
| PoE Standard | IEEE 802.3af / IEEE 802.3at (PoE+) |
| Total PoE Budget | 380 W |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 131 Mpps |
| MAC Address Table | 16K Entries |
| VLAN | Up to 4K VLANs |
| QoS | Supported |
| Link Aggregation | Supported |
| Spanning Tree | STP / RSTP / MSTP |
| Ring Protection | ERPS |
| Multicast | IGMP Snooping |
| IPv6 | Supported |
| Management | Web GUI, CLI, SNMP, Huawei eKit App |
| Power Supply | Built-in AC |
| Cooling | Intelligent Fan Cooling (2 Built-in Fans) |
| Mounting | Rack Mount, Desktop, Wall Mount |
| Chassis Material | Metal |
| Dimensions | 43.6 × 442 × 220 mm |
| Weight | 3.24 kg |
| Operating Temperature | -5°C to +50°C |
