Description

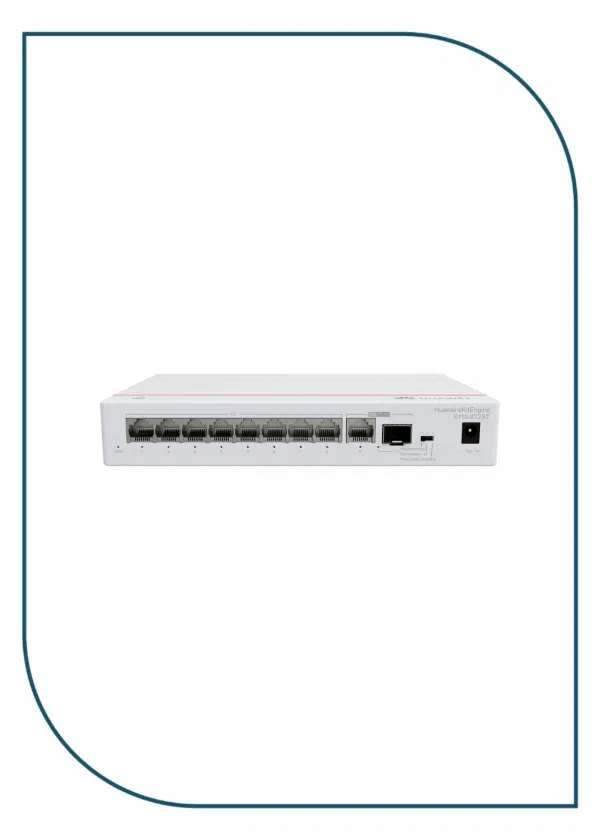

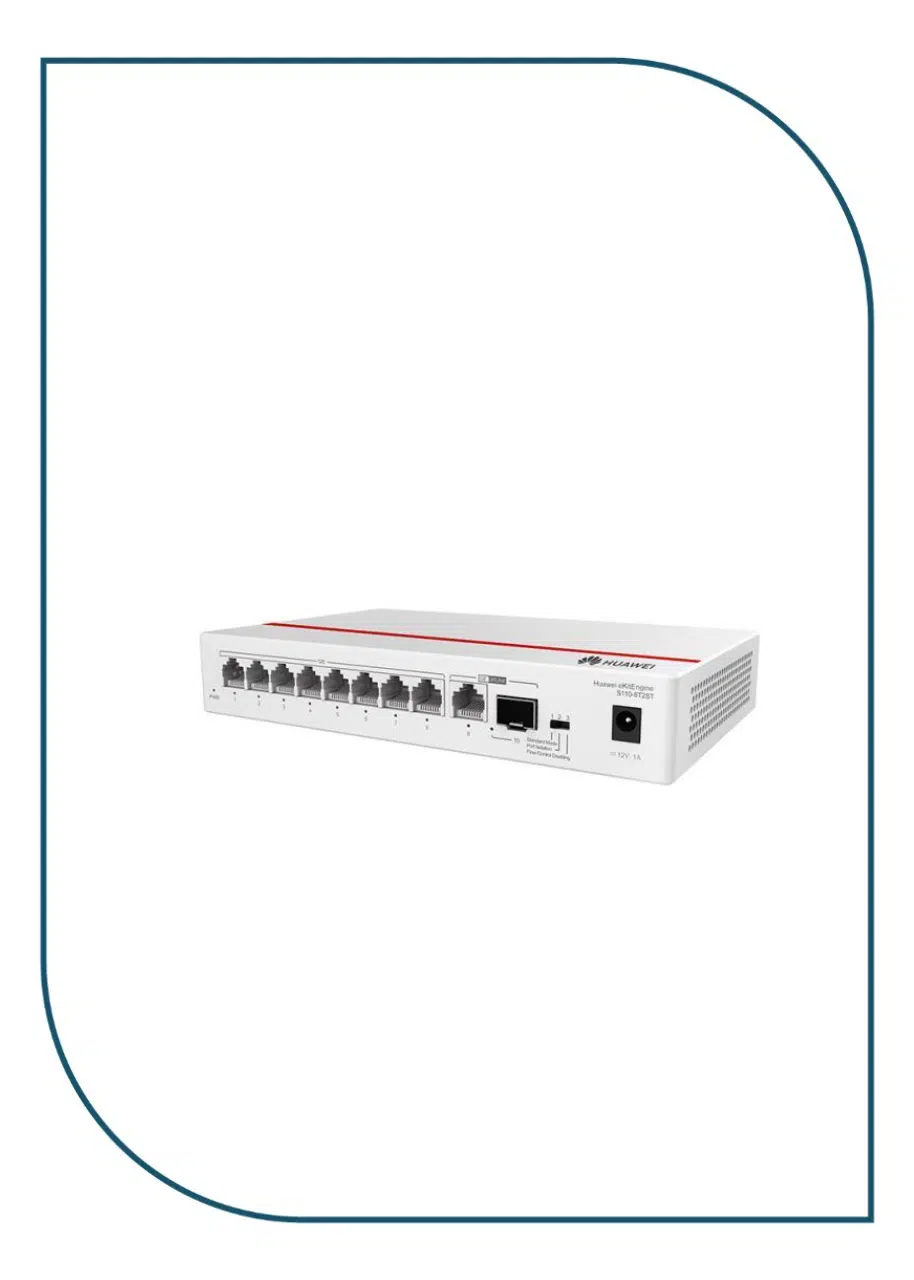

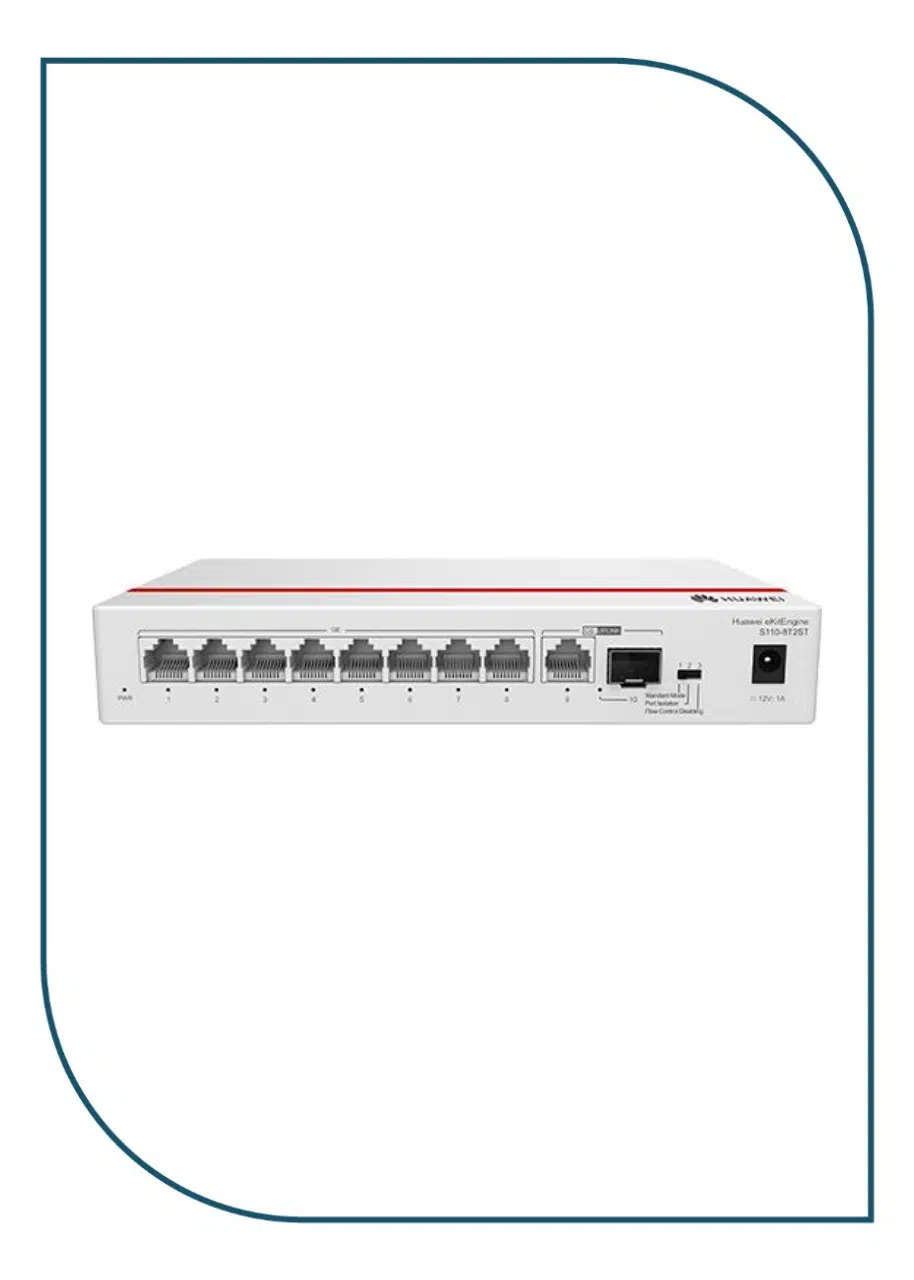

The Huawei eKitEngine S110-8T2ST is a compact Gigabit Unmanaged Ethernet Switch designed for small businesses, home offices, retail stores, cafés, and branch offices. It features 8 Gigabit Ethernet RJ45 ports, 1 Gigabit RJ45 uplink port, and 1 Gigabit SFP uplink port, providing flexible copper and fiber connectivity for reliable network expansion.
As a plug-and-play unmanaged switch, the S110-8T2ST requires no configuration or software installation. Simply connect your devices and the switch automatically forwards traffic, making deployment fast and effortless. It supports three operating modes—Standard Mode, Port Isolation, and Flow Control Disabling—which can be selected using a hardware mode switch to meet different networking requirements.
The switch includes Auto MDI/MDIX, IEEE 802.3x flow control, automatic MAC address learning, and store-and-forward switching, ensuring stable Gigabit performance. Its fanless design provides silent operation while reducing power consumption, making it ideal for quiet office environments. The compact enclosure supports both desktop and wall-mounted installation.
Specifications
| Feature | Specification |
|---|---|
| Model | Huawei eKitEngine S110-8T2ST |
| Product Type | Unmanaged Gigabit Ethernet Switch |
| Downlink Ports | 8 × 10/100/1000BASE-T RJ45 |
| Uplink Ports | 1 × 10/100/1000BASE-T RJ45 + 1 × GE SFP |
| Total RJ45 Ports | 9 × Gigabit Ethernet |
| Management | Unmanaged (Plug & Play) |
| Working Modes | Standard Mode, Port Isolation, Flow Control Disabling |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 4K Entries |
| Forwarding Mode | Store-and-Forward |
| Flow Control | IEEE 802.3x |
| Auto Negotiation | Supported |
| Auto MDI/MDIX | Supported |
| Power Supply | External AC Power Adapter (100–240V AC Input, 12V DC Output) |
| Cooling | Fanless (Natural Cooling) |
| Installation | Desktop, Wall Mount |
| Housing | PC + ABS |
| Dimensions (H × W × D) | 35 × 210 × 130 mm |
| Operating Temperature | 0°C to +40°C |
| Ingress Protection | IP20 |
