Description

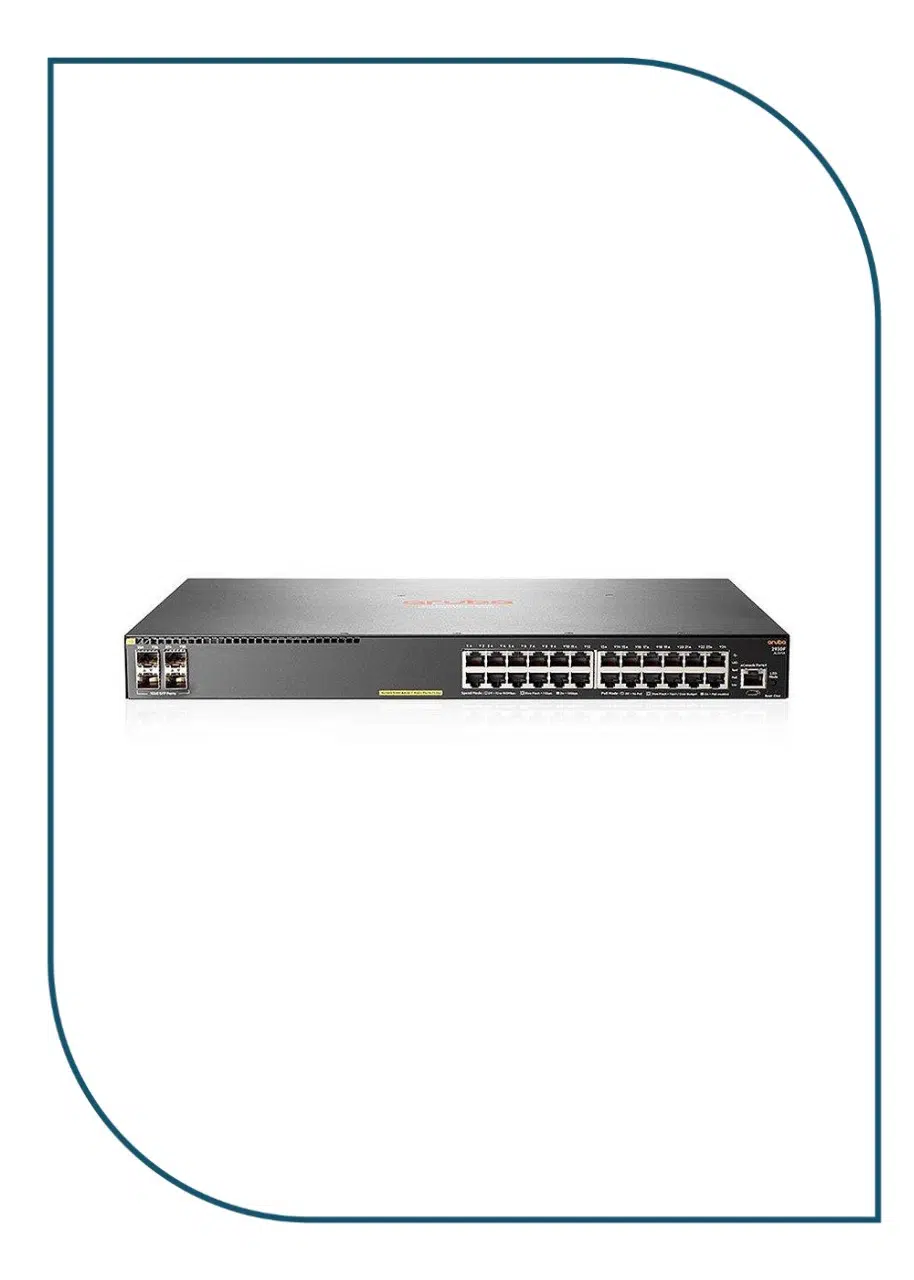

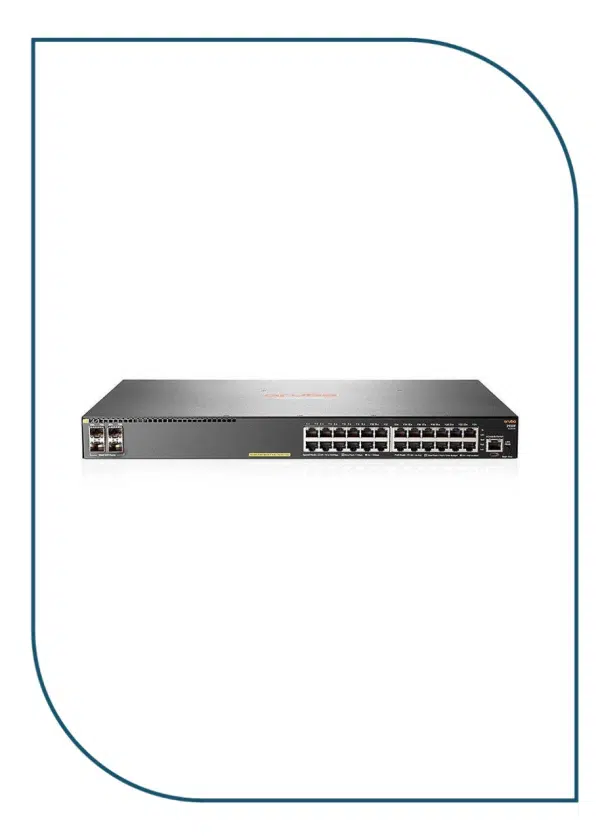

The HPE Aruba Networking 2930F 24G 4SFP+ Switch (JL253A) is a high-performance Layer 3 managed access switch designed for enterprise campuses, branch offices, and SMB networks. Equipped with 24 Gigabit RJ45 ports and 4 dedicated 1/10GbE SFP+ uplink ports, it provides reliable high-speed connectivity for users, servers, and network aggregation while supporting future network expansion.
Powered by Aruba’s ProVision ASIC and a dual-core ARM processor, the switch delivers 128 Gbps switching capacity and 95.2 million packets per second forwarding performance with low latency. It supports advanced Layer 3 features including Static Routing, RIP, Access OSPF, IPv6 routing, VLANs, ACLs, QoS, and robust security policies without requiring additional software licenses.
The switch supports Virtual Switching Framework (VSF), allowing up to eight physical switches to operate as a single logical device for simplified management and increased network resiliency. Integration with Aruba Central, AirWave, REST APIs, and Zero Touch Provisioning simplifies deployment and centralized management across enterprise environments. Although this model does not support PoE, it is ideal for deployments where powered Ethernet is not required.
| Specification | Details |
|---|---|
| Model | JL253A |
| Brand | HPE Aruba Networking |
| Product Series | Aruba 2930F |
| Product Type | Layer 3 Managed Ethernet Switch |
| Total Ports | 24 × 10/100/1000 Gigabit RJ45 |
| Uplink Ports | 4 × 1/10GbE SFP+ |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.2 Mpps |
| Switching Architecture | Store-and-Forward |
| MAC Address Table | 32,768 Entries |
| Packet Buffer | 12.38 MB |
| Processor | Dual-Core ARM Cortex-A9 @ 1.016 GHz |
| Memory | 1 GB DDR3 SDRAM |
| Flash Memory | 4 GB eMMC |
| Layer Support | Layer 2 & Layer 3 |
| Routing Features | Static Routing, RIP, Access OSPF, IPv6 Routing |
| VLAN Support | IEEE 802.1Q VLANs |
| Network Management | Web GUI, CLI, SNMP, REST API, Aruba Central, AirWave |
| Stacking | Virtual Switching Framework (VSF), up to 8 switches |
| Security Features | ACLs, 802.1X Authentication, RADIUS, TACACS+, Port Security, MAC Authentication |
| QoS | Advanced Layer 2–4 QoS |
| Power Supply | Internal AC Power Supply |
| PoE Support | No |
| Rack Mount | 1U, 19-inch Rack |
| Dimensions | 44.25 × 20.02 × 4.39 cm |
| Weight | 2.41 kg |
| Operating Temperature | 0°C to 45°C |
| Standards | IEEE 802.3, 802.3ab, 802.3z, 802.3ae, 802.1Q, 802.1p, 802.1X |
