Description

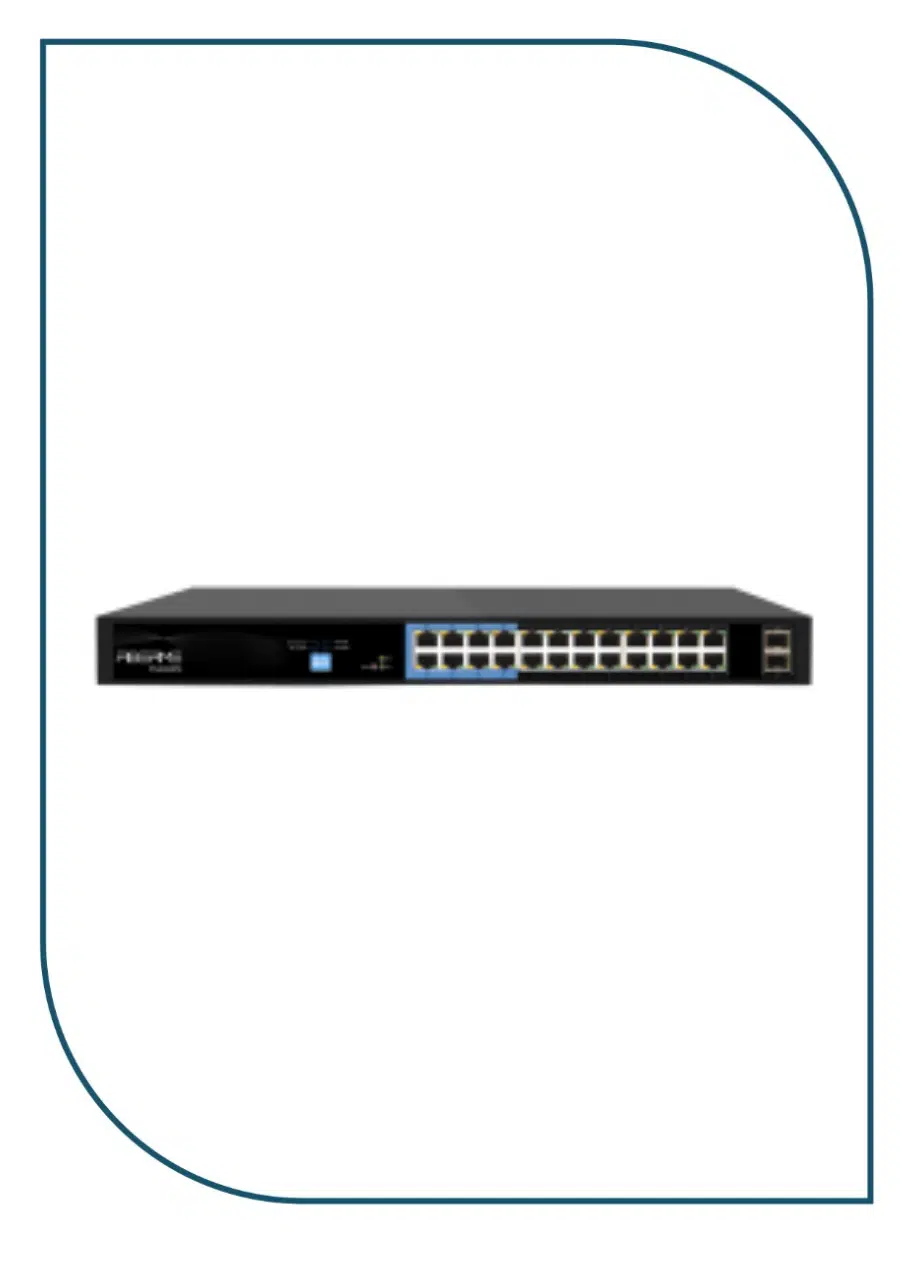

FS-AI2024GP
| Specification | Detail |
|---|---|
| Ports | 24 × RJ45 (10/100/1000 Mbps) |
| Uplink | 2 Gigabit SFP / RJ45 combo ports |
| PoE Standard | IEEE 802.3af/at |
| Max Power per Port | 30 W |
| Total PoE Budget | 250 W |
| AI Features | AI PoE, AI QoS, AI Extend, AI VLAN |
| Distance in Extend Mode | Up to 250 m (for ports 1–8) |
| Protection | 6 kV lightning protection, over-temperature, over-voltage, surge current protection |
| Switching Architecture | Non-blocking, wire-speed forwarding |
| Backplane Bandwidth | 48 Gbps |
| Forwarding Rate | 35.7 Mpps |
| MAC Table Size | 8K entries |
| Flow Control | IEEE 802.3x full duplex, half duplex backpressure |
| Auto MDI/MDIX | Supported |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
| Dimensions | 440 × 180 × 44 mm |
