Description

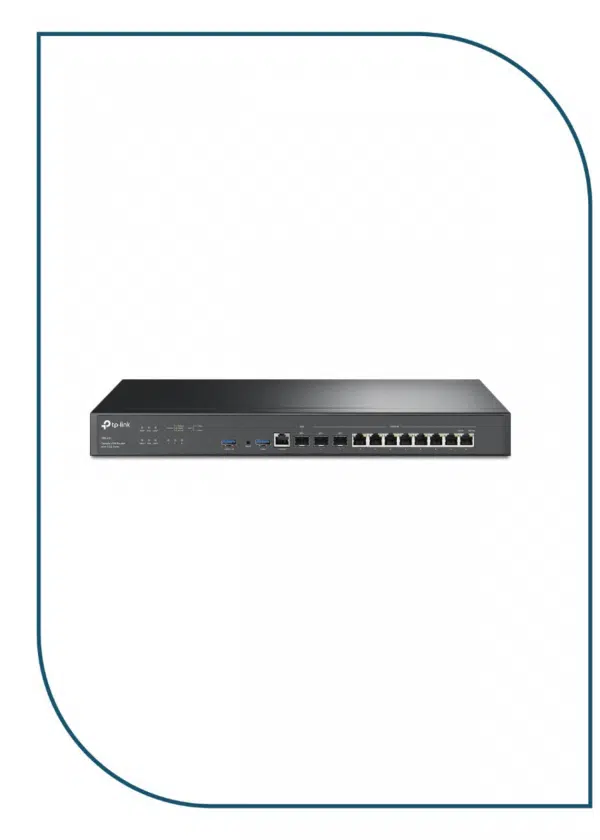

ER8411
SECURITY |
|
|---|---|
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • WEB Group Filtering*5 •URL Filtering • Web Security*5 |
| ARP Inspection | • Sending GARP Packets*5 ARP Scanning*5 • IP-MAC Binding*5 |
| Attack Defense | • TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |

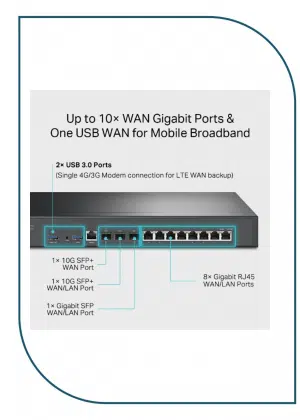

| Interface | • 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN) • 1× 1GE SFP WAN/LAN Ports •8× 1GE RJ45 WAN/LAN Ports 1× RJ45 Console Ports 2× USB Ports (Connecting 4G/3G Modem as WAN Backup) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5e, 6 cable (Max 100 m) |
| Fan Quantity | 2 |
| Button | Reset Button |

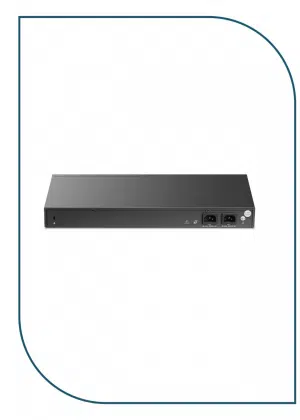

| Power Supply | Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz) |
| PoE Budget | – |
| Flash | 4MB SPI NOR + 256 MB NAND |
| DRAM | 4 GB DDR4 |
| LED | PWR, SYS, WAN, LAN, USB, FAN |
| Dimensions ( W x D x H ) | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Rack Mountable |
| Max Power Consumption | • 26.36 W (with USB 3.0 connected) • 19.12 W (without USB 3.0 connected) |
PERFORMANCE |
|
|---|---|
| IPS Throughput | TCP: 4924 Mbps; UDP: 4521 Mbps |
| DPI Throughput | TCP: 5524 Mbps; UDP: 3547 Mbps |
| WireGuard VPN | 1411 Mbps |
| Concurrent Session | 2,300,000 |
| New Sessions /Second | 20,000 |
| NAT (Static IP) | • Upload: 9445.82 Mbps • Download: 9449.26 Mbps |
| NAT(DHCP) | • Upload: 9426.83 Mbps • Download: 9426.20 Mbps |
| NAT(PPPoE) | • Upload: 9413.96 Mbps • Download: 9102.01 Mbps |
| NAT (L2TP) | • Upload: 4230.62 Mbps • Download: 4169.53 Mbps |
| NAT (PPTP) | • Upload: 3933.86 Mbps • Download: 3821.97 Mbps |
| 64 Byte Packet Forwarding Rate | • Upload: 1080 Mbps • Download: 1030 Mbps |
| IPsec VPN Throughput | • SHA1-AES256: 2140.45 Mbps • SHA2-AES256: 2080.20 Mbps |
| OpenVPN | 1665.64 Mbps |
| L2TP VPN Throughput | • Unencrypted: 5013.50 Mbps • Encrypted: 2274.74 Mbps |
| PPTP VPN Throughput | • Unencrypted: 10143 Mbps • Encrypted: 952 Mbps |
| SSL VPN Throughput | 1511.10 Mbps |
| 66 Byte Packet forwarding rate | – |
| 1,518 Byte Packet forwarding rate | • Upload: 9970 Mbps Download: 9970 Mbps |
| BASIC FUNCTIONS | |
|---|---|
| WAN Connection Type | • Static/Dynamic IP PPPoE PPTP L2TP 6to4 Tunnel Pass-Through • Mobile Broadband: 4G/3G modem for backup via USB port |
| MAC Clone | Modify WAN/LAN MAC Address*4 |
| DHCP | • DHCP Server/Client DHCP Address Reservation • Multi-net DHCP • Multi-IP Interfaces |
| IPv6 | WAN Connection |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| ADVANCED FUNCTIONS | |
|---|---|
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing • Policy Routing |
| Bandwidth Control | • IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth |
| Load Balance | • Intelligent Load Balance Application Optimized Routing Link Backup (Timing*5, Failover) • Online Detection |
| NAT | • One-to-One NAT*5 Multi-Net NAT Virtual Server Port Triggering*5 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Security | • SPI Firewall VPN Passthrough FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management |
| Session Limit | IP-based Session Limit |
VPN |
|
|---|---|
| SSL VPN | • SSL VPN Server • SSL VPN Client • 500 SSL VPN Tunnels |
| IPsec VPN | • 300 IPSec VPN Tunnels LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm • IKE v1/v2 MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (32)*6 300 Tunnels (Shared with L2TP) • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server L2TP VPN Client (32)*6 300 Tunnels (Shared with PPTP) • L2TP over IPSec |
| OpenVPN | • OpenVPN Server •OpenVPN Client (10)*6 • 110 OpenVPN Tunnels |
| AUTHENTICATION | |
|---|---|
| Web Authentication | • No Authentication Simple Password*2 Hotspot（Local User / Voucher*2 / SMS*2 / Radius*2） External Radius Sever External Portal Sever*2 • Facebook Check-In*2 • Instagram Follow*2 |
MANAGEMENT |
|
|---|---|
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Hardware Controller (OC300) \ Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)*5 • NTP Synchronize*5 • Syslog Support |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • Omada 10G Multi-WAN Security Gateway ER8411 Power Cord • Rack-Mount Kit • Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
