DNN3224F
| Product: | |

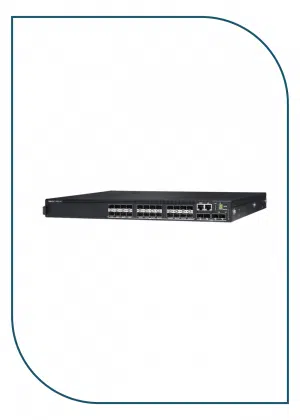

| Name: | DELL EMC PowerSwitch N3224F |
| Description: | Dell EMC PowerSwitch N3200-ON Series N3224F-ON – Switch – L3 – Yes – 24 x Gigabit SFP + 4 x 10 Gigabit SFP+ + 2 x 100 Gigabit QSFP28 – front-back airflow – rack-mountable – CAMPUS Smart Value |
| EAN: | |
| Manufacturer’s warranty: | Limited Lifetime Warranty |
| General | |
| Device type: | Switch – 24 ports – L3 – Yes – tower |
| Housing type: | Front-back airflow mounted in a 1U rack |
| Subtype: | 10 Gigabit Ethernet |
| Ports: | 24 x Gigabit SFP + 4 x 10 Gigabit SFP+ + 2 x 100 Gigabit QSFP28 |
| Execution: | Switching capacity: 528 Gbps Forwarding rate: 733 Mpps |
| Capacity: | IPv4 routes (static): 1024 IPv6 routes (static): 1024 IPv4 routes (dynamic): 8160 IPv6 routes (dynamic): 4096 Maximum number of ports for each LAG: 8 Maximum number of dynamic ports for each switch pool: 144 LAGs: 128 OSPF Routes: 8158 RIP Routes: 512 ECMP Next Hops per Route: 16 ECMP Groups: 1024 VLAN Routing Interfaces: 128 VLANs Supported: 4094 Multicast Requests (IPv4): 1023 Multicast Requests (IPv6): 1021 ARP Entries: 6144 Entries NDP: 2560 ACL: 100 Maximum number of ACL rules: 1023 Max ACL rules system-wide: 3914 Maximum number of VLAN interfaces with ACLs applied: 24 |
| MAC address table size: | 32K entries |
| Routing protocol: | OSPF, RIP, RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, IPv4-to-IPv6 Multicast |
| Remote Management Protocol: | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, TFTP, SSH-2 |
| Coding algorithm: | MD5, AES, SSL, TLS |
| Identification method: | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Characteristics: | Flow control, MDI/MDI-X switch, auto-negotiation, ARP support, VLAN support, port mirroring, DiffServ support, Weighted cyclical queuing (WRR), Broadcast Storm Control, IPv6 support, Rapid Spanning Tree (RSTP) support, Multiple protocol support Spanning Tree Protocol (MSTP), Access List (ACL) support, Quality of Service (QoS), STP Root Guard, IPv4 support, LLDP support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Management Information Base (MIB), Dynamic VLAN Support (GVRP), dual firmware images, Network Access Control (NAC), Neighbor Discovery Protocol (NDP), VLAN tags, additional fans, protocol-based VLAN support |
| Compliance with standards: | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3ax |
| RAM: | 4GB |
| Flash memory: | 8GB |
| Extension/connection | |
| Interfaces: | 24 x Gigabit LAN SFP 4 x LAN 10 Gb SFP+ 1 x 10/100/1000 Base-T RJ-45 yes 2 x 100Gbit LAN QSFP28 stacked 1 x serial (RS-232) RJ-45 console |
| Power supply | |
| Charger: | Internal Power Adapter – Hot Plug Component |
| Number installed: | 1 (installed) / 2 (max) |
| Redundant Power: | Option |
| Redundant power diagram: | 1 1 (with optionally attached power supply) |
| Output power: | 550 watts |
| Power consumption in active mode: | 224 watts |
| 80 PLUS Certificate: | 80 PLUS Platinum |
| Different | |
| Rack mount kit: | Attached |
| Compliance with standards: | Certified FCC Class A, UL, cUL, GS, RoHS, WEEE, REACH, ICES Class A, NRTL, VCCI Class A, EAC, CCC Class A, FDA 21CFR1040.10, ACMA, FDA 21CFR1040.11 |
| Manufacturer’s sales program: | CAMPUS Smart Value |
| Software/System Requirements | |
| Software included: | Dell EMC OS6 |
| Dimensions and weight | |
| Width: | 43.4 cm |
| Depth: | 40 cm |
| Height: | 4.34 cm |
| Libra: | 6.46kg |
