Description

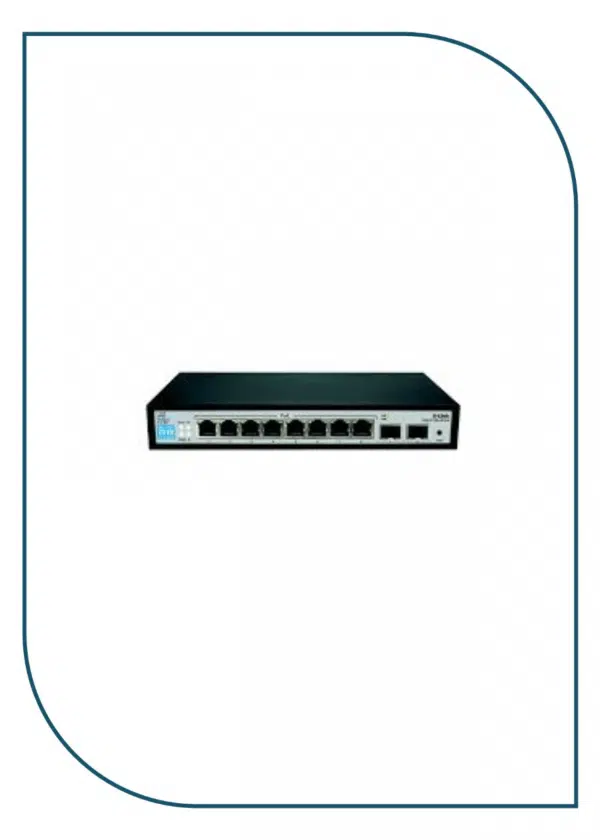

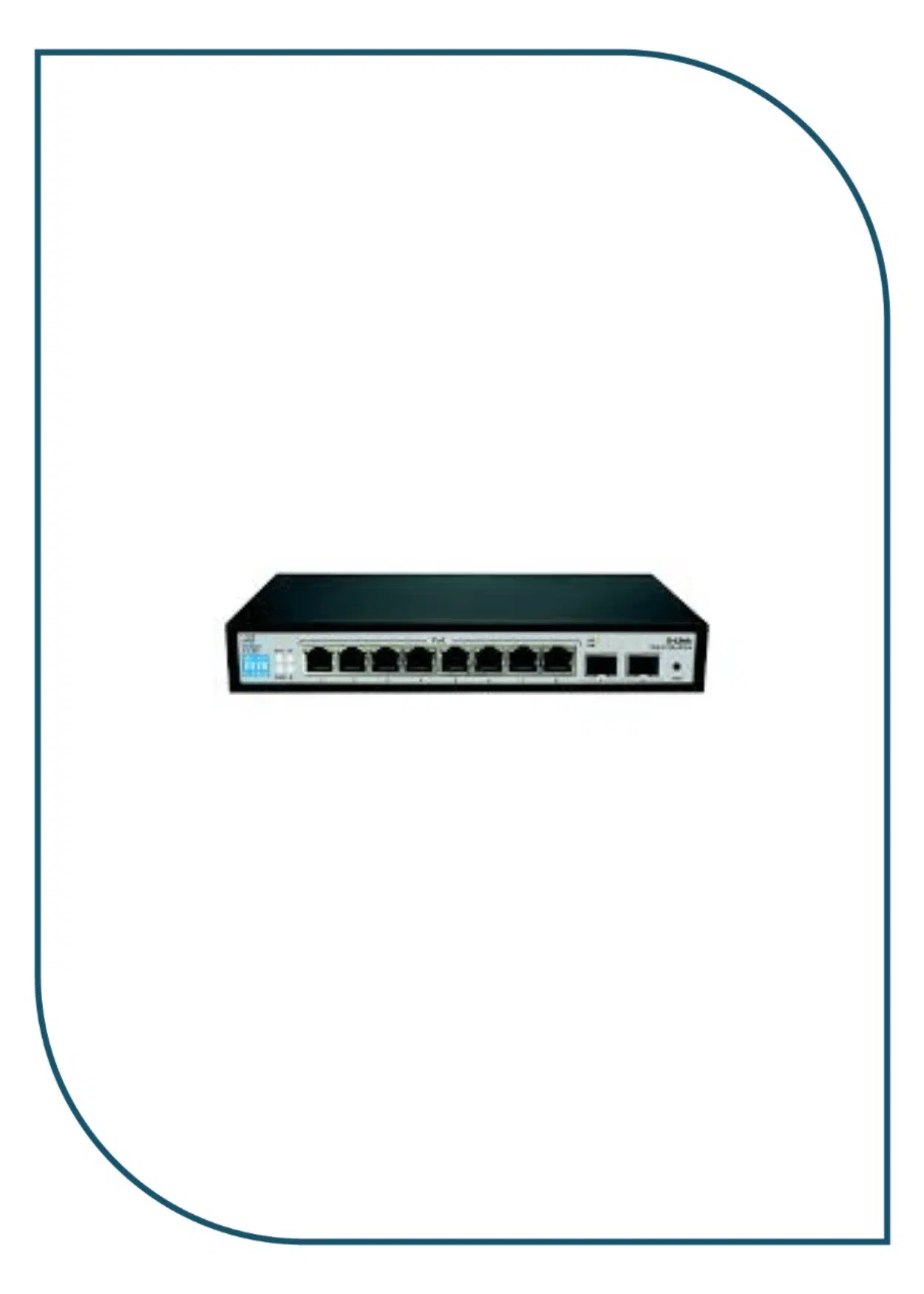

DGS-F1100-10PS-E
About the Switch
DGS-F1100-10PS-E is a managed switch designed to meet the requirements of small, medium, and enterprise businesses. DGS-F1100-10PS-E supports multiple PoE standards make it ideal for IP surveillance deployments. Advanced management features, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to meet your networking requirements.
DGS-F1100-10PS-E Features
Physical
• Available in multiple configurations, with or without PoE and fiber support
• Fanless design for silent operation
• 6kv Surge Protection
• 8x 10/100/100 BASE-T PoE Ports (802.3af/at complaint)
• 2 Gigabit SFP Ports
DGS-F1100-10PS-E Management Features
• Client-based utility or web-based GUI
• Built-in SNMP MIBDGS-F1100-10PS-E Advanced Features
• IEEE 802.1Q and port based VLAN
• IEEE 802.1p Quality of Service (QoS)
• STP/RSTP/MSTP
• Port mirroring
• Link aggregation
• Bandwidth control
• Broadcast storm control
• IGMP/MLD Snooping
• Extend mode transmission distance up to 250m
• 96W PoE Budget
Advanced Features
The DGS-F1100-10PS-E is equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping. Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorized devices only.
Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded.
IGMP Snooping can reduce the load of L3 multicast routers and save bandwidth in network throughput The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers.
The switch also supports advanced features such as static routes, which allow network administrators to divide the network into VLANs, increasing network efficiency.
The DGS-F1100- 10PS-E supports Voice VLAN and Port VLAN, allows voice and video traffic to be automatically identified and handled differently than regular network traffic, adding a layer of isolation and allowing Quality of Service (QoS) to be applied.
PoE Support
The DGS-F1100-10PS-E provides Power over Ethernet (PoE) support, reducing deployment time for IP cameras, VoIP phones, and access points. Dedicated power adapters are no longer required, as the DGS-F1100-10PS-E comply with IEEE 802.3af and 802.3at PoE standards and provide up to 30 watts per port.
| Category | Specification |
|---|
| General |
| Model | DGS-F1100-10PS-E |
| Interfaces | 8 x 10/100/1000BASE-T 2 x 10/100/1000 Mbps SFP ports |
| Port Standards | IEEE 802.3: Ethernet MAC protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 10BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3az: 1000BASE-X Gigabit Ethernet Fiber IEEE 802.3ad: Link Aggregation Standard IEEE 802.3x: Flow Control IEEE 802.1p: Traffic Priority QoS / Cos Protocol IEEE 802.1q: VLAN Bridge Operation IEEE 802.1d: STP Spanning Tree IEEE 802.1s: MSTP Spanning Tree IEEE 802.1w: RSTP Spanning Tree |
| PoE |
| PoE Standards | IEEE 802.3af/at |
| PoE Capable Ports | Port 1-8 support up to 250m @10Mbps with Extend Enable |
| Power Budget | 96W (30W max. per port) |
| Uplink Port Settings |
| From Port | Specifies start port for Uplink Ports (connects surveillance VLAN with other switches). |
| To Port | Specifies end port for Uplink Ports (connects surveillance VLAN with other switches). |
| Network Cables | UTP Cat. 5, Cat. 5e (100m max.) |
| Duplex Mode | Full/Half-duplex for 10/100 Mbps Full duplex for 1000 Mbps |
| Performance |
| Switching Capacity | 20 Gbps |
| Transmission Method | Store-and-forward |
| MAC Address Table | 8K entries |
| Max 64 Byte Packet Forwarding Rate | 14.88 Mpps |
| LED’s |
| Power | ✔ |
| System | ✔ |
| Physical/Environmental |
| Power Input | DC: 12V 1A |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 95% relative humidity, no condensation |
| Storage Humidity | 5% to 90% relative humidity, no condensation |
| Dimensions (L x W x H) | 225 x 120 x 35 mm |
