Description

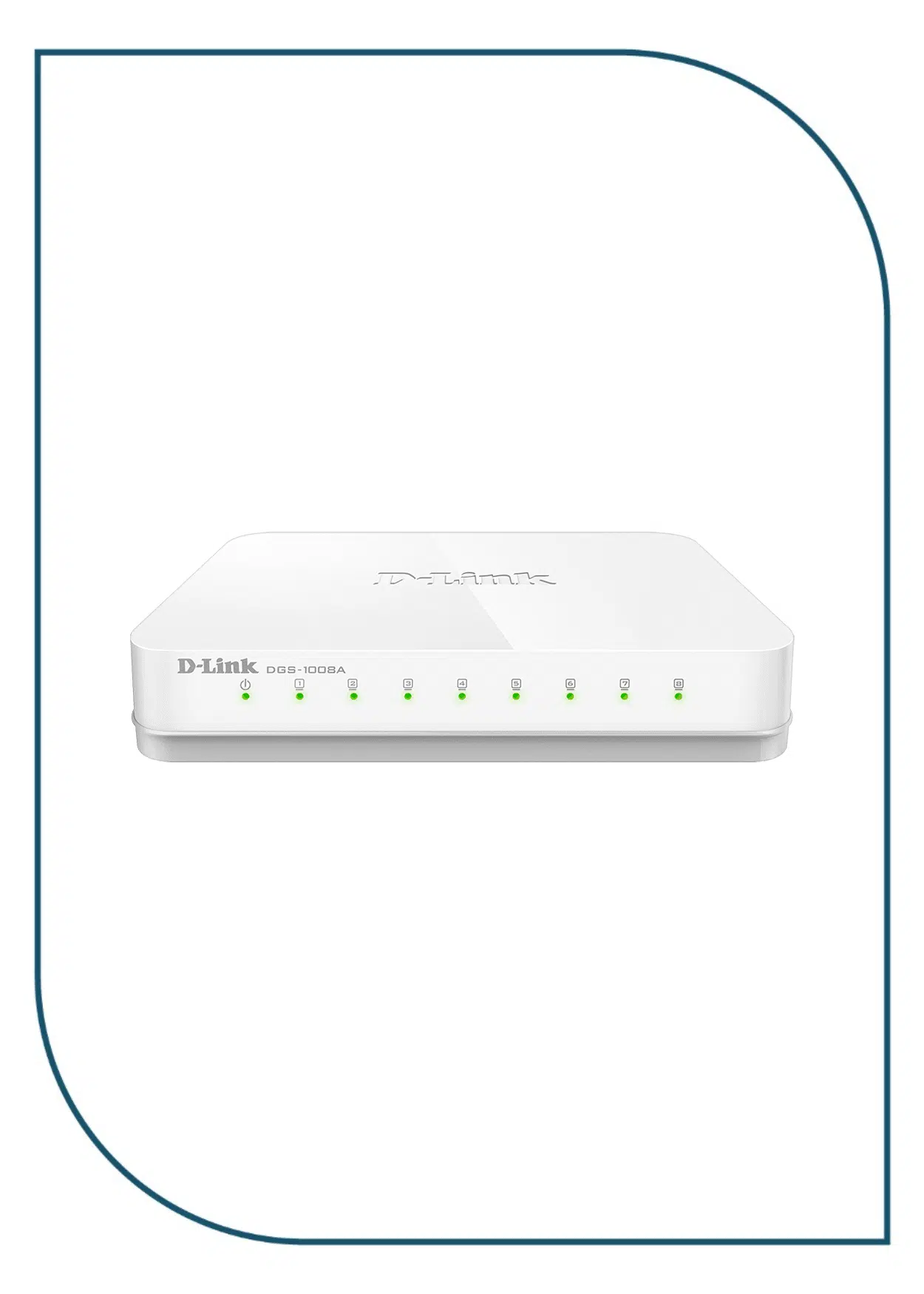

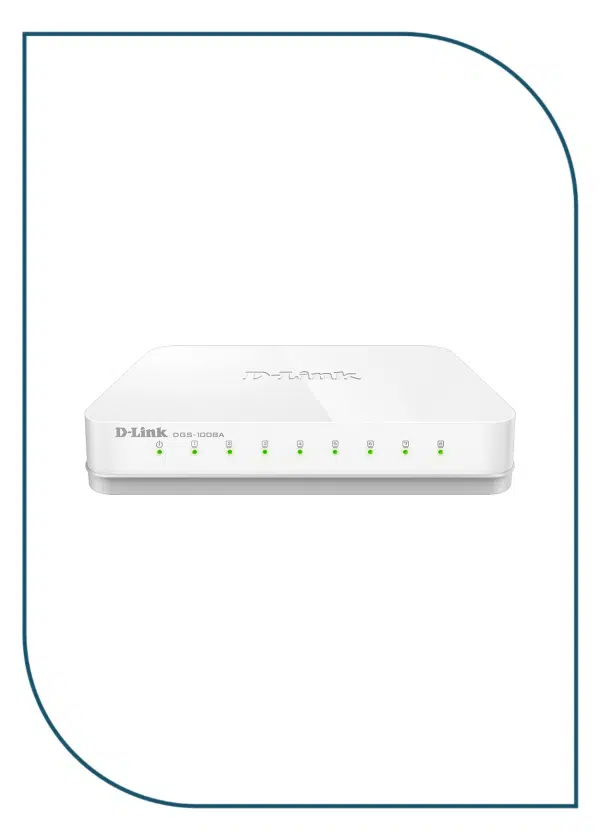

DGS-1008A
Fast and Reliable Networking
The D-Link DGS-1008A 8-Port Gigabit Easy Desktop Switch creates a blazing fast network for your office, as its Gigabit Ethernet ports provide high-speed wired connections for up to eight PCs or other devices. The DGS-1008A also features QoS, which prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic.
Conserve Energy
- Fanless design for silent operation
- Innovative D-Link Green energy saving features
The 8-Port Gigabit Easy Desktop Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save a substantial amount of power by cutting power usage for unused ports or ports connected to computers that have been shut down.
Environmentally Friendly
The 8-Port Gigabit Easy Desktop Switch was designed with the environment in mind, and is compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.
DGS-1008A Specification
|
Air Discharge
|
8kV |
|---|---|
|
Auto MDI/MDIX
|
Yes |
|
Comply with RoHS 6
|
Yes |
|
Contact Discharge
|
4kV |
|
Control
|
802.3x Flow |
|
Dimensions
|
130 x 79 x 22mm |
|
Energy Efficiency Ethernet (EEE)
|
Yes |
|
FAN
|
Fanless |
|
Flash Memory Size
|
64KBytes |
|
Head-of-line (HOL) Blocking Prevention
|
Yes |
|
Interfaces
|
8 x 1000Base-T |
|
Jumbo Frame
|
9,720 Bytes |
|
MAC Address Table Size
|
4,000 |
|
Max. Packet Forwarding Rate
|
11.90 Mps |
|
Maximum Heat Dissipation
|
16.368 BTU/h |
|
Maximum Power Consumption
|
4.80 W |
|
MTBF
|
1,061,267 hours |
|
Operating Altitude
|
2000m |
|
Operating Humidity
|
0% ~ 95% RH |
|
Operating Temperature
|
0 ~ 40 °C |
|
Packet Buffer Size
|
192KBytes |
|
Power Input
|
AC：100 ~ 240 V |
|
Power Saving By Cable Length
|
Yes |
|
Power Saving By Link Status
|
YES |
|
Standby Power Consumption
|
0.7 W |
|
Storage Humidity
|
0% ~ 95% RH |
|
Storage Temperature
|
– 10 ~ 70 °C |
|
Store & Forwarding Forwading
|
Yes |
|
Surge/Lightning Protection
|
AC Power Inet: 1kV All Ethernet Ports: 1kV |
|
Switch intelligence
|
Unmanaged |
|
Switching Capacity
|
16 Gbps |
|
Weight
|
130 g |
