Description

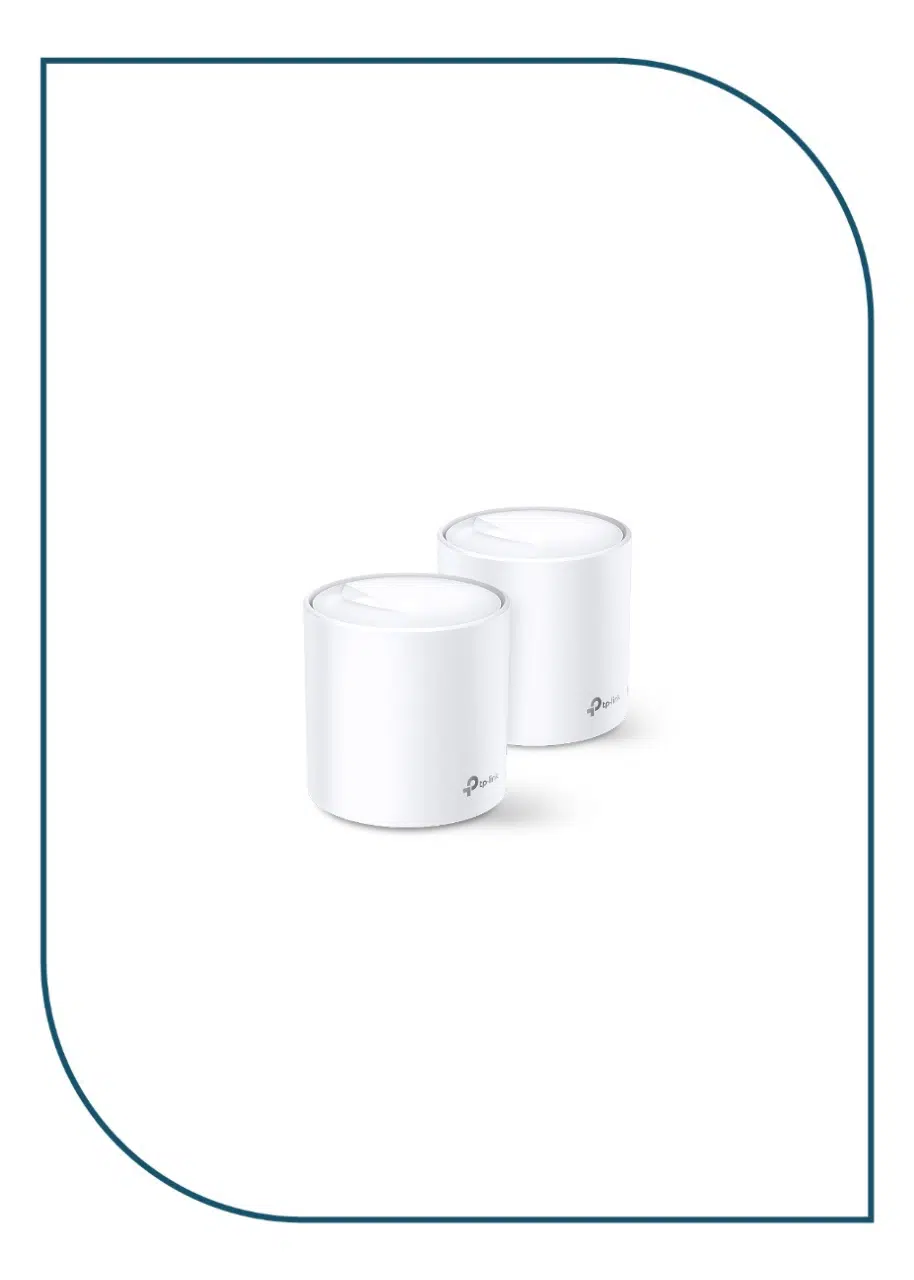

Deco X20
WIRELESS | |
---|---|
Standards | Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds | AX1800
5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range | 4-6 Bedroom Houses (3-pack)
TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
WiFi Capacity | High
Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 4 Streams More than enough bandwidth for connected devices |
Working Modes | Router Mode
Access Point Mode |
SECURITY | |
---|---|
Network Security | SPI Firewall
Access Control HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
Guest Network | 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
WiFi Encryption | WPA-Personal
WPA2-Personal WPA3-Personal |
HARDWARE | |
---|---|
Ethernet Ports | 2× Gigabit Ports
*Per Deco Unit Supports WAN/LAN auto-sensing |
Buttons | Reset Button |
SOFTWARE | |
---|---|
Protocols | IPv4
IPv6 |
Service Kits | HomeShield |
Parental Controls | HomeShield Parental Controls
Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
WAN Types | Dynamic IP
Static IP PPPoE PPTP L2TP |
Quality of Service | HomeShield QoS
QoS by Device |
Cloud Service | OTA Firmware Upgrade
TP-Link ID DDNS |
NAT Forwarding | Port Forwarding
UPnP |
IPTV | IGMP Proxy
IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation
DHCP Client List Server |
DDNS | TP-Link |
Management | Deco App |
TEST DATA | |
---|---|
WiFi Transmission Power | CE:
<20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
PHYSICAL | |
---|---|
Dimensions (W×D×H) | 4.33 × 4.33 × 4.49 in
(110 × 110 × 114 mm) |
Package Contents | Deco X20 (3-pack)
3 Deco X20 Units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation Guide Deco X20 (2-pack) 2 Deco X20 Units 1 RJ45 Ethernet Cable 2 Power Adapters 1 Quick Installation Guide Deco X20 (1-pack) 1 Deco X20 Unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide |
OTHERS | |
---|---|
System Requirements | Android 5.0 or later
iOS 9.0 or later *Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information. |
Certifications | CE, FCC, IC, RoHS, JPA, JRF, VCCI |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
