NCB-FS09S-LC1

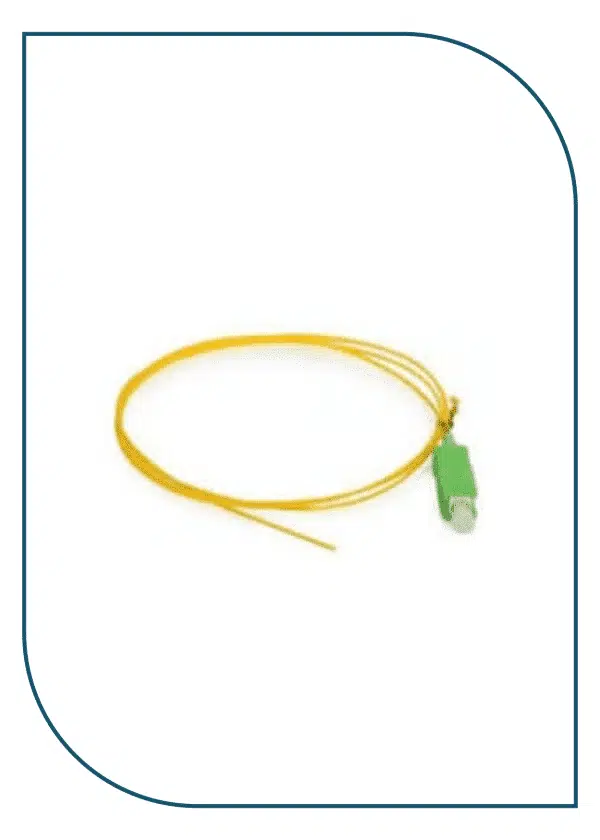

D-Link offers quality pigtails which are single ended with connectors. D-Link pigtails come with good end face geometry, full standard optical specifications, precise length and tolerances. The pre-polished pigtails give the quality, confidence and convenience to be installed and spliced in the field.
FEATURES
- Adopts high precision ceramic ferrule with good concentricity.
- Advanced termination facilities & process , deliver good geometry characteristics of apex offset & radius of curvature & fiber height.
- 100% inspected for optical characteristics & fiber end face finish
- Low insertion loss & return loss, clean and scratch-free end faces
- Good performance endurance under circumstances changing.
| SPECIFICATIONS | |||
| Connector Type SC/ST/FC/LC/MTRJ | |||
| Optical Fiber | Corning single-mode G652D, G657A, G657B | Corning multi-mode
OM1, OM2, OM3, OM4 |
|
|
Cable Type |
PVC & LSZH (Low Smoking Zero Halogen) on request | ||
| 0.9mm/2.0mm/3.0mm Simplex & Duplex | |||
| Cable Color, Length | Yellow for single mode, orange for multi-mode & aqua for OM3 1m, 2m and 3m. Other lengths on request. | ||
| Optical Specification | Insertion Loss | Typical: ≤0.2dB, Max. 0.3dB (MTRJ: Max. 0.5dB) | Typical: ≤0.2dB, Max. 0.3dB (MTRJ: Max. 0.5dB) |
| Return Loss | PC≥45dB, UPC≥50 dB, APC≥60dB | ≥30dB | |
|
Mechanical Specification |
Ferrule | Ceramic, (MTRJ: PS-Polyphenylene Sulphide) | |
| Apex Offset | < 50um | ||
| Fiber Height | ±100nm | ||
| Radius of Curvature | 7mm R < 25mm(Excluding MTRJ) | ||
| Repeatability | ≤0.2dB 1,000 times mating cycles | ||
| Working Temperature | -40ºC ~ +85ºC | ||
| Storage Temperature | -40ºC ~ +85ºC | ||
