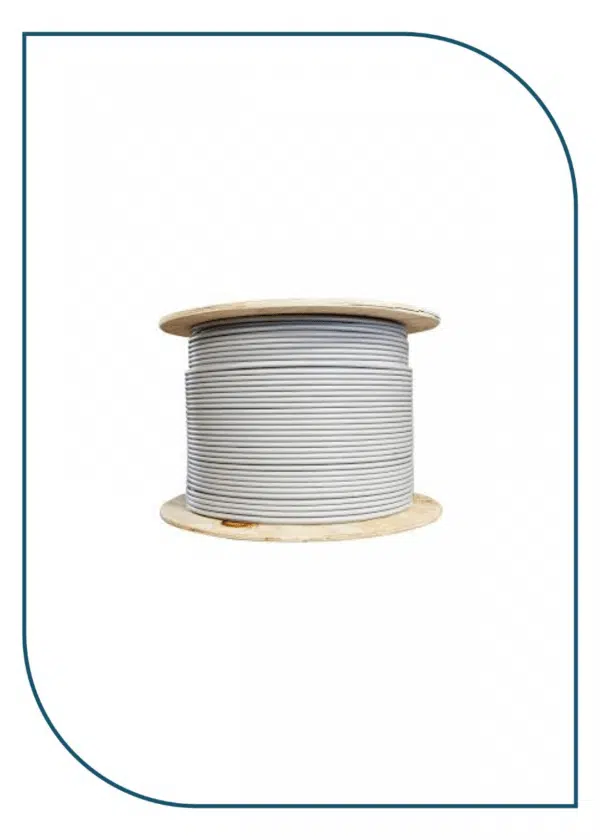

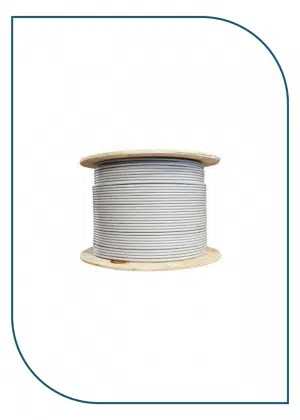

NCB-C6UGRYR-305-24 cable UTP CAT6 24AWG 305M ROLL PVC GRAY

Description

NCB-C6UGRYR-305-24

• 4 Pairs Unshielded Twisted Pair (UTP) Cable
• Conductor Metal: Solid Bare Copper with 24 AWG
• Color Code: Gray
• Jacket Material: PVC UL94V-0
• PE Central Cross separator

Mutual Capacitance: 5.6nF/100m nominal

Characteristic Impedance: 100­±15%

Nominal Velocity of Propagation: 69%

Conductor Resistance: < 9.38­/100m

Mutual Capacitance: < 5.6nF/100m

Resistance Unbalance: 5% Max

Capacitance Unbalance: 330pF/100m

Delay Skew: < 45nS

Conductor Diameter : 0.520mm Nominal

Insulation Diameter: 0.940mm Nominal

Insulation Material: HD-PE

Cable Diameter: 5.7mm
