Description

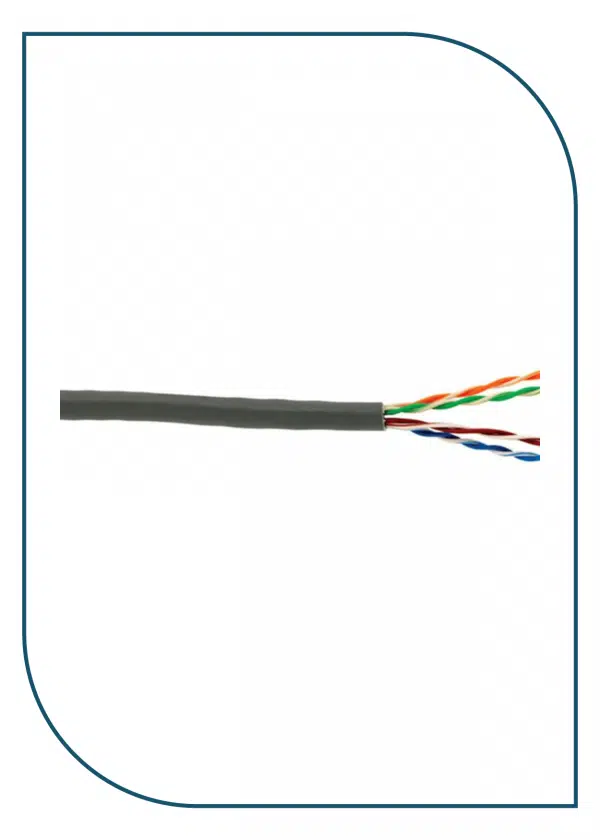

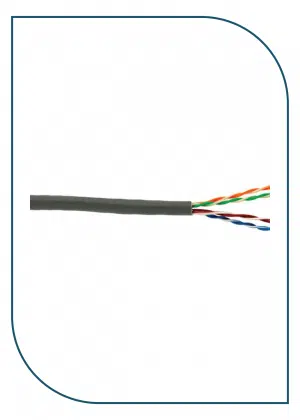

NCB-6AUGRYR-305
Bending Radius: < 4 x Cable Diameter at –20°C ± 1°
Pulling Force: 11.5 Kgs
Temperature Range
Installation: 0° to +50°C
Operation :-20° to +70°C
- Enhanced performance cable for transmission of high speed data, digital and analogue voice and video (RGB) signals on LANs
- Supports Gigabit Ethernet (10GbaseT) standard
- Operates at a bandwidth of 500MHz This cable complies to the requirements of ANSI/TIA-568-C.2 90m permanent link
Conductor: 23 AWG Solid bare Copper
Insulation: : High Density Polyethylene
Pairs: : 2 Insulated conductors twisted together
Seperator: Polyolefin
Sheath : FR PVC – Corrugated Jacket
Cable Diameter: 6.5 + 0.3 mm
