Description

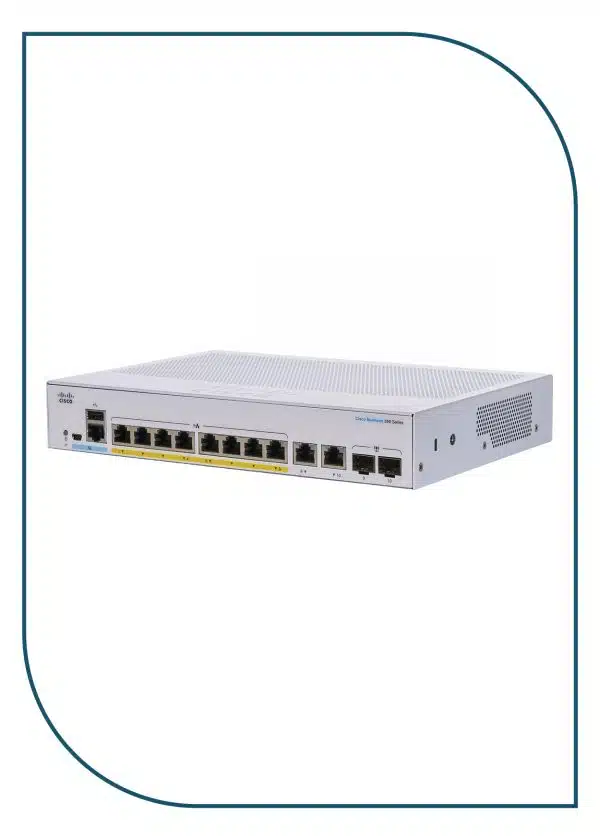

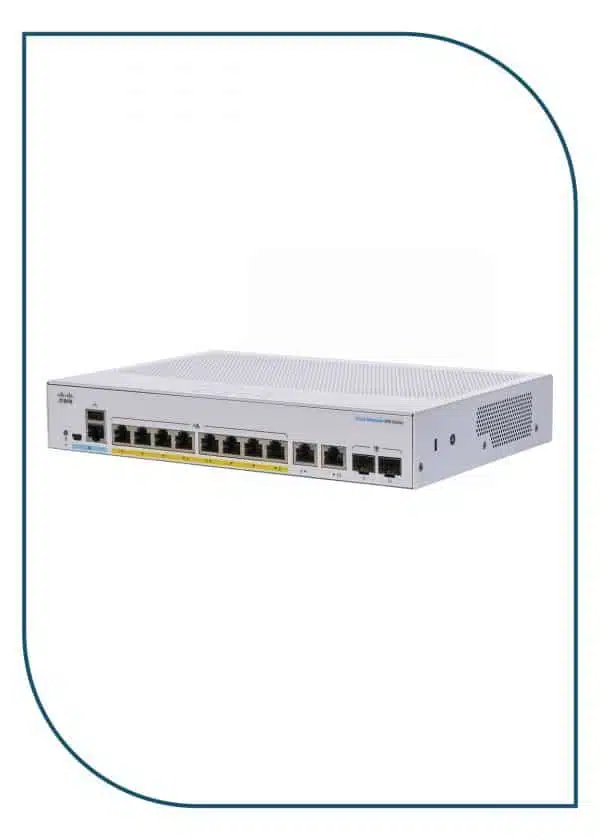

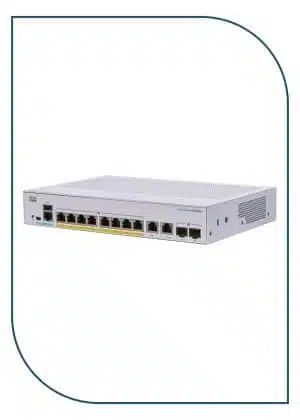

The Cisco CBS350-8FP-2G is part of the Cisco Business 350 Series, providing enterprise-grade networking capabilities for small and medium-sized businesses. Equipped with 8 Gigabit Ethernet Full PoE+ ports and 2 Gigabit Combo uplink ports (RJ45/SFP), the switch delivers reliable connectivity and flexible fiber integration for modern business networks.
With a powerful 124W PoE budget, the CBS350-8FP-2G can power IP phones, wireless access points, surveillance cameras, access control systems, and IoT devices directly through Ethernet cables, reducing installation complexity and infrastructure costs.
The switch supports advanced Layer 2 and Layer 3 Lite networking features including static routing, VLAN segmentation, QoS traffic prioritization, link aggregation, multicast support, and IPv6 networking. These capabilities help businesses optimize traffic flow and improve network efficiency.
Built with enterprise-grade security features such as Access Control Lists (ACLs), IEEE 802.1X authentication, DoS prevention, port security, and secure management access, the switch helps protect critical network infrastructure against unauthorized access and cyber threats.
Its compact desktop design, fanless operation, and intuitive management interface make it ideal for offices, retail stores, hotels, clinics, schools, CCTV deployments, and VoIP installations requiring reliable PoE connectivity.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco CBS350-8FP-2G |
| Product Series | Cisco Business 350 Series |
| Switch Type | Managed Layer 3 Lite Switch |
| Ports | 8 × 10/100/1000 Gigabit Ethernet PoE+ |
| Uplink Ports | 2 × 1G Combo (RJ45/SFP) |
| PoE Standard | IEEE 802.3af/at PoE+ |
| PoE Type | Full PoE |
| PoE Budget | 124W |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Layer Support | Layer 2 / Layer 3 Lite |
| Routing Features | Static Routing |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Link Aggregation | Yes |
| Security Features | ACL, 802.1X, Port Security, DoS Prevention |
| IPv6 Support | Yes |
| MAC Address Table | 16K Entries |
| Jumbo Frame Support | Up to 9KB |
| Management | Web GUI, CLI, SNMP |
| Mounting Type | Desktop / Wall Mount |
| Cooling | Fanless |
| Power Supply | External Power Adapter |
| Application | VoIP, CCTV, Wireless Access Points, SMB Networks |
| Brand | Cisco |
Key Features
- 8 Gigabit Full PoE+ ports
- 2 Gigabit Combo RJ45/SFP uplinks
- 124W PoE power budget
- Layer 3 Lite managed switching
- Advanced VLAN and QoS support
- IPv6-ready infrastructure
- Enterprise-grade security features
- Fanless silent operation
- Compact desktop design
- Ideal for VoIP, CCTV, and Wi-Fi deployments
