Description

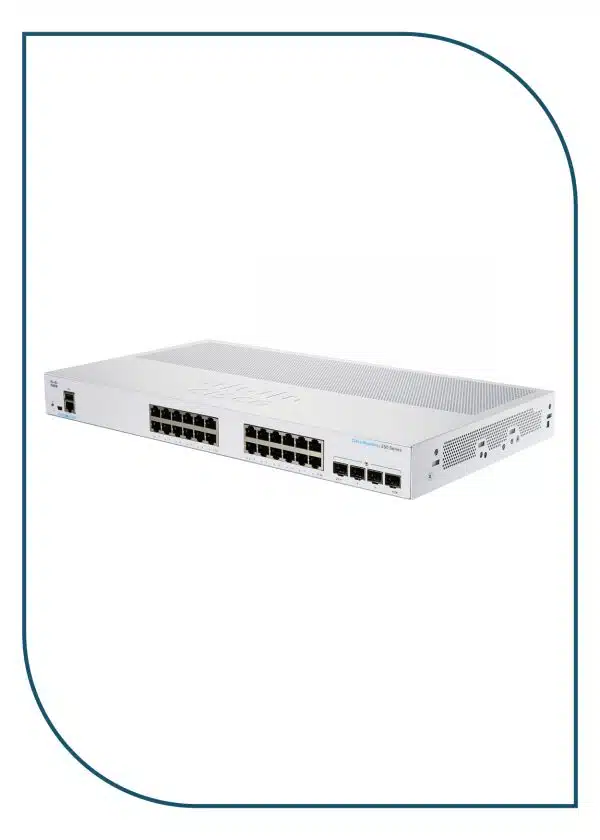

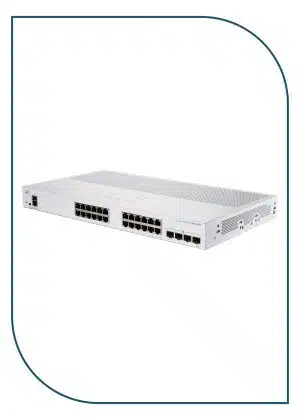

CBS250-24T-4G
CBS250-24T-4G Overview
The Cisco Business 250 Series is the next generation of affordable smart switches that combine powerful performance and reliability with a complete suite of the features you need for a solid business network. These switches provide flexible management options, comprehensive security capabilities and Layer 3 static routing feature far beyond those of an unmanaged or consumer-grade switch, at a lower cost than for fully managed switches.
Quick Specs
Table 1 shows the Quick Specs.
Product Code | CBS250-24T-4G |
Capacity in millions of packets per second (mpps) (64-byte packets) | 41.66 |
Switching capacity in gigabits per second (Gbps) | 56.0 |
Total system ports | 28 Gigabit Ethernet |
RJ-45 ports | 24 Gigabit Ethernet |
Packet buffer | 1.5 MB |
Unit dimensions (W x D x H) | 445 x 240 x 44 mm (17.5 x 9.45 x 1.73 in) |
Product Details
-Layer 3 static routing
This capability allows you to segment your network into separate workgroups and communicate across VLANs without degrading application performance. As a result, you can manage internal routing with your switches and dedicate your router to external traffic and security, helping your network run more efficiently.
-Flexible and compact design
The sleek and compact design provides additional deployment flexibility, including outside wiring closet installation such as retail stores, open-plan offices, and classrooms without disturbing the environment.
-Peace of mind and investment protection
Cisco Business 250 Series switches offer the reliable performance, investment protection, and peace of mind you expect from a Cisco switch. Complimentary one-year access to our Small Business Support Center for ongoing support. Limited lifetime warranty with return to factory replacement keeps your business running smoothly.
Supported Modules
Table 2 shows the supported SFP/SFP+ modules of Cisco Business 250 Series Switches.
SKU | Media | Speed | Maximum distance |
MGBSX1 | Multimode fiber | 1000 Mbps | 500 m |
MGBLH1 | Single-mode fiber | 1000 Mbps | 40 km |
MGBLX1 | Single-mode fiber | 1000 Mbps | 10 km |
MGBT1 | UTP cat 5e | 1000 Mbps | 100 m |
GLC-SX-MMD | Multimode fiber | 1000 Mbps | 550 m |
GLC-LH-SMD | Single-mode fiber | 1000 Mbps | 10 km |
GLC-BX-U | Single-mode fiber | 1000 Mbps | 10 km |
GLC-BX-D | Single-mode fiber | 1000 Mbps | 10 km |
GLC-TE | UTP cat 5e | 1000 Mbps | 100 m |
SFP-H10GB-CU1M | Copper coax | 10 Gig | 1 m |
SFP-H10GB-CU3M | Copper coax | 10 Gig | 3 m |
SFP-H10GB-CU5M | Copper coax | 10 Gig | 5 m |
SFP-10G-SR | Multimode fiber | 10 Gig | 26 m – 400 m |
SFP-10G-LR | Single-mode fiber | 10 Gig | 10 km |
SFP-10G-SR-S | Multimode fiber | 10 Gig | 26 m – 400 m |
SFP-10G-LR-S | Single-mode fiber | 10 Gig | 10 km |
