Ask for availability
Description

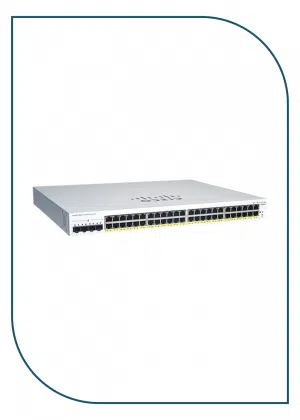

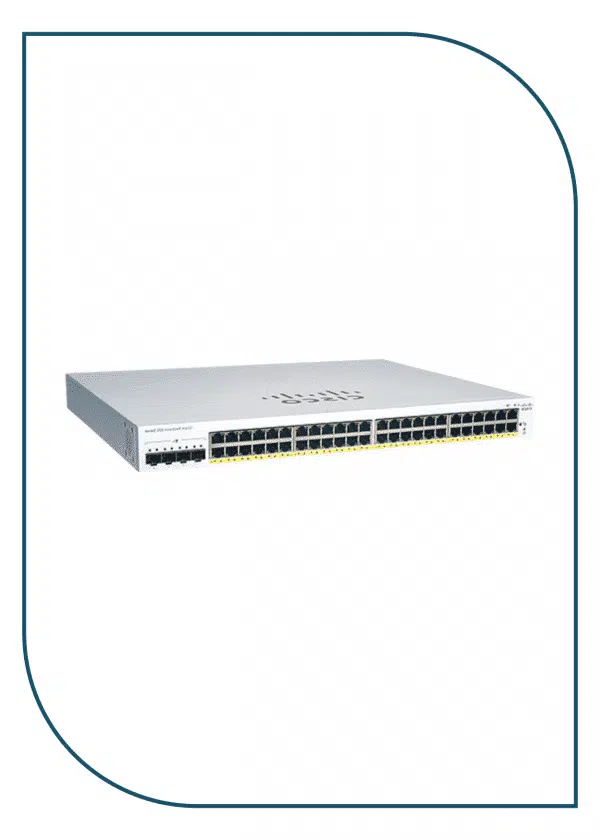

The Cisco CBS220-48T-4G-EU provides reliable business-class networking performance with intelligent management and enterprise-grade security features. Built for small and medium-sized businesses, this switch includes 48 Gigabit Ethernet ports and 4 dedicated 1G SFP uplink ports for flexible fiber connectivity and scalable network expansion.
As part of the Cisco Business 220 Series, the switch supports advanced Layer 2 switching capabilities including VLAN segmentation, QoS traffic prioritization, link aggregation, IPv6 support, ACL security policies, and intuitive web-based management tools. These features help businesses optimize network performance while maintaining secure and stable operations.
The CBS220-48T-4G-EU is ideal for office networks, schools, retail stores, hospitality environments, surveillance systems, and enterprise infrastructures requiring dependable Gigabit connectivity and fiber uplinks. Its rackmount design and energy-efficient operation make it suitable for professional networking environments.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco CBS220-48T-4G-EU |
| Product Series | Cisco Business 220 Series |
| Switch Type | Smart Managed Switch |
| Ports | 48 × Gigabit Ethernet RJ-45 |
| Uplink Ports | 4 × 1G SFP |
| PoE Support | No |
| Switching Capacity | 104 Gbps |
| Forwarding Rate | 77.38 Mpps |
| Layer Support | Layer 2 Smart Switching |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Security Features | ACL, 802.1X, Port Security |
| IPv6 Support | Yes |
| MAC Address Table | 8K Entries |
| Jumbo Frame Support | Up to 9KB |
| Management | Web GUI, SNMP |
| Mounting Type | Rack Mountable |
| Cooling | Smart Fan |
| Power Supply | Internal |
| Application | SMB Networks, Enterprise Offices, CCTV, Wireless Networks |
| Brand | Cisco |
Key Features
- 48 Gigabit Ethernet ports
- 4 dedicated 1G SFP uplinks
- Smart managed Layer 2 switch
- VLAN and QoS support
- Advanced business security features
- IPv6-ready infrastructure
- Rackmount enterprise design
- Reliable Cisco networking performance
- Ideal for office and surveillance networks
- Easy web-based management
Additional information
| Access Ports | 48 |
|---|---|
| Access Ports Speed | 1 G (RJ-45) |
| Forwarding Rate (Throughput) | 74.40 Mpps |
| Management Platform | Cisco Business Dashboard, Cisco Business Mobile App, Command line interface (CLI), Local Web GUI |
| Mounting Options | Rack Mount |
| POE | Not Support POE |
| Switch Layer | Layer 2 |
| Switching Capacity | 104 Gbps |
| Uplink Ports | 4 |
| UpLinks Speed | 1G |
