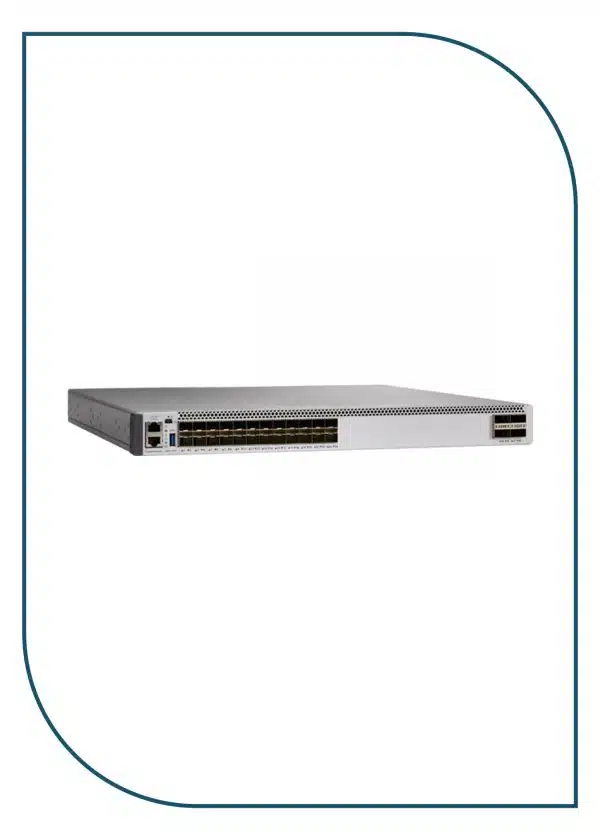

C9500-24Y4C-E Cisco Catalyst 9500 24 x 1 /10 /25G and 4-port 40/100G, Essential

C9500-24Y4C-E

Cisco Catalyst 9500 24 x 1 /10 /25G and 4-port 40/100G, Essential

WhatsApp Button Call for Price

Compare
Availability: Available on backorder
SKU:C9500-24Y4C-E

All prices include VAT

Description

C9500-24Y4C-E

Overview

C9500-24Y4C-E is a Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Ess. License. The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.

Quick Specs

Table 1 shows the Quick Specs.

Product Code C9500-24Y4C-E
Description Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Ess. License
Switching capacity Up to 2 Tbps
Forwarding rate Up to 1 Bpps
DRAM 16 G
Flash 16 G
Dimensions (H x W x D) 1.73 x 17.5 x 18.0 in
Rack units (RU) 1RU

Specification

C9500-24Y4C-E Specification

Performance specifications

Switching capacity

Up to 2 Tbps

Forwarding rate

Up to 1 Bpps

Total number of MAC addresses

Up to 82,000

Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes)

Up to 212,000 indirect + direct

Up to 90,000 host/ARP

Total number of IPv6 routes

Up to 212,000 indirect + direct

Up to 90,000 host

QoS ACL scale

Up to 16000

Security ACL scale

Up to 27000

FNF entries

Up to 98,000

DRAM

16 GB

Flash

16 GB

VLAN IDs

4000

Total Switched Virtual Interfaces (SVIs)

4000

Jumbo frame

9216 bytes

Power supply specifications

Power Supply Selection

C9K-PWR-650WAC-R or C9K-PWR-930WDC-R

Dimensions, physical specifications, weight, and MTBF

Dimensions (H x W x D)

1.73 x 17.5 x 18.0 in

Rack units (RU)

1 RU

Input voltage

90 to 264 VAC

Operating temperature

32° to 104°F (0° to 40°C)

Storage temperature

-4° to 149°F (-20° to 65°C)

Relative humidity operating and nonoperating noncondensing

Ambient (noncondensing) operating: 5% to 90%

Ambient (noncondensing) nonoperating and storage: 5% to 95%

Altitude

Operation up to 13,000 feet at 40°C

MTBF (hours)

336,780

Product Details

Catalyst 9500 25-G 24- and 48-port switches: C9500-24Y4C, C9500-48Y4C

· 24 and 48 ports of 25 G with rich campus features

· Cisco innovation extending SR reach to 300 million

· High performance, SFP28

· Secure segmentation with SD-Access

· MPLS Level 2/3 VPNs, MVPN; flexible design templates

· Enhanced Limited Lifetime Warranty (E-LLW)

Compare to Similar Item

Table 2 shows the comparison.

Product Code C9500-16X-A C9500-24Y4C-E
Description Catalyst 9500 16-port 10Gig switch, with Network Advantage Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Ess. License
Switching capacity Up to 480 Gbps Up to 2 Tbps
Forwarding rate Up to 360 Mpps Up to 1 Bpps
DRAM 16 G 16 G
Flash 16 G 16 G
Dimensions (H x W x D) 1.73 x 17.5 x 21.52 in 1.73 x 17.5 x 18.0 in
Rack units (RU) 1 RU 1RU
