C9407R
Overview
Cisco Catalyst 9400 Series 7 slot chassis. The Cisco Catalyst® 9400 Series switches are Cisco’s leading modular enterprise switching access platform built for security, IoT and cloud. The platform provides unparalleled investment protection with a chassis architecture that is capable of supporting up to 9Tbps of system bandwidth and unmatched power delivery for high density IEEE 802.3BT (60W PoE).
Quick Specs

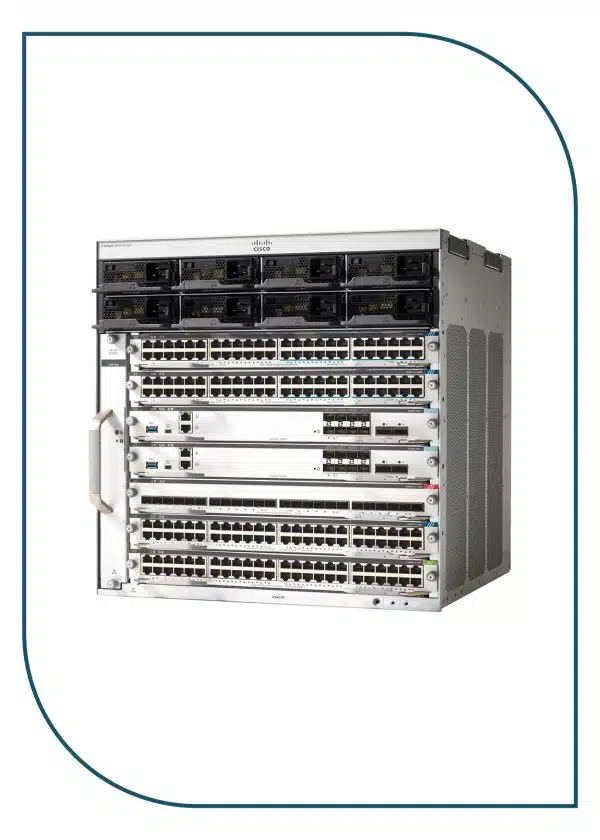

Figure 1 shows the appearance of C9407R.
C9407R
Table 1 shows the Quick Specs.
| Feature | Cisco Catalyst C9407R |
| Total number of slots | 7 |
| Line-card slots | 5 |
| Supervisor engine slots | 2 |
| Dedicated supervisor engine slot numbers | 3 and 4 |
| Supervisor engine redundancy | Yes |
| Supervisor engines supported |
C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y |
| Maximum PoE per slot | 2880W |
| Maximum Bandwidth scalability per line-card slot | Up to 480 Gbps on all slots |
| Number of power supply bays | 8 |
| AC input power | Yes |
| Integrated PoE | Yes |
| Power supplies supported | 3200W AC, 2100W AC |
| Number of fan-tray bays | 1 |
| Location of 19-inch rack-mount | Front |
| Dimensions (H x W x D) | 17.41 x 17.30 x 16.30 in. (44.22 x 43.94 x 41.40cm) |
| Rack Units (RU) | 10 RU |
| Chassis weight (with fan tray) | 63.0 lb (28.58 kg) |
| Mounting | 19-in rack compatible (19-in. rack and cable guide hardware included) |
| Regulatory compliance | CE Marking |
| Safety | ● UL 60950-1
● CAN/CSA-C222.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950.1 ● IEEE 802.3 |
| EMC | ● 47 CFR Part 15
● CISPR22 Class A ● KN 32 Class A ● EN 300 386 V1.6.1 ● EN 55022 Class A ● EN 55032 Class A ● CISPR 32 Class A ● EN61000-3-2 ● EN61000-3-3 ● ICES-003 Class A ● TCVN 7189 Class A ● V-3 Class A ● CNS13438 Class A ● CISPR24 ● EN 300 386 ● EN55024 ● TCVN 7317 ● KN35 |
| Industry EMC, safety, and environmental standards | ● NEBS: Operating temperature: -5 to 55C
● Relative Humidity: 10-93% ● Operating Altitude: up to 1829 m (6000 ft) at 55C ● ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations. ● SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue) ● ETS 300 019-2-1, Class 1.2 Storage ● ETS 300 019-2-2, Class 2.3 Transportation ● ETS 300 019-2-3, Class 3.2 Stationary ● EN50121-4 ● EN 300 386 |
| ROHS compliance | ROHS5 |
The Modules, Cards
Table 2 shows the recommended elements for the C9407R.
|
Model |
Description |
|
Modules |
|
|
Cisco Catalyst 9400 Series Supervisor 1 Module |
|
| C9400-SUP-1XL-Y | Cisco Catalyst 9400 Series Supervisor 1XL-Y with 25G Module |
| C9400-SUP-1XL-Y/2 | Cisco Catalyst 9400 Series Redundant Supervisor 1XL-Y with 25G Module |
|
Power Supply |
|
|
Cisco Catalyst 9400 Series 3200W AC Power Supply |
|
| C9400-PWR-2100AC | Cisco/Cisco Switches/Cisco Switch Catalyst 9400/Cisco Switch Catalyst 9400 Accessories
|
