C9300-24P-A Catalyst Cisco 9300 24-port PoE+, Network Advantage

C9300-24P-A

Catalyst 9300 Cisco 24-port PoE+, Network Advantage

WhatsApp Button Call for Price

Compare
Availability: 2 in stock (can be backordered)
SKU:C9300-24P-A

All prices include VAT

Description

C9300-24P-A

Overview

The Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. C9300-24P-A is 24-port PoE+, Network Advantage Switch of 9300 series. Catalyst 9300 Series are the next generation of the industry’s most widely deployed switching platform. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

Quick Spec

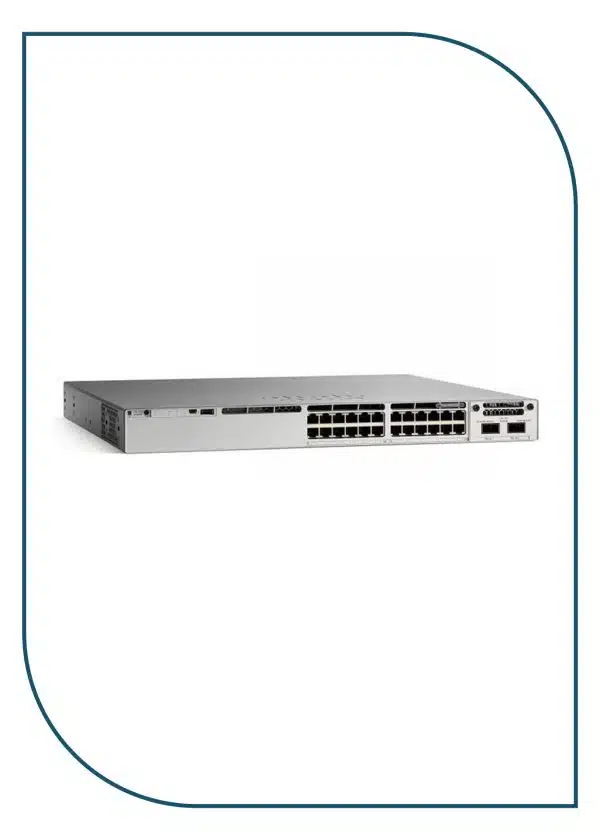

Figure 1 shows the appearance of C9300-24P-A.

CISCO-C9300-24P-A-APPEARANCE

Table 1 shows the quick spec.

Product Code C9300-24P-A
Product Description Catalyst 9300 24-port PoE+, Network Advantage
Total 10/100/1000 or Multigigabit copper ports 24 POE+
Default AC power supply 715W AC
Available PoE power 445W
Dimensions (H x W x D) 1.73 x 17.5 x 17.5 Inches
Weight 16.33 Pounds

Product Details

Figure 2 shows the front view of C9300-24P-A.

The module slot on the right of the front panl dosen’t include the module. Network Modules (providing 1G/10G/40G ports) should be purchased seperately.

CISCO-C9300-24P-A-FRONT

Note:

Blue Beacon-for easy of serviceability
optional wireless console access with Bluetooth
Best HA-NSF/SSO
24 1G ports

Figure 3 shows the rear view of C9300-24P-A.

CISCO-C9300-24P-A-REAR

Note:

Local Storage USB 3.0 SSD pluggable
Stackwise-480-Industry’s highest stack bandwidth
Modular,Redundant Fans
Intellgent Power management-Cisco StackPower
Optional Power Supply
High- Efficiency Power Supply

The Accessories

Table 2 shows the recommended elements for the C9300-24P-A.

Product number Description
C9300-NM-4G 9300 Series 4x 1G Network Module
C9300-NM-8X 9300 Series 8x 10G Network Module
C9300-NM-2Q 9300 Series 2x 40G Network Module
C9300-NM-2Q= Catalyst 9300 2 x 40GE Network Module, spare
C9300-NM-4M 9300 Series 4x Multigigabit Network Module
C9300-NM-4M= Catalyst 9300 4 x MGig Network Module, spare

Compare to Similar Items

Table 3 shows the comparison between C9300-24P-A and C9300-24T-A.

Product Code C9300-24P-A C9300-24T-A
Product Description Catalyst 9300 24-port PoE+, Network Advantage Catalyst 9300 24-port data only, Network Advantage
Total 10/100/1000 or Multigigabit copper ports 24 POE+ 24
Default AC power supply 715W AC 350W AC
Available PoE power 445W
Dimensions (H x W x D) 1.73 x 17.5 x 17.5 Inches 1.73 x 17.5 x 17.5 Inches
Weight 16.33 Pounds 16.33 Pounds
