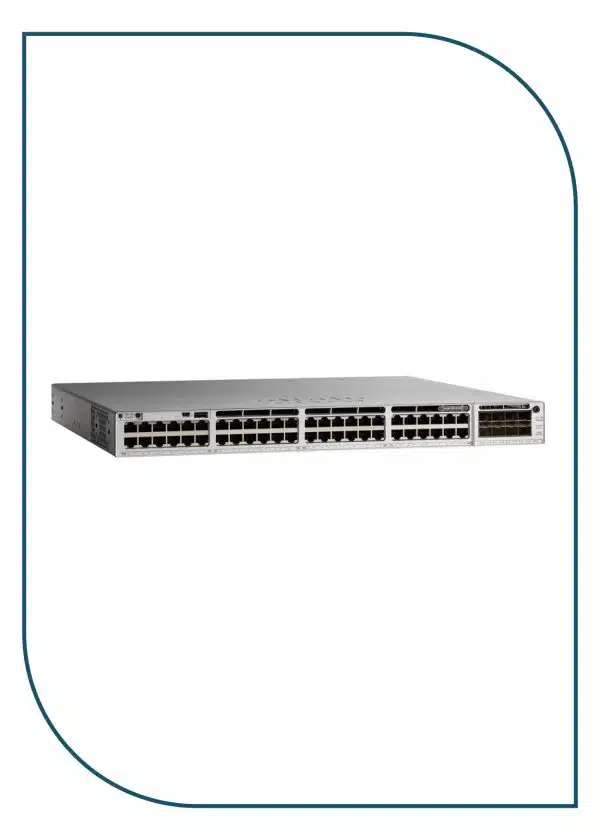

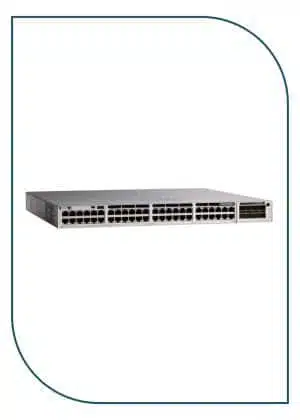

C9200L-48T-4X-E Catalyst 9200L 48-port Data 4x10G uplink Switch, Network Essentials

C9200L-48T-4X-E

Specification

C9200L-48T-4X-E Specification

Downlinks total 10/100/1000 or PoE+ copper ports 48 ports data
Uplink configuration 4x 10G fixed uplinks
Default primary AC power supply PWR-C5-125WAC
Fans Fixed redundant
Software Network Essentials
Chassis Dimensions 1.73 x 17.5 x 11.3 in

4.4 x 44.5 x 28.8 cm

Virtual Networks 1
Stacking bandwidth 80 Gbps
Total number of MAC addresses 16,000
Total number of IPv4 routes (ARP plus learned routes) 11,000 (8,000 direct routes and 3,000 indirect routes)
IPv4 routing entries 3,000
IPv6 routing entries 1,500
Multicast routing scale 1,000
QoS scale entries 1,000
ACL scale entries 1,500
Packet buffer per SKU 6 MB buffers for 24- or 48-port Gigabit Ethernet models
Flexible NetFlow (FNF) entries 16,000 flows on 24- and 48-port Gigabit Ethernet models
DRAM 2 GB
Flash 4 GB
VLAN IDs 1024
Total Switched Virtual Interfaces (SVIs) 512
Jumbo frames 9198 bytes
Wireless bandwidth per switch N/A
Switching capacity 176 Gbps
Forwarding rate 261.9 Mpps
Mean time between failures (hours) 503,400

WhatsApp Button Call for Price

Compare
Availability: Available on backorder
SKU:C9200L-48T-4X-E

All prices include VAT

Description

C9200L-48T-4X-E

Overview

C9200L-48T-4X-E is the Catalyst 9200L 48-port Data 4x10G uplink Switch, with Network Essentials software. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.

Quick Spec

Table 1 shows the quick spec.

Model C9200L-48T-4X-E
Downlinks total 10/100/1000 or PoE+ copper ports 48 ports data
Uplink configuration 4x 10G fixed uplinks
Default primary AC power supply PWR-C5-125WAC
Fans Fixed redundant
Software Network Essentials
Stacking bandwidth 80 Gbps
DRAM 2 GB
Flash 4 GB
Switching capacity 176 Gbps
Forwarding rate 261.9 Mpps
Chassis Dimensions 1.73 x 17.5 x 11.3 in

4.4 x 44.5 x 28.8 cm

Product Details

Catalyst 9200 series provides these highlights:

●   Up to 48 ports of full Power over Ethernet Plus (PoE+) capability

●   Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks

●   Flexible downlink options with data or PoE+

●   Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps

●   UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure

●   Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems

●   Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access

●   Advanced network monitoring using Full Flexible NetFlow

●   Cisco Software-Defined Access (SD-Access):

◦     Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)

◦     Network assurance and improved resolution time through Cisco DNA Center™

●   Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network

●   Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry

●   ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries

Supported Products

Table 2 shows the recommended supported products.

StackWise-80 and StackWise-160 Kit and cables

Product number

Product description

C9200-STACK-KIT=

C9200 Stack Kit Spare

C9200L-STACK-KIT=

C9200L Stack Kit Spare

STACK-T4-50CM

50CM Type 3 Stacking Cable

STACK-T4-1M

1M Type 3 Stacking Cable

STACK-T4-3M

3M Type 3 Stacking Cable

Power supplies

Product Number

Product Description

PWR-C5-125WAC/2=

125WAC power supply spare

Compare to Similar Items

Table 3 shows the comparison.

Product number

Product description

C9200L-48T-4X-A Catalyst 9200L 48-port Data 4x10G uplink Switch, Network Advantage
C9200L-48T-4X-E Catalyst 9200L 48-port Data 4x10G uplink Switch, Network Essentials
C9200L-48P-4X-A Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Advantage
C9200L-48P-4X-E Catalyst 9200L 48-port PoE+ 4x10G uplink Switch, Network Essentials
