Description

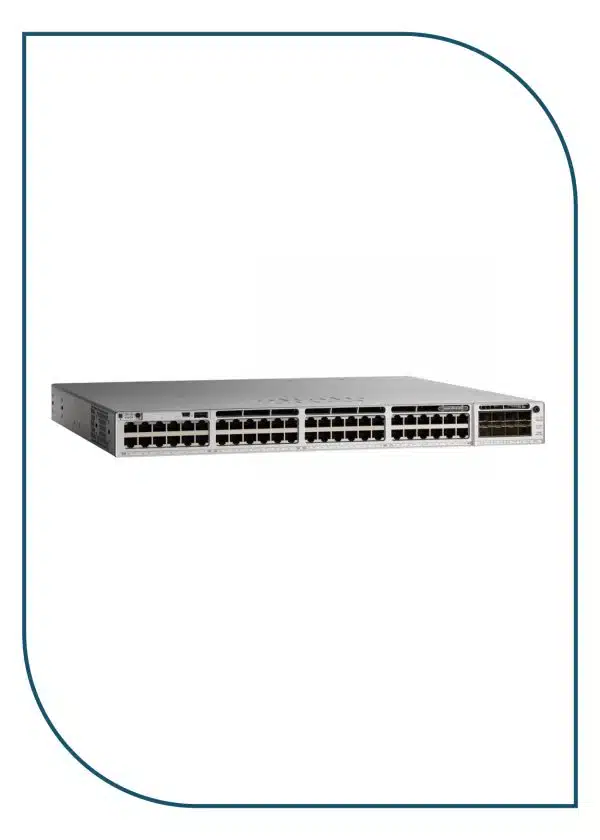

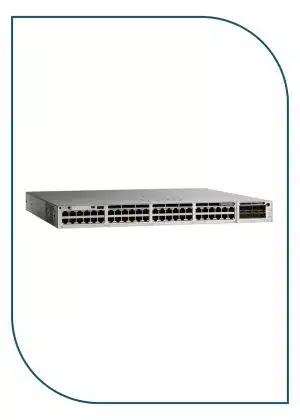

C9200L-48T-4G-E Overview
C9200L-48T-4G-E is the Catalyst 9200L 48-port Data 4x1G uplink Switch, with Network Essentials software. Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
Quick Spec
Table 1 shows the quick spec.
Model | C9200L-48T-4G-E |
Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports data |
Uplink configuration | 4x 1G fixed uplinks |
Default primary AC power supply | PWR-C5-125WAC |
Fans | Fixed redundant |
Software | Network Advantage |
Stacking bandwidth | 80 Gbps |
DRAM | 2 GB |
Flash | 4 GB |
Switching capacity | 104 Gbps |
Forwarding rate | 154.76 Mpps |
Chassis Dimensions | 1.73 x 17.5 x 11.3 in
4.4 x 44.5 x 28.8 cm |
Weight | 4.35 Kg |
Product Details
Catalyst 9200 series provides these highlights:
● Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
● Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
● Flexible downlink options with data or PoE+
● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
● UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
● Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
● Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
● Advanced network monitoring using Full Flexible NetFlow
● Cisco Software-Defined Access (SD-Access):
◦ Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
◦ Network assurance and improved resolution time through Cisco DNA Center™
● Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
● Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
● ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries
Supported Products
Table 2 shows the recommended supported products.
StackWise-80 and StackWise-160 Kit and cables |
|
Product number |
Product description |
C9200 Stack Kit Spare |
|
C9200L Stack Kit Spare |
|
50CM Type 3 Stacking Cable |
|
1M Type 3 Stacking Cable |
|
3M Type 3 Stacking Cable |
|
Power supplies |
|
Product Number |
Product Description |
125WAC power supply spare |
Compare to Similar Items
Table 3 shows the comparison.
Product number |
Product description |
C9200L-48T-4G-A | Catalyst 9200L 48-port Data 4x1G uplink Switch, Network Advantage |
C9200L-48T-4G-E | Catalyst 9200L 48-port Data 4x1G uplink Switch, Network Essentials |
C9200L-48P-4G-A | Catalyst 9200L48-port PoE+ 4x1G uplink Switch, Network Advantage |
C9200L-48P-4G-E | Catalyst 9200L48-port PoE+ 4x1G uplink Switch, Network Essentials |
