Description

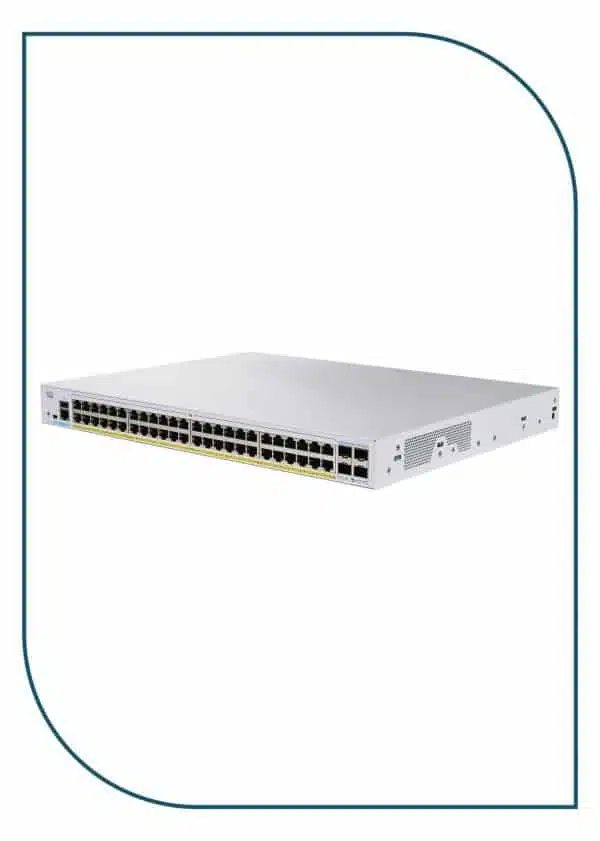

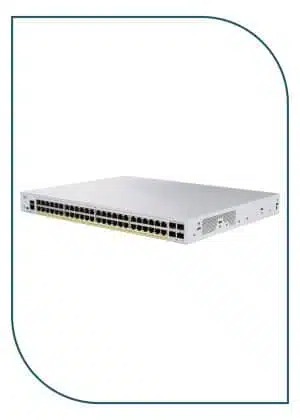

The Cisco C9200L-48P-4X-A is part of the Cisco Catalyst 9200L Series, designed to extend enterprise-grade networking capabilities to branch offices and campus access networks. The switch features 48 Gigabit Ethernet Full PoE+ ports and 4 fixed 10G SFP+ uplink ports, providing high-speed connectivity and flexible deployment options for modern enterprise environments.
Powered by Cisco Network Advantage licensing, the switch supports advanced Layer 3 routing services including OSPF, EIGRP, BGP, VRF, multicast routing, policy-based routing, and network segmentation. These capabilities help organizations build scalable and secure enterprise infrastructures.
The integrated Full PoE+ capability allows the switch to power IP phones, wireless access points, surveillance cameras, and IoT devices through Ethernet cables, simplifying installations and reducing infrastructure costs. The platform supports up to 48 PoE+ ports with enterprise-grade reliability.
Built on Cisco IOS XE, the C9200L-48P-4X-A provides automation, telemetry, programmability, and integration with Cisco DNA Center for centralized network management. The switch also supports StackWise technology with stacking bandwidth up to 80 Gbps, enabling simplified scalability and resiliency.
Advanced security features such as MACsec encryption, Secure Boot, TrustSec, ACLs, and IEEE 802.1X authentication help protect enterprise infrastructures from modern cyber threats while maintaining secure access across the network.
The Cisco C9200L-48P-4X-A is ideal for enterprise campuses, educational institutions, healthcare facilities, government organizations, hospitality environments, and branch offices requiring secure and reliable PoE+ access switching.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco C9200L-48P-4X-A |
| Product Series | Cisco Catalyst 9200L Series |
| Software License | Network Advantage |
| Switch Type | Managed Layer 3 Switch |
| Ports | 48 × Gigabit Ethernet PoE+ |
| Uplink Ports | 4 × 10G SFP+ |
| PoE Type | Full PoE+ |
| PoE Budget | Up to 740W |
| Layer Support | Layer 2 / Layer 3 |
| Routing Features | OSPF, EIGRP, BGP, VRF, Static Routing |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 261.9 Mpps |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Security Features | MACsec, TrustSec, ACL, 802.1X |
| IPv4 Support | Yes |
| IPv6 Support | Yes |
| Operating System | Cisco IOS XE |
| Stack Support | Cisco StackWise |
| Stacking Bandwidth | 80 Gbps |
| DRAM | 2 GB |
| Flash Memory | 4 GB |
| Power Supply | PWR-C5-1KWAC |
| Fans | Fixed Redundant |
| Mounting Type | Rack Mountable |
| Application | Enterprise Networks, VoIP, CCTV, Wireless Networks |
| Brand | Cisco |
Key Features
- 48 Gigabit Ethernet Full PoE+ ports
- 4 fixed 10G SFP+ uplinks
- Cisco Network Advantage license
- Advanced Layer 3 routing protocols
- Up to 740W PoE budget
- Cisco StackWise support
- Cisco IOS XE operating system
- Cisco DNA Center integration
- Enterprise-grade security features
- Ideal for VoIP, CCTV, and Wi-Fi deployments
