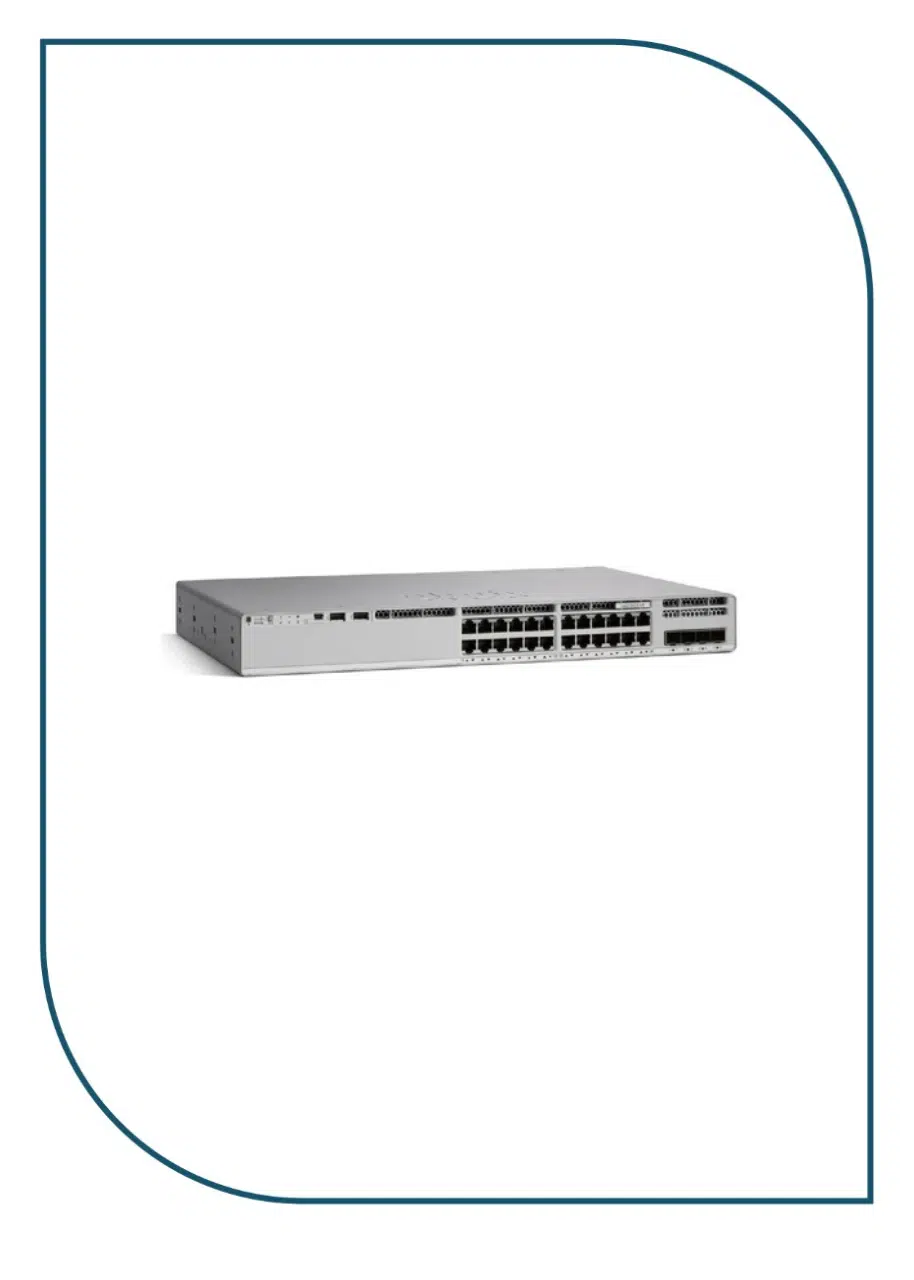

Cisco Catalyst (C9200L-24T-4G-A) 24-port switch
The Cisco Catalyst C9200L-24T-4G-A is a 24-port gigabit switch + 4 x 1G fixed uplinks, requires mandatory DNA advantage license.
Description
the Cisco C9200L-24T-4G-A is part of the Cisco Catalyst 9200L Series, designed to extend enterprise-grade networking capabilities to branch offices, campus access networks, and growing business environments. Featuring 24 Gigabit Ethernet data ports and 4 fixed 1G SFP uplinks, the switch provides reliable connectivity and scalable network expansion.
Powered by Cisco Network Advantage software, the switch delivers advanced Layer 3 routing capabilities including OSPF, EIGRP, BGP, multicast services, VRF, policy-based routing, and enhanced network segmentation. These features make it ideal for organizations requiring secure, intelligent, and scalable networking infrastructures.
The C9200L-24T-4G-A supports Cisco StackWise-160 technology, enabling multiple switches to operate as a single logical unit with stacking bandwidth up to 160 Gbps. This improves resiliency, simplifies management, and supports future network growth.
Built on Cisco IOS XE, the switch offers advanced automation, telemetry, programmability, and integration with Cisco DNA Center. Security features such as MACsec encryption, 802.1X authentication, ACLs, Secure Boot, and Trustworthy Solutions help protect enterprise infrastructures from evolving cyber threats.
The Cisco C9200L-24T-4G-A is ideal for enterprise campuses, government organizations, healthcare facilities, educational institutions, and corporate branch offices requiring secure and reliable Layer 3 access switching.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco C9200L-24T-4G-A |
| Product Series | Cisco Catalyst 9200L Series |
| Software License | Network Advantage |
| Switch Type | Managed Layer 3 Switch |
| Ports | 24 × Gigabit Ethernet Data Ports |
| Uplink Ports | 4 × 1G SFP |
| PoE Support | No |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Mpps |
| Layer Support | Layer 2 / Layer 3 |
| Routing Features | OSPF, EIGRP, BGP, RIP, Static Routing |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Security Features | MACsec, ACL, 802.1X, Secure Boot |
| IPv4 Support | Yes |
| IPv6 Support | Yes |
| Stack Support | Cisco StackWise-160 |
| Stacking Bandwidth | Up to 160 Gbps |
| DRAM | 2 GB |
| Flash Memory | 4 GB |
| Management | CLI, SNMP, Cisco DNA Center |
| Power Supply | Internal |
| Mounting Type | Rack Mountable |
| Application | Enterprise Networks, Campus Networks, Branch Offices |
| Brand | Cisco |
Key Features
- 24 Gigabit Ethernet data ports
- 4 dedicated 1G SFP uplinks
- Cisco Network Advantage license
- Advanced Layer 3 routing protocols
- Cisco StackWise-160 support
- MACsec encryption and enterprise security
- Cisco DNA Center integration
- IPv4 and IPv6 support
- High availability and resiliency
- Ideal for enterprise campus deployments
