Description

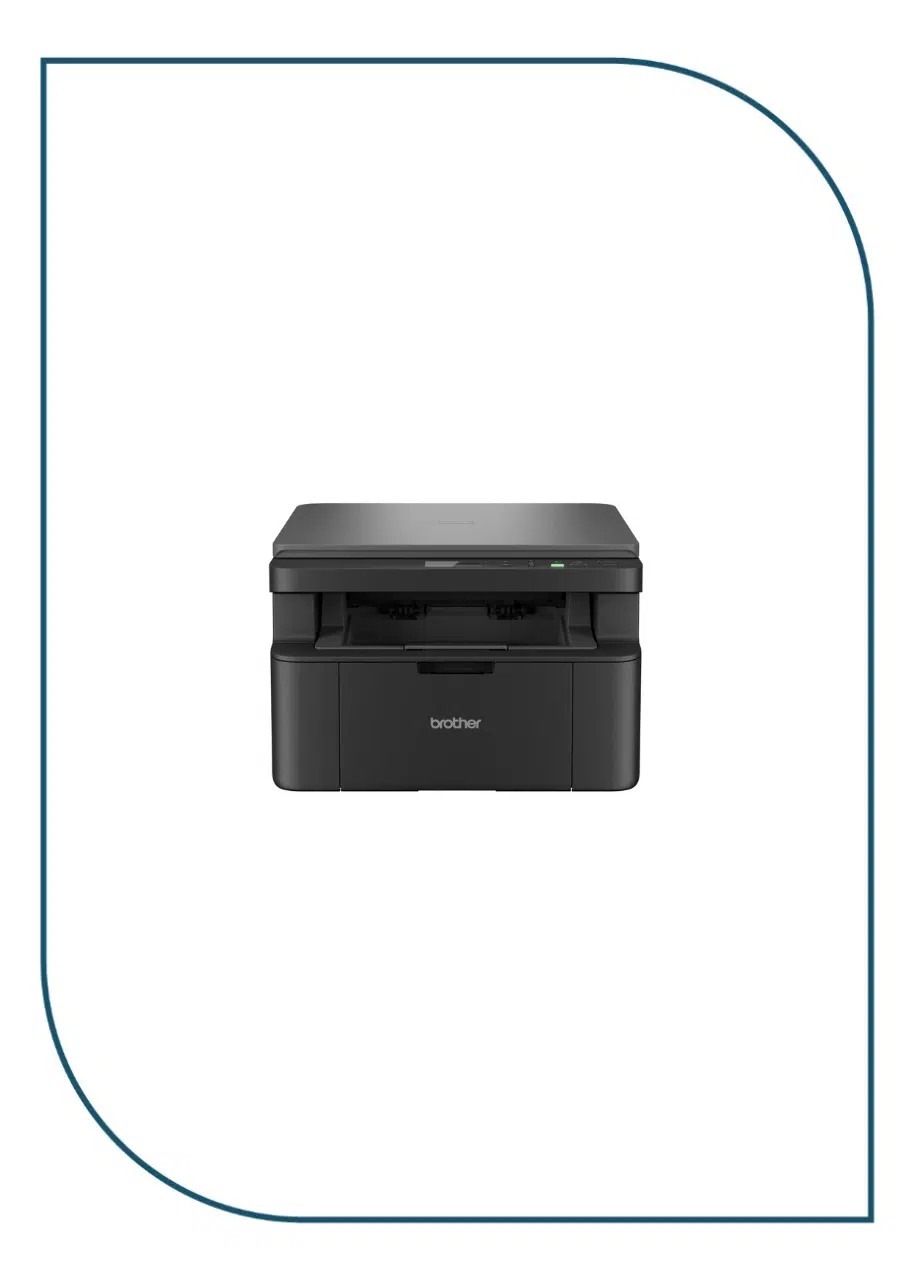

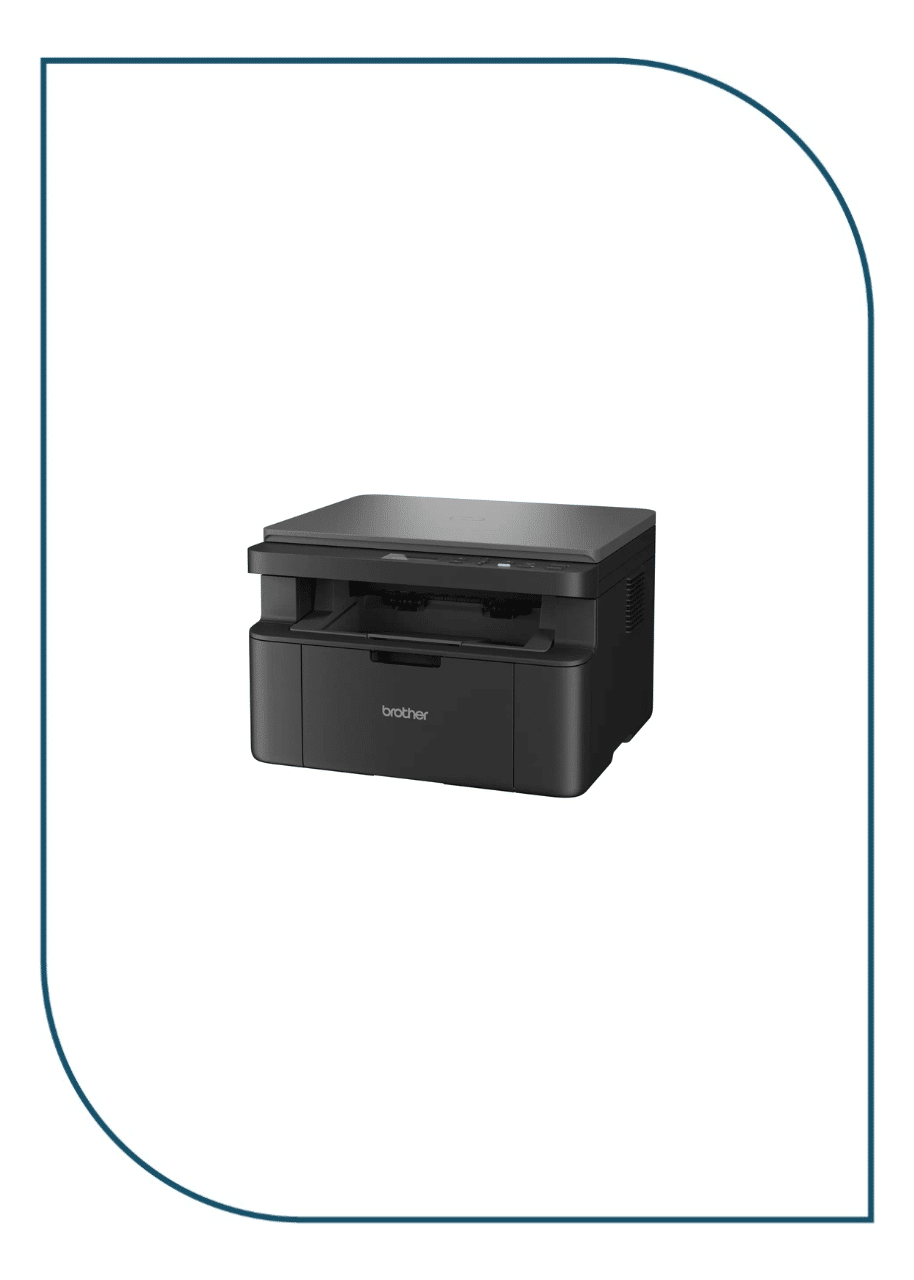

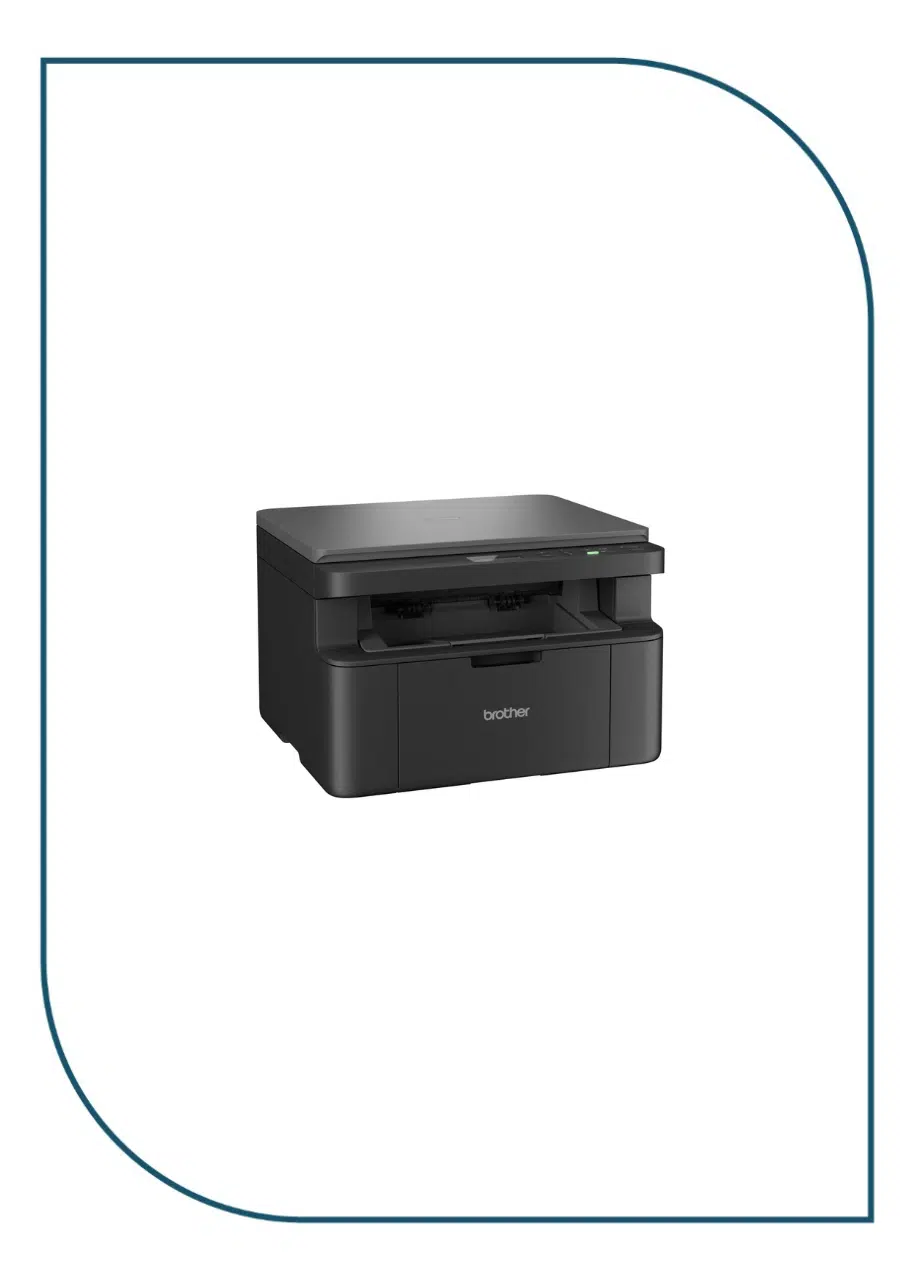

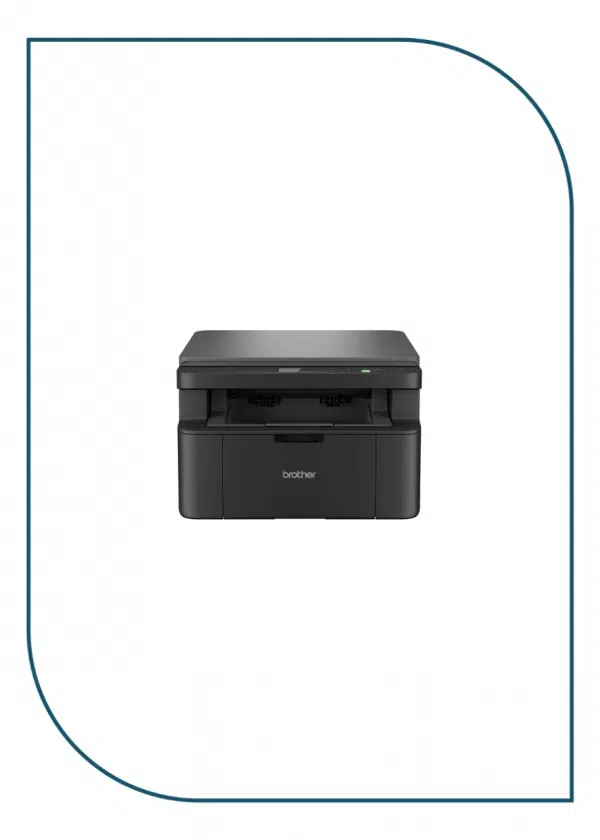

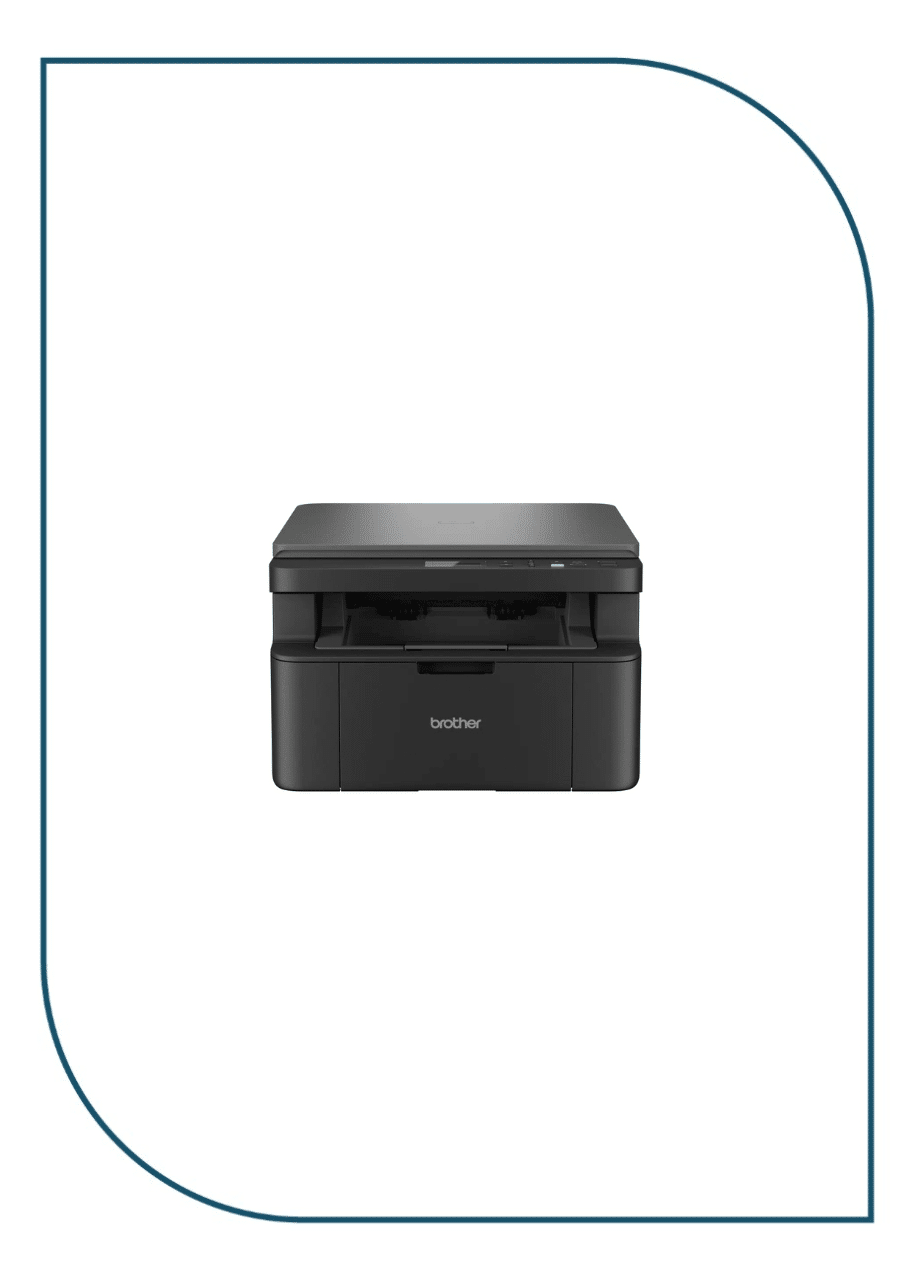

DCP-L1632W
Basic Specs
Functions
Print, Scan, Copy
Printer Type
Laser Printer
Product Dimensions (Width X Depth X Height)
385 mm × 340 mm × 255 mm
Weight
6.7 kg
Print Speed
Up to 20 (A4) / Up to 21 (Letter) ppm
Paper Type
Plain Paper, Recycled Paper
Paper Size
A4, Letter, B5 (JIS), B5 (IOS), A5, A5 (Long Edge), Executive, Legal, Folio, 16K (195×270 mm)
Maximum Paper Capacity
Up to 150 sheets of 80 gsm plain paper
Print Resolution
Up to 2400 x 600 dpi (HQ1200 technology)
Paper handling
Tray #1 – Paper Type
Plain Paper, Recycled Paper
Tray #1 – Maximum Paper Weight
65 to 105 gsm (17 – 28 lb.)
Tray #1 – Maximum Paper Capacity
Up to 150 sheets of 80 gsm plain paper
Tray #1 – Paper Size
A4, Letter, Legal, Folio, Executive, A5, A5(Long Edge), B5(JIS), B5(ISO),16K(195x270mm)
Paper Output
Up to 50 sheets of 80 gsm plain paper (face-down delivery to the face-down output paper tray)
Copy
Colour / Monochrome
Yes / Yes
Enlarge/ Reduce
25% to 400% (in increments of 1%)
Resolution
Up to 600 x 600 dpi
Scan
Colour / Monochrome
Yes / Yes
Resolution – Interpolated
Up to 19,200 x 19,200 dpi
Resolution – Scanner Glass
Up to 600 x 1200 dpi
Document Scanning Width / Length – Scanner Glass
A4: 204 mm
Letter: 210 mm
Connectivity
WiFi Direct
Yes
Connectivity
Hi-SpeedUSB2.0, Ethernet 10Base-T/100Base-TX, IEEE 802.11a/b/g/n (Infrastructure Mode), IEEE 802.11a/g/n (Wi-Fi Direct)
Network
Wireless Network Security
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES)
*Wi-Fi Direct supports WPA2-PSK (AES) only.
Wireless Setup Support Utility – WPS
Yes
Display & Memory
Display Type
2 Lines LCD (16 characters)
Memory Capacity
128 MB
Operation
Power Source
220 – 240 V AC 50/60 Hz
Power Consumption – Printing
Approximately 380 W
Power Consumption – Ready
Approximately 40 W
Power Consumption – Sleep
Approximately 2.7 W
Power Consumption – Power Off
Approximately 0.28 W
Supported Operating Systems
Supported OS
Windows 10, Windows 11, Windows Server 2016, Windows Server 2019, Windows Server 2022
Linux
