Description

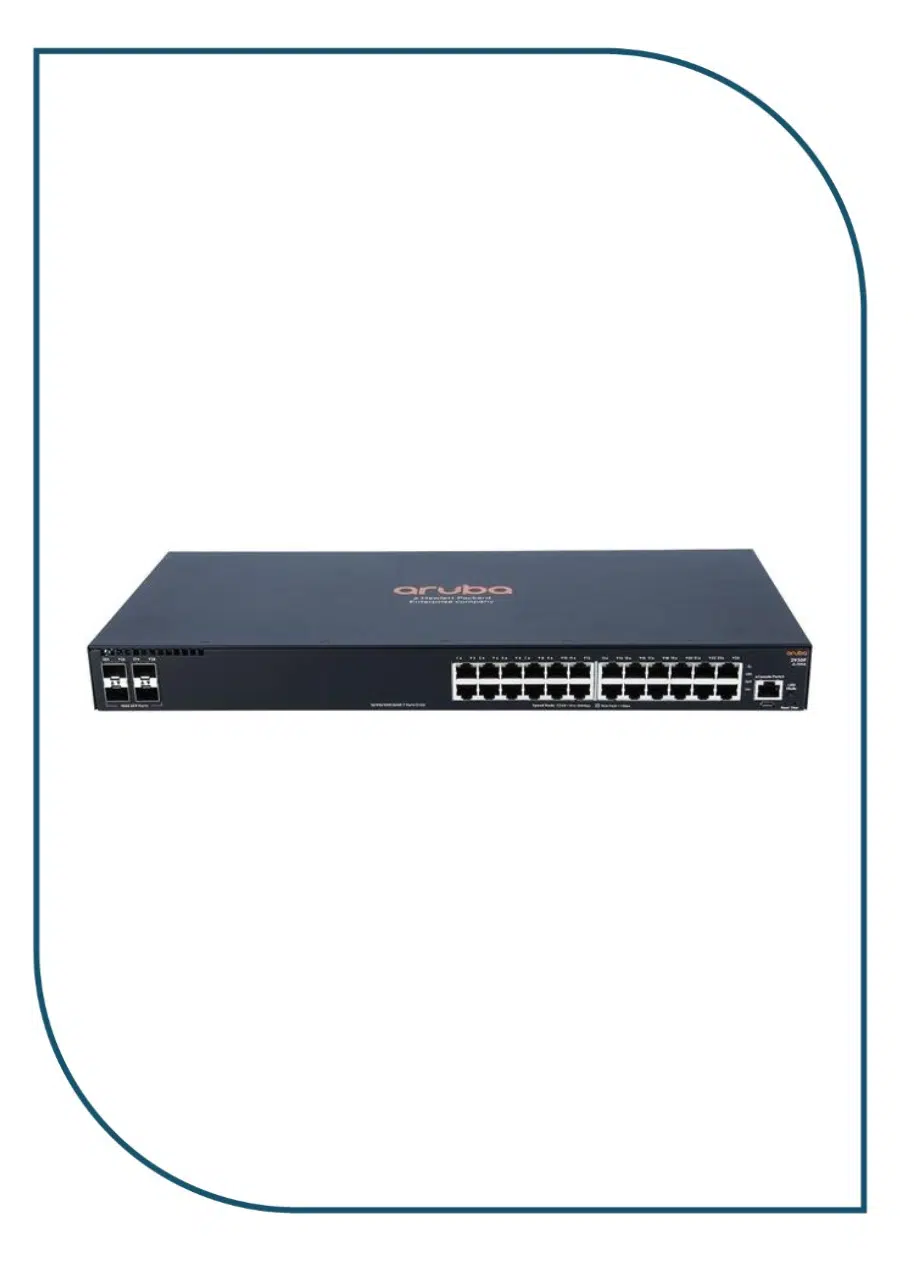

The Aruba JL259A 2930F 24G 4SFP Switch is a high-performance Layer 3 managed access switch designed for enterprise campus networks, branch offices, and SMB environments. It features 24 Gigabit Ethernet RJ45 ports and 4 dedicated Gigabit SFP uplink ports, providing reliable wired connectivity and flexible fiber uplinks.
Powered by a dual-core ARM processor with 1 GB DDR3 memory, the switch delivers a 56 Gbps switching capacity and 41.7 Mpps forwarding performance for demanding business applications. It supports advanced Layer 2 and Layer 3 networking features including VLANs, static routing, RIP, IPv6, QoS, ACLs, and enterprise-grade security.
The JL259A integrates seamlessly with Aruba AirWave, Aruba Central, and HPE IMC for centralized network management, monitoring, and automation. With an internal power supply and 1U rack-mount design, it is an excellent solution for organizations requiring secure, scalable, and easy-to-manage network infrastructure.
| Specification | Details |
|---|---|
| Manufacturer | Aruba (HPE Networking) |
| Part Number | JL259A |
| Product Series | Aruba 2930F |
| Product Type | Layer 3 Managed Ethernet Switch |
| Ethernet Ports | 24 × 10/100/1000 Gigabit RJ45 |
| Uplink Ports | 4 × 1GbE SFP |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.7 Mpps |
| Layer Support | Layer 2 & Layer 3 |
| Processor | Dual-Core ARM Cortex-A9 @ 1016 MHz |
| Memory | 1 GB DDR3 SDRAM |
| Flash Memory | 4 GB eMMC |
| Packet Buffer | 12.38 MB |
| MAC Address Table | 32,768 Entries |
| Routing Table | Up to 10,000 IPv4 / 5,000 IPv6 Routes |
| Management | Web GUI, CLI, SNMP, Aruba AirWave, Aruba Central, IMC |
| Console Port | RJ45 / Micro-USB |
| Power Supply | Internal PSU |
| Cooling | Fan-Cooled |
| Fanless | No |
| PoE | No |
| Mounting | 1U Rack Mount |
| Power Consumption | 29.3 W (Maximum), 19.5 W (Idle) |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Dimensions | 44.2 × 20.0 × 4.4 cm |
| Weight | Approx. 2.4 kg |
| Operating Temperature | 0°C to +45°C |
| Typical Applications | Enterprise LAN, Branch Offices, Campus Networks, SMB, Data Centers |
