Description

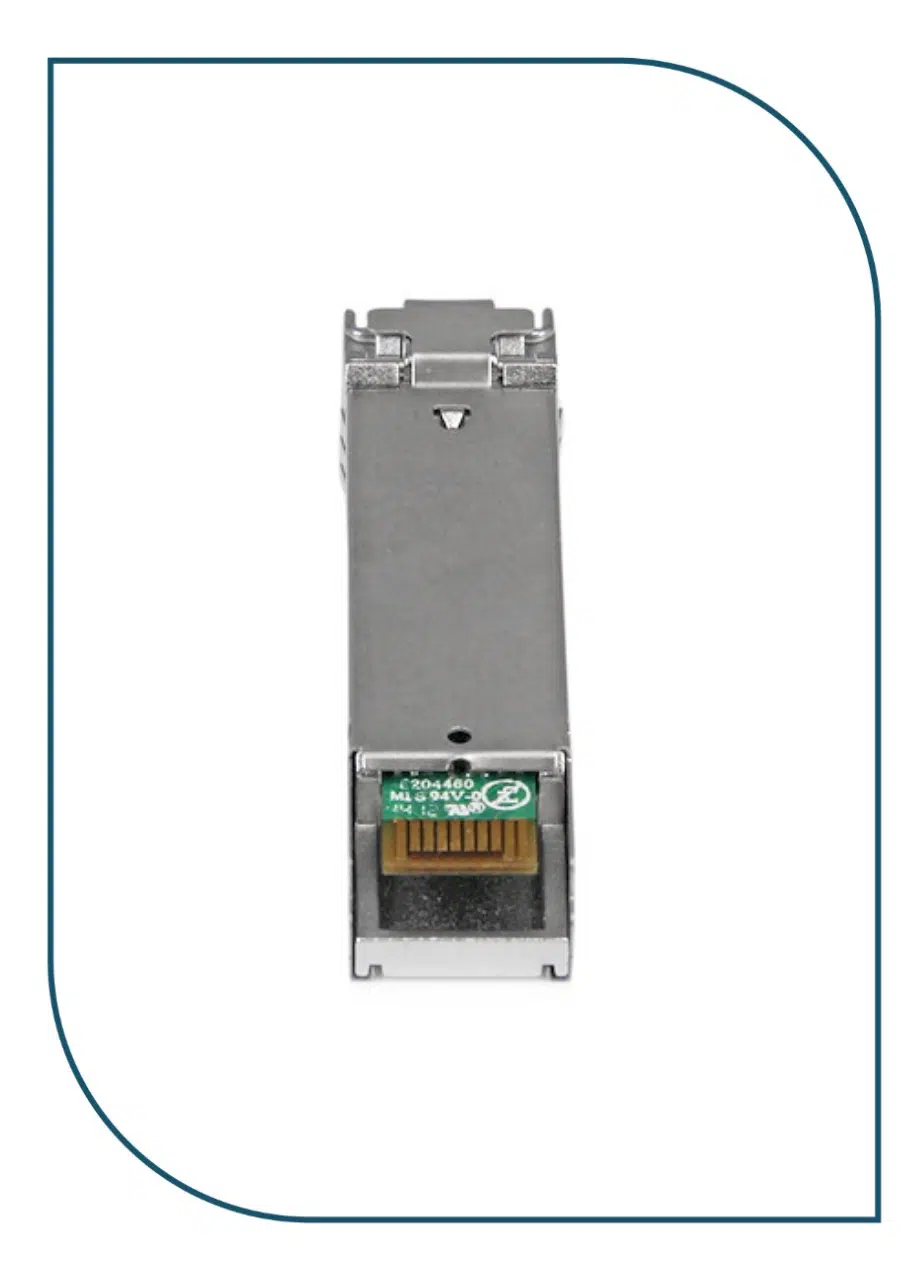

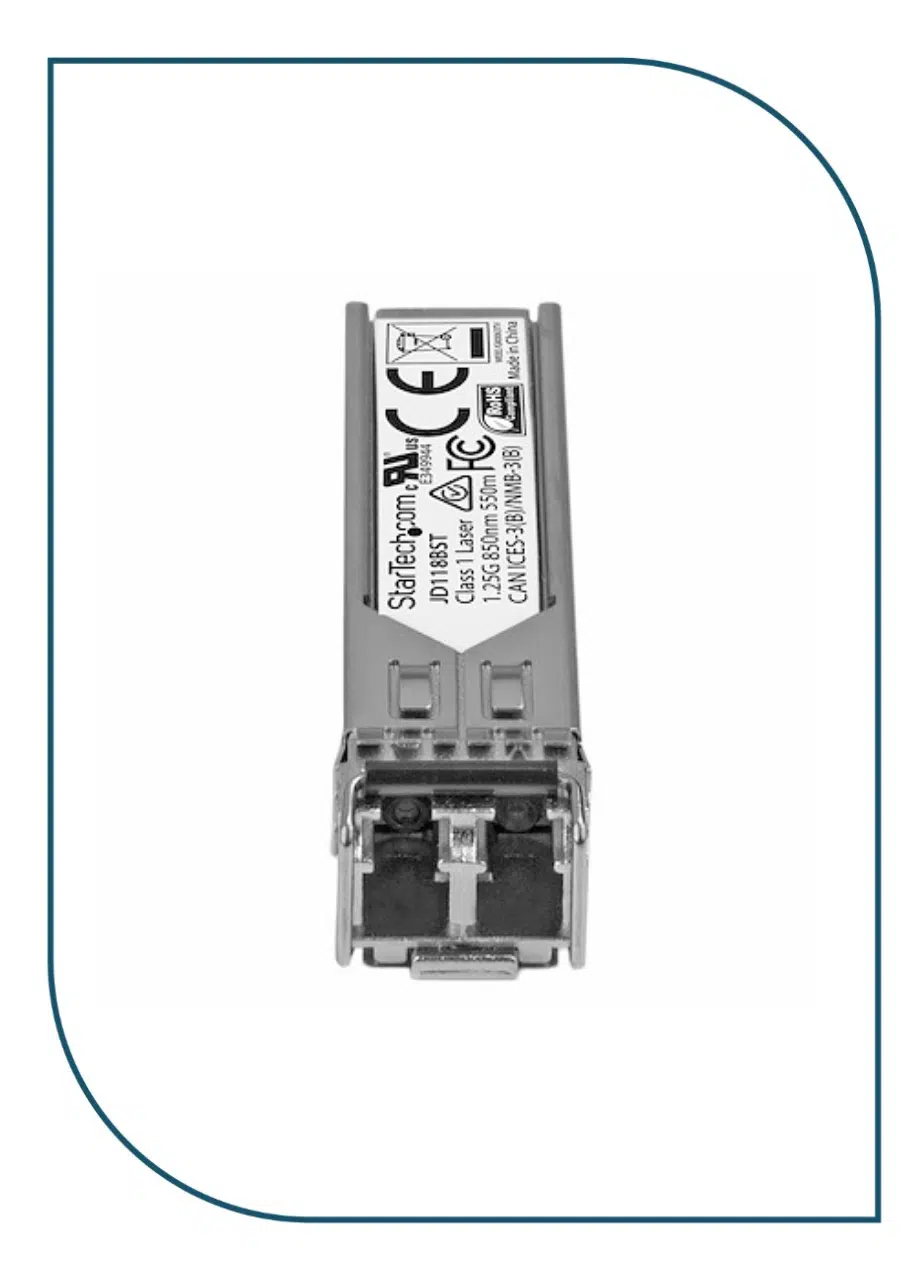

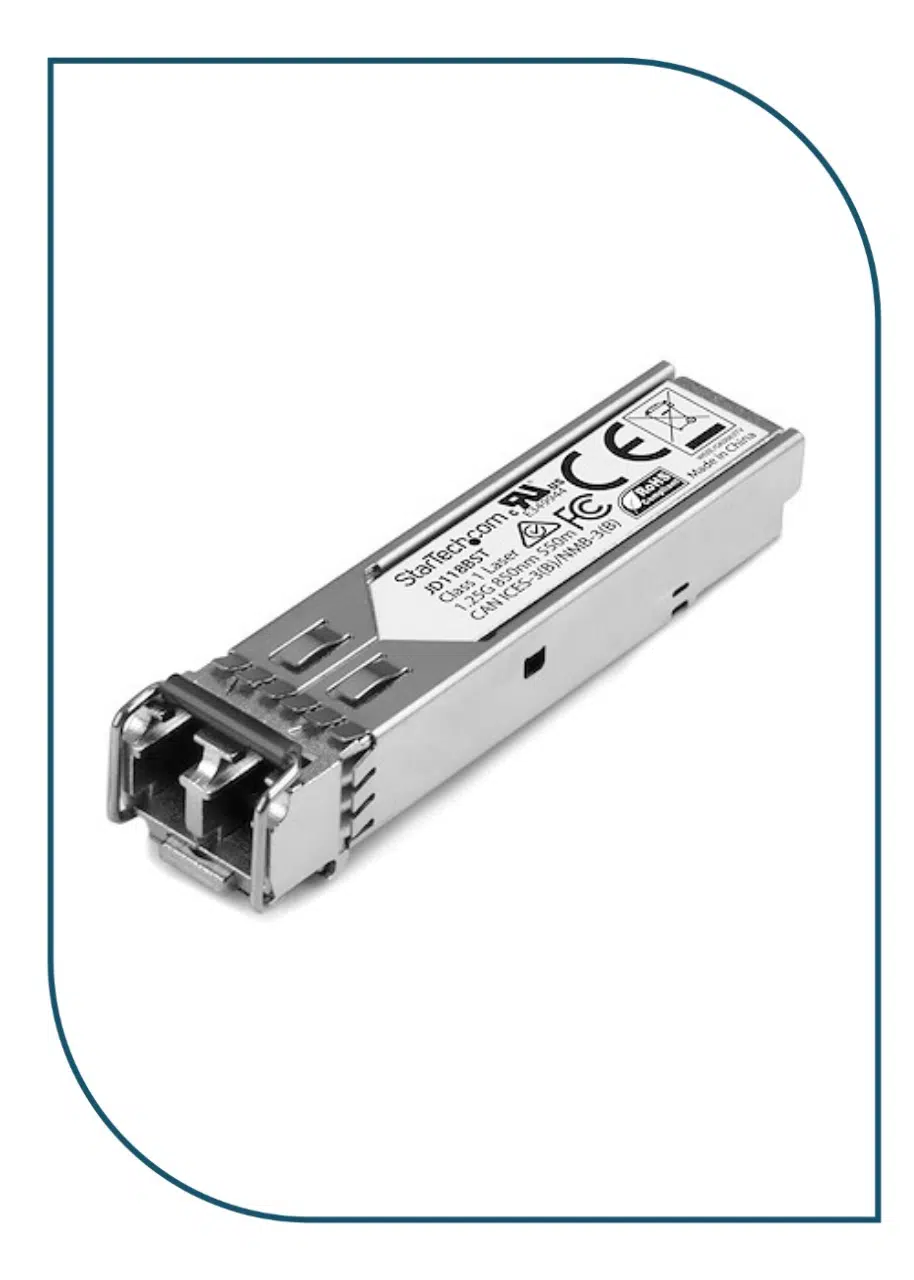

The Aruba JD118B X120 1G SFP LC SX Transceiver is a high-performance Gigabit Ethernet optical transceiver designed for enterprise campus networks, data centers, and business environments requiring reliable fiber connectivity. This hot-swappable SFP module supports the 1000BASE-SX standard, delivering 1 Gbps data transmission over multimode fiber (MMF) using an 850 nm wavelength.
Equipped with a Duplex LC connector, the JD118B enables high-speed fiber connections between switches, routers, and other network devices while supporting transmission distances of up to 550 meters on multimode fiber. Its compact SFP form factor allows flexible deployment and easy installation without interrupting network operations.
The Aruba X120 Series transceiver is fully compatible with Aruba and HPE networking equipment featuring SFP ports, providing dependable optical performance for campus LANs, enterprise networks, and fiber backbone connections. Low power consumption, robust reliability, and IEEE 802.3z compliance make it an ideal solution for extending Gigabit Ethernet connectivity over fiber infrastructure.
Designed for demanding business applications, the Aruba JD118B ensures stable, high-quality data transmission while maintaining network efficiency and scalability for future growth.
Specifications
| Specification | Details |
|---|---|
| Model | Aruba JD118B |
| Product Series | X120 Series |
| Product Type | SFP Transceiver Module |
| Form Factor | SFP (Small Form-Factor Pluggable) |
| Data Rate | 1 Gbps Gigabit Ethernet |
| Standard | 1000BASE-SX |
| Connector Type | Duplex LC |
| Fiber Type | Multimode Fiber (MMF) |
| Wavelength | 850 nm |
| Maximum Distance | Up to 550 m |
| Supported Fiber | OM1, OM2, OM3 Multimode Fiber |
| Transmission Mode | Full Duplex |
| Hot Swappable | Yes |
| Power Consumption | Typical 0.8W, Maximum 1.0W |
| Compliance | IEEE 802.3z |
| Compatibility | Aruba & HPE Networking Switches with SFP Ports |
| Application | Campus Networks, Enterprise LANs, Data Centers |
