Description

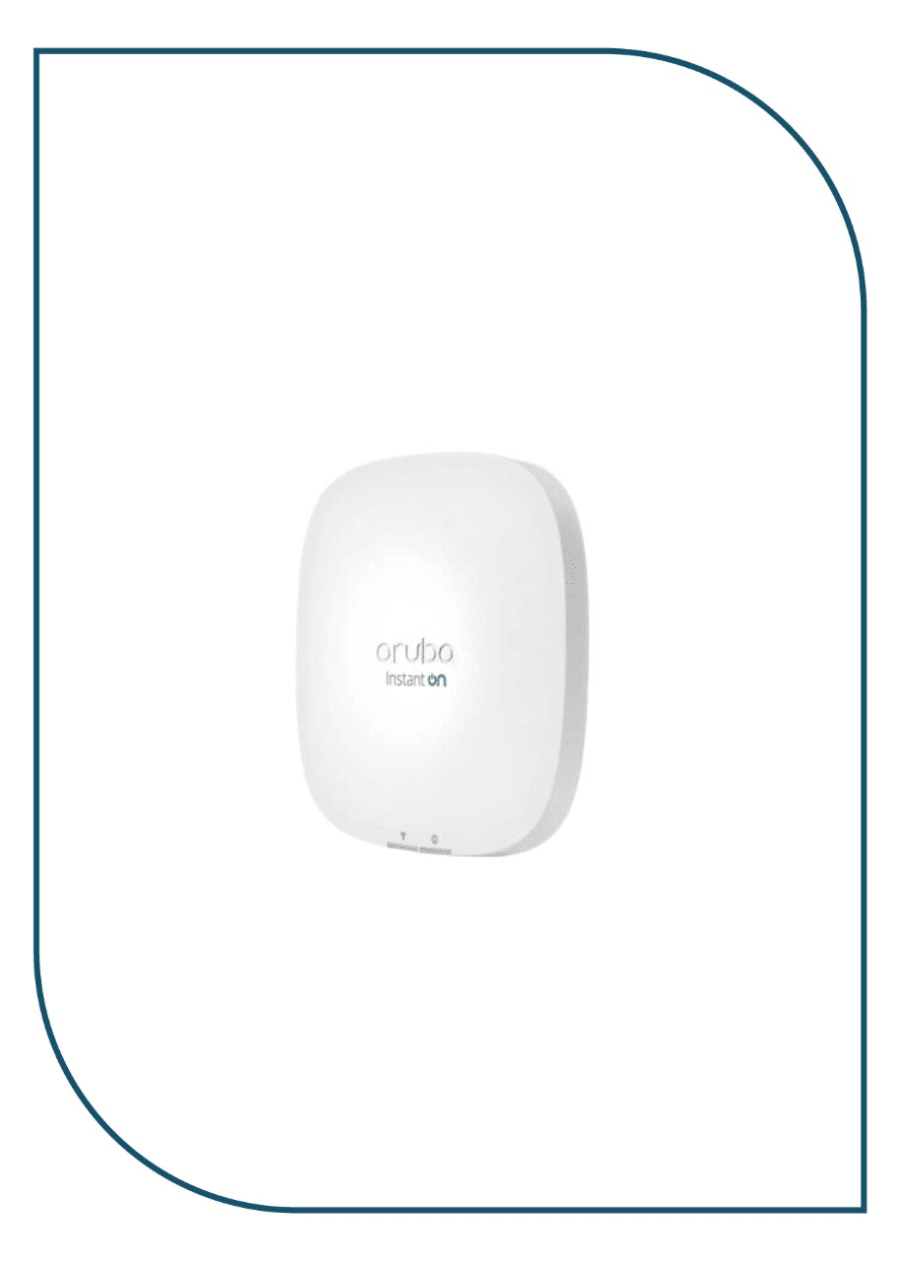

R4W04A
R4W04A Specification |
|
General |
|
Device Type |
Wireless access point |
Ruggedized Design |
Indoor |
Width |
16 cm |
Depth |
16 cm |
Height |
3.7 cm |
Networking |
|
Form Factor |
Wall / ceiling mountable |
Connectivity Technology |
Wireless |
Line Coding Format |
1024 QAM |
Data Link Protocol |
Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
Spread Spectrum Method |
OFDMA |
Network / Transport Protocol |
PPPoE |
Frequency Band |
2.4 GHz, 5 GHz |
Performance |
Maximum data rate (5 GHz): 1.2 Gbps Maximum data rate (2.4 GHz): 574 Mbps |
Status Indicators |
Status |
Encryption Algorithm |
WPA2, WPA3 |
Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
Antenna | |
Antenna | Internal |
Directivity | Omni-directional |
Internet of Things (IoT) | |
Internet of Things (IoT) Compatible | Yes |
Communications Technology | Bluetooth Low Energy (LE) |
Expansion / Connectivity | |
Interfaces |
1 x Ethernet 1000 (uplink) |
Power | |
Power Over Ethernet (PoE) Supported | PoE |
Software / System Requirements | |
Software Included | InstantOn |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature |
40 °C |
