Description

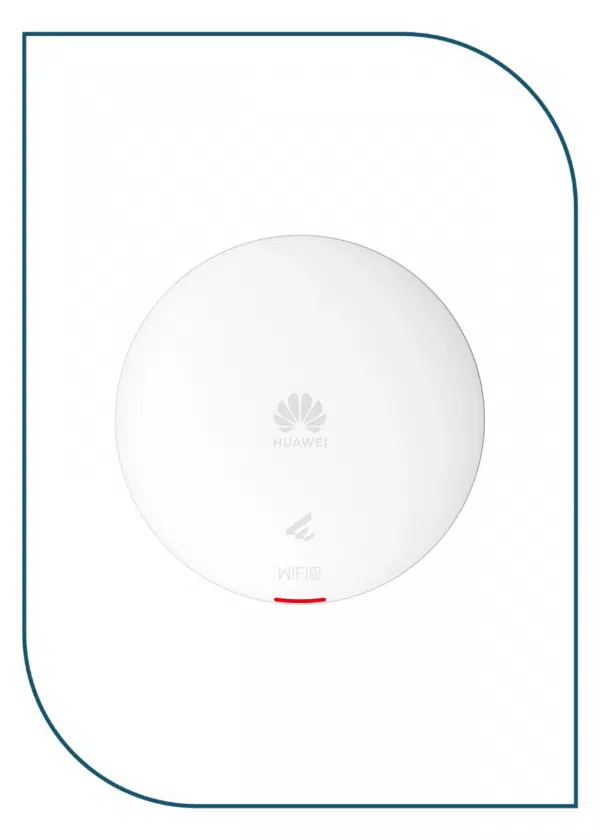

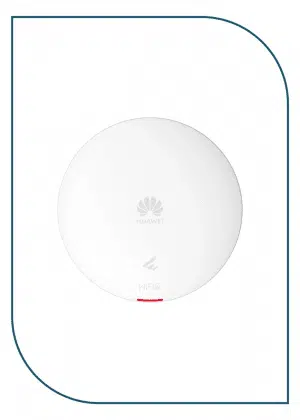

The Huawei eKitEngine AP362 is a high-performance Wi-Fi 6 (802.11ax) indoor access point designed for small and medium-sized businesses, offices, hotels, schools, retail stores, and healthcare facilities. It delivers an aggregate wireless throughput of up to 2.975 Gbps, providing fast, stable, and efficient wireless connectivity for modern enterprise environments.
Featuring dual-band 2×2 MIMO, smart antenna technology, 160 MHz channel bandwidth, and advanced Wi-Fi 6 technologies such as OFDMA, MU-MIMO, 1024-QAM, BSS Coloring, and Target Wake Time (TWT), the AP362 improves network capacity, reduces latency, and enhances user experience even in high-density deployments. Huawei’s smart antennas also extend wireless coverage by up to 20% compared to conventional antennas.
The AP362 supports IEEE 802.3af PoE and 12V DC power input, making deployment flexible and cost-effective. It can be managed through the Huawei eKit App, web interface, or cloud platform, enabling simple installation, centralized monitoring, and remote maintenance. Its compact ceiling- or wall-mount design makes it ideal for enterprise wireless LAN deployments.
Specifications
| Feature | Specification |
|---|---|
| Model | Huawei eKitEngine AP362 |
| Product Type | Indoor Wi-Fi 6 Access Point |
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
| Backward Compatibility | 802.11a/b/g/n/ac/Wave 2 |
| Frequency Bands | 2.4 GHz & 5 GHz |
| MIMO | 2×2 @ 2.4 GHz + 2×2 @ 5 GHz |
| Spatial Streams | 4 |
| Maximum Wireless Speed | 2.975 Gbps |
| 2.4 GHz Speed | Up to 575 Mbps |
| 5 GHz Speed | Up to 2.4 Gbps |
| Maximum Channel Width | 160 MHz |
| Ethernet Port | 1 × 10/100/1000 Mbps RJ45 |
| Power Supply | IEEE 802.3af PoE or 12V DC |
| Maximum Power Consumption | 11.2 W |
| Antennas | Built-in Smart Antennas |
| Maximum Users | 256 |
| Recommended Users | 80 |
| Maximum Transmit Power | 20 dBm |
| Optimal Coverage | Up to 18 m |
| Management | Huawei eKit App, Cloud Management, Web |
| Mounting | Ceiling or Wall |
| Dimensions | Ø180 × 35 mm |
| Weight | Approx. 0.46 kg |
| Operating Temperature | -10°C to +50°C |
