Description
202141115B
Standards:
- ANSI/TIA-568.2-D:2018
- ISO/IEC 11801-1:2017
- CENELEC EN 50173-1
- CENELEC EN 50288-6-1
- Flame retardancy is verified according to IEC 60332-1-2
- 3P certified
- ETL certified
- RoHS compliant
202141115B Application:
- 1000BASE-TX (Gigabit Ethernet)
- 1000BASE-T (Gigabit Ethernet)
- 100BASE-TX Fast Ethernet
- 10BASE-T Ethernet
- Voice
Construction
| Conductor | Material / size | Bare Copper /24 AWG |
| Insulation | Material | HDPE |
| Sheath | Material | PVC / LSOH |
| Diameter | 6.2± 0.3 mm |
202141115B Mechanical & Environmental Characteristics
| Bending Radius | ≥ 6D, without load |
| ≥ 8D, with load | |
| Operation Temperature | -20 °C ~+60°C |
| Installation Temperature | 0°C ~+50°C |
| Storage Temperature | -30 °C ~+60°C |

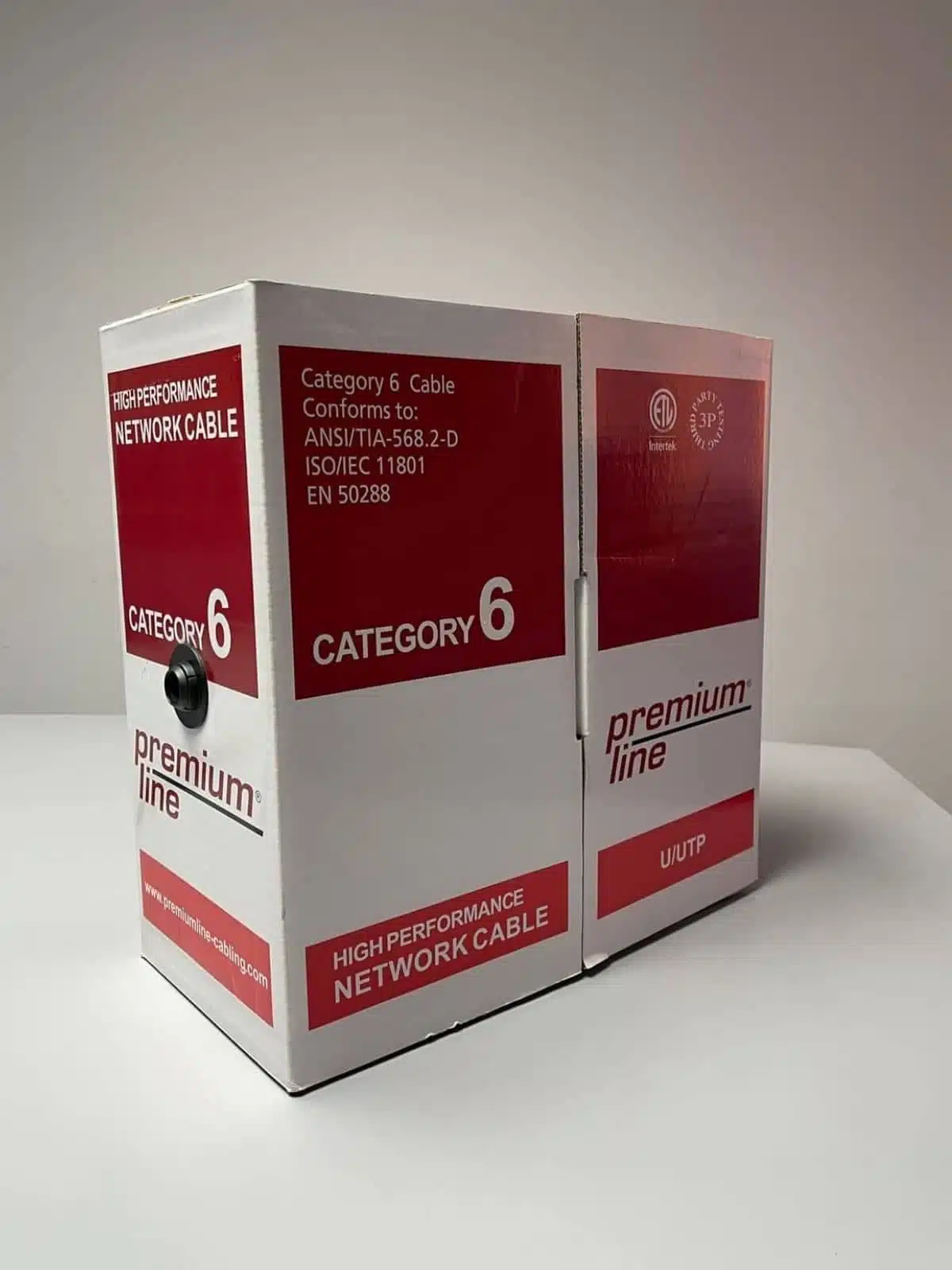

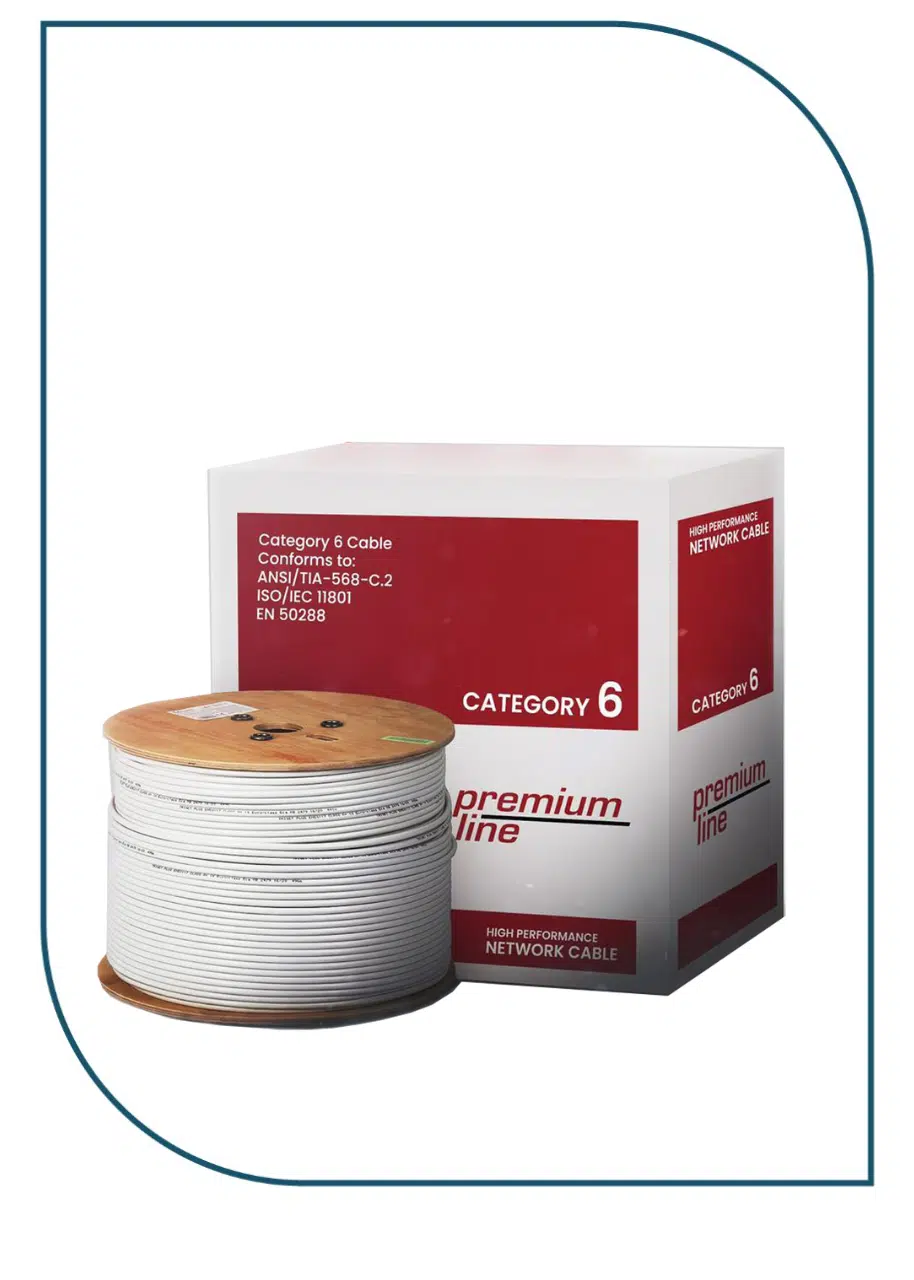

Category 6 U/UTP Installation Cable
| PART NO. | DESCRIPTION | PACKING SIZE |
| 206141115 | Premium-Line Category 6 U/UTP Installation cable, 305 m Box, PVC, Grey | 45×45×21 cm |
| 206142115 | Premium-Line Category 6 U/UTP Installation cable, 305 m Box, LSOH, Grey | 45×45×21 cm |
