Description
182420305
Cat. 6A S/FTP
182420305

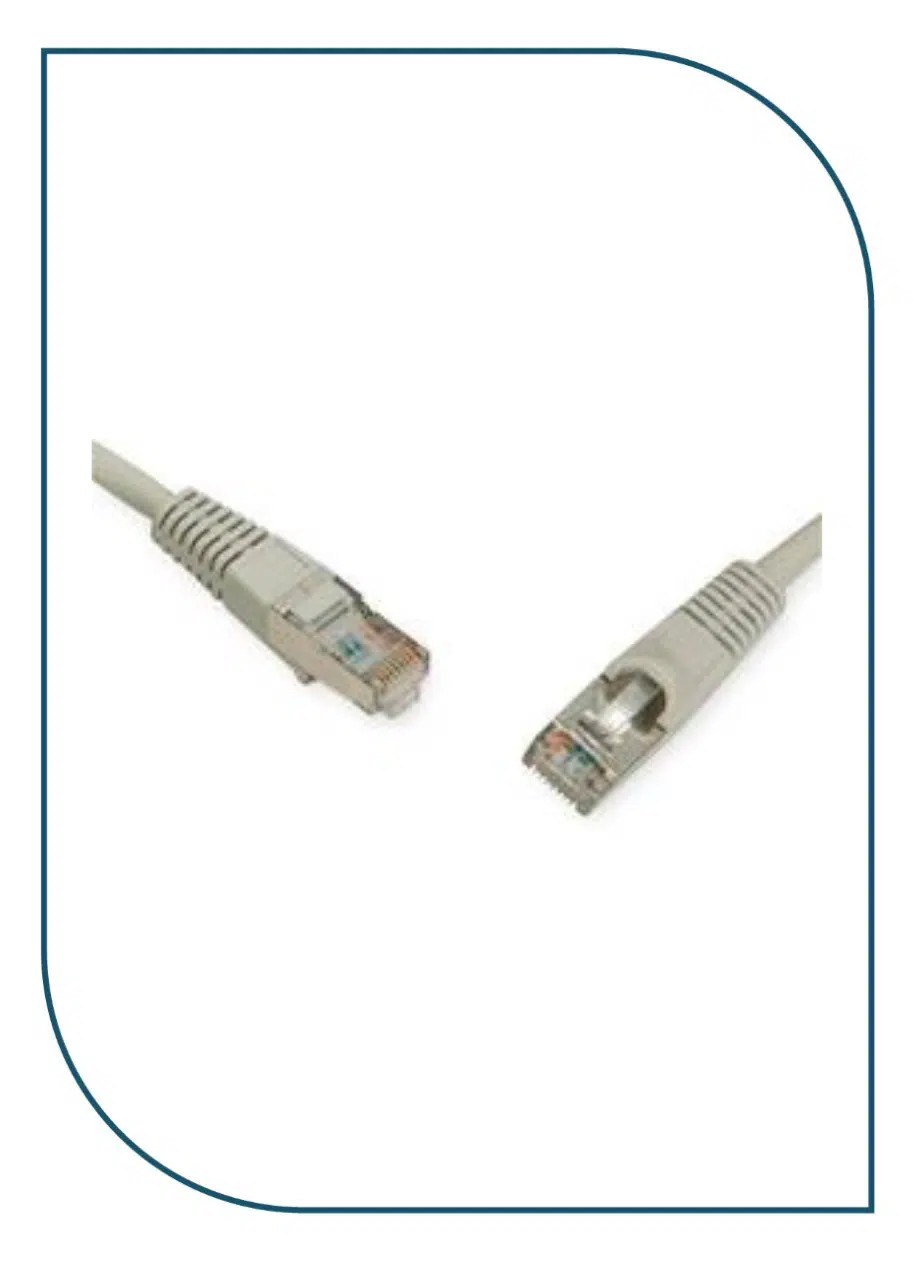

S/FTP Patch Cord. LS0H
Premium-Line Category 6A S/FTP patch cord supports whole link achieves Class EA 500MHz 10G Channel Applications. To realize the high performance, the cable is coming two shielding layers. Each pair is wrapping with individual Aluminium -Mylar film, to eliminate the near end pair to pair interferences. Again an aluminium ciated brading laid over the inner structure to provide protection against from outside EMI interferences.
Construction
| Conductor | Material / size | Bare Copper / 26 AWG | |
| Insulation | Material | Foam-Skin PE | |
| Inner-Shield | Aluminum-Mylar | an aluminum foil screen around each pair | |
| Braid | Material | Tinned Copper | |
| Sheath | Material | PVC/LSOH | |
| Diameter | 5.7± 0.3 mm | ||
Category 6A S/FTP Patch Cord, LS0H
| LENGTH | GREY | GREEN | BLUE | RED | YELLOW |
| 0.5m | 182420055 | 182420056 | 182420054 | 182420053 | 182420058 |
| 1m | 182420105 | 182420106 | 182420104 | 182420103 | 182420108 |
| 2m | 182420205 | 182420206 | 182420204 | 182420203 | 182420208 |
| 3m | 182420305 | 182420306 | 182420304 | 182420303 | 182420308 |
| 5m | 182420505 | 182420506 | 182420504 | 182420503 | 182420508 |
| 7m | 182420705 | 182420706 | 182420704 | 182420703 | 182420708 |
| 10m | 182421005 | 182421006 | 182421004 | 182421003 | 182421008 |
Other lengths, colors or PVC cables on request.
