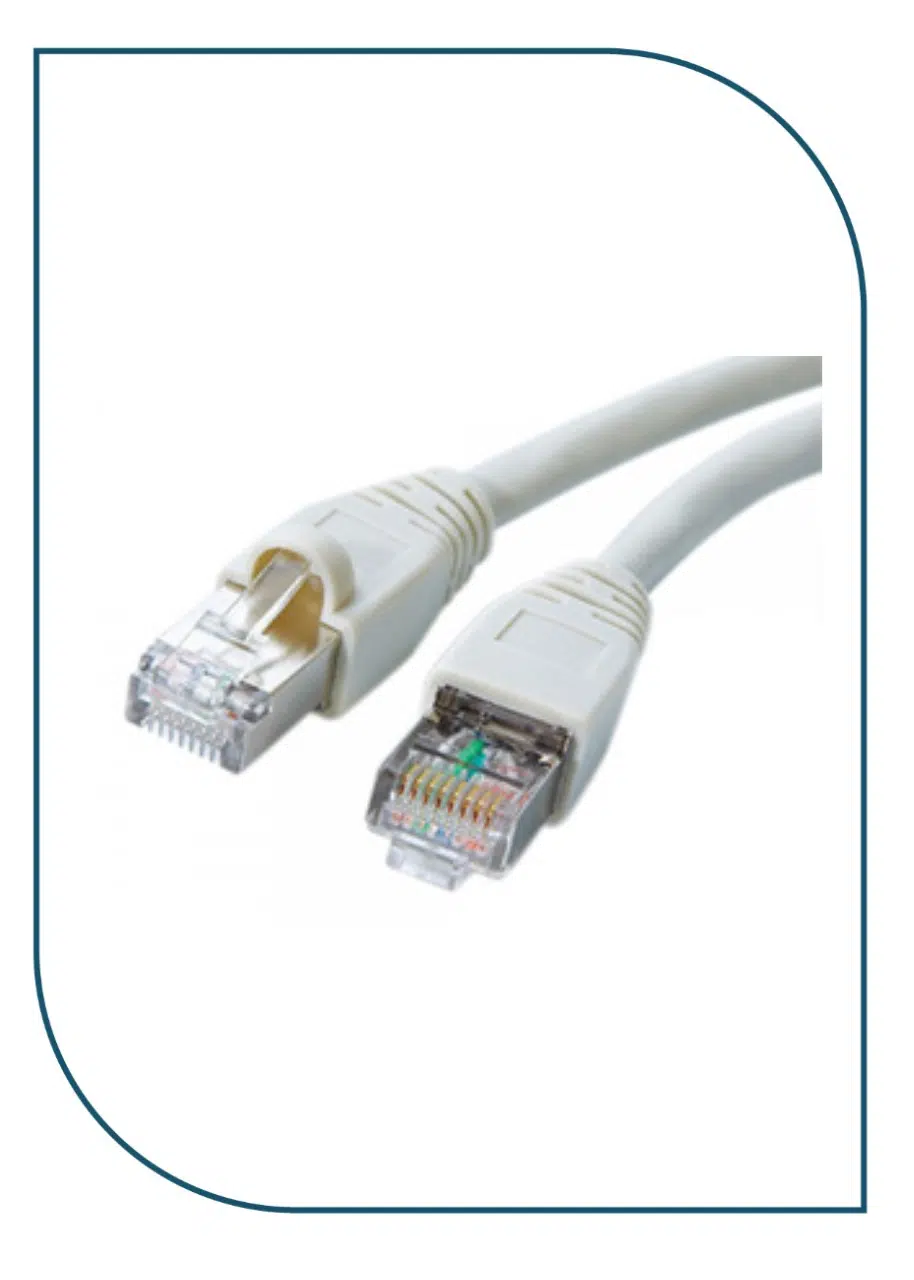

Premium Line Category 6A U/UTP Patch Cord, Snag Proof, LSOH, Grey, 3m length

Premium Line

Premium Line Category 6A U/UTP Patch Cord, Snag Proof, LSOH, Grey, 3m length

WhatsApp Button Call for Price

Availability: Out of stock
SKU:182120305

All prices include VAT

Description

Premium Line

Cat. 6A U/UTP

Premium-Line Category 6A U/UTP patch cord supports the whole channel transmission as per standard TIA/EIA-568.2-D:2018, ISO/IEC 11801 and EN 50173-1 Class EA specifications. The 24 AWG stranded conductor and flexible construction easy for bending or change. Normally, the patch cord will be in TIA 568B wiring, TIA 568A or other wiring methods upon request. The patch cord is finished with snag proof boot.

FEATURES:

Category 6A U/UTP Patch Cord is using:

  • Central cross member for pair separation
  • RJ45 contacts 50μ inch gold plated
  • Molded snag proof boot

Compliant with Cat.6A standards as:

  • ANSI/TIA 568.2-D:2018
  • ISO/IEC 11801-1 Class Ea:2017
  • IEC 61935-2:2010 (Edition 3.0)
  • IEC 61156-6:2012
  • CENELEC EN 50288-11-2:2015
  • CENELEC EN 50173-1:2018
  • ETL Verified

Compliant with safety standards as:

  • IEC 60332-1-2:2004
  • RoHS compliant (EU Directive 2011/65/EC)

Construction

Conductor Material / size Bare Copper / 24 AWG
Insulation Material HDPE
Thickness Average: 0.235mm    Min. at any point: 0.185 mm
Diameter 1.03 ± 0.05 mm
Sheath Material PVC LS0H
Thickness Average: 0.65 mmMin. at any point: 0.60 mm Average: 0.65 mmMin. at any point: 0.60 mm
Diameter 7.5 ± 0.3 mm 7.5 ± 0.3 mm
Operation Temperature -20°C~+60°C
Installation Temperature 0°C~+50°C
Storage Temperature -30°C~+60°C

APPLICATION:

  • 10G BASE-T Ethernet
  • 1000BASE-TX Gigabit Ethernet
  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet
  • 10BASE-T Ethernet
  • Voice, Video and other applications

ORDERING INFORMATION:

Part No: 1821xyyyz
Description Premium Line Cat.6A U/UTP patch cord
x: sheath 1: PVC        2: LSOH
yyy: length 005: 0.5m, 010: 1.0m, 020: 2.0m, 030: 3.0m, 050: 5.0m, 070: 7.0m, 100: 10.0m
z: Color 1: white, 2: black, 3: red, 4: blue, 5: grey, 6: green, 8: yellow

Category 6A U/UTP Patch Cord, PVC

LENGTH  GREY  GREEN  BLUE  RED  Yellow
0.5m 182110055 182110056 182110054 182110053 182110058
1m 182110105 182110106 182110104 182110103 182110108
2m 182110205 182110206 182110204 182110203 182110208
3m 182110305 182110306 182110304 182110303 182110308
5m 182110505 182110506 182110504 182110503 182110508
7m 182110705 182110706 182110704 182110703 182110708
10m 182111005 182111006 182111004 182111003 182111008

Other lengths, colors or halogen free cables on request.
