Description

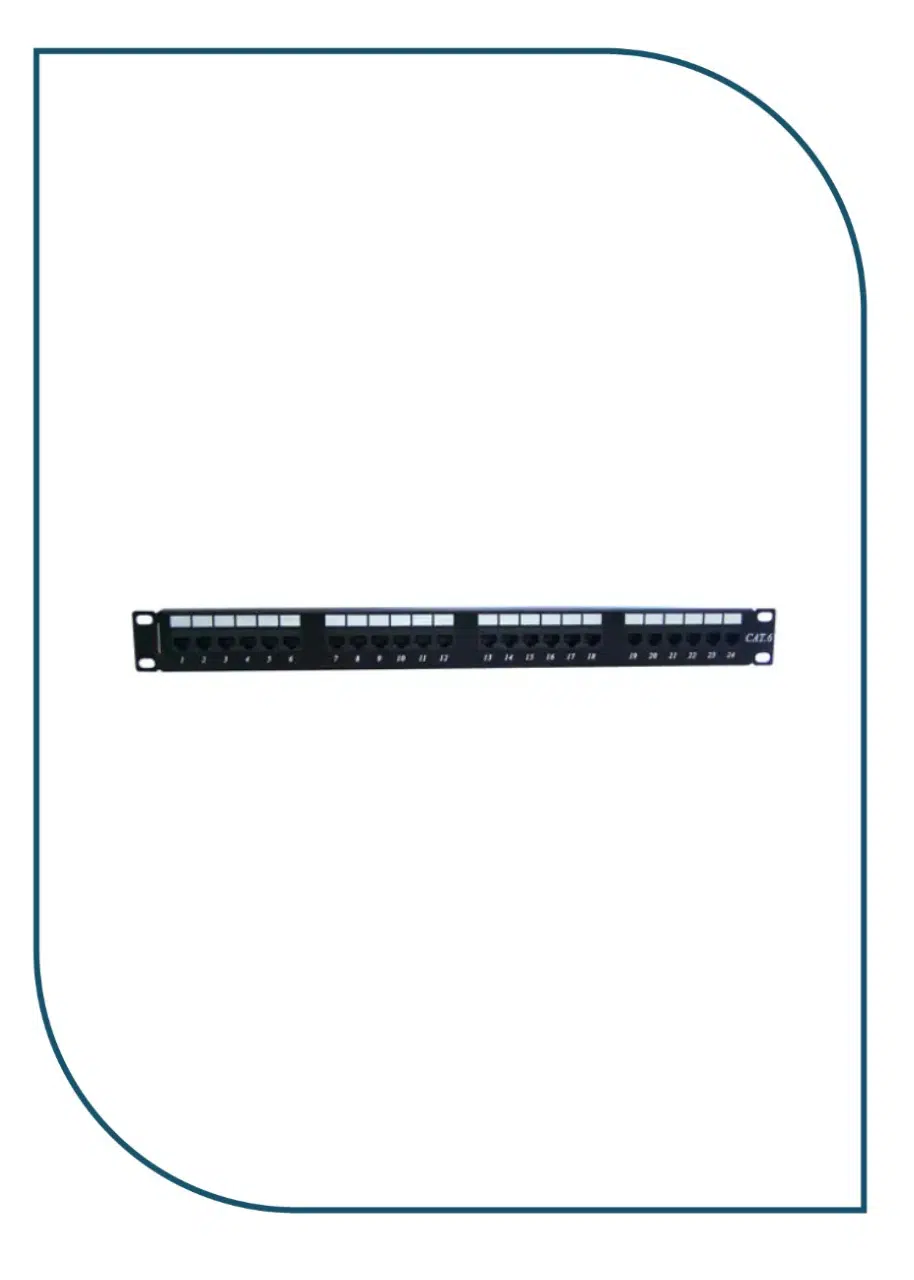

Premium-Line Category 6 Unshielded Patch Panel comply with ANSI/TIA-568.2-D, ISO/IEC 11801-1 and
EN 50173-1 Class E specifications. The complete module complies with EU ROHS directive.
The construction is in standard 1U 19” size, suits for all 19” rack installation. The main metal frame is made of SECC material, with the thickness over 1.0mm. Dual type IDC accepts 22-26 AWG solid cable, easy for termination with 110 or Krone tools. The finished product is available in 24 ports (1U) .
Physical Characteristics |
|
| Jack | Phosphor bronze, 50μ inch gold plating over nickel in contact area |
| IDC | 100μ inch nickel plated over phosphor bronze |
Electrical Characteristics |
|
| Dielectric Strength | 1000V RMS for 1min |
| Current Rating | 1.5Amp Max. |
| Insulation Resistance | 10MΩ Min. |
| Contact Resistance | 2mΩ per contact |
| Temperature Range | -10°C to 60°C |
| Humidity | 10%~90%; non condensing |
Applications
|
|
All the products are verified to the electrical characteristics required in the directive.
Category 6 1U Shielded Patch Panel
| PART NO. | DESCRIPTION | PACKING SIZE |
| 176122412 | Premium-Line Category 6 24port Unshielded Patch Panel, Dual Type IDC, Black | 50×24.5×25.5 cm |
| 195000002 | Premium-Line Cable Management Bar, Click On Type, Black | 50.5×27.9×27 cm |
| 195030002 | Premium-Line Cable Management Bar, Screw Type, Black | 50.5×27.9×27 cm |
