Description
106121010

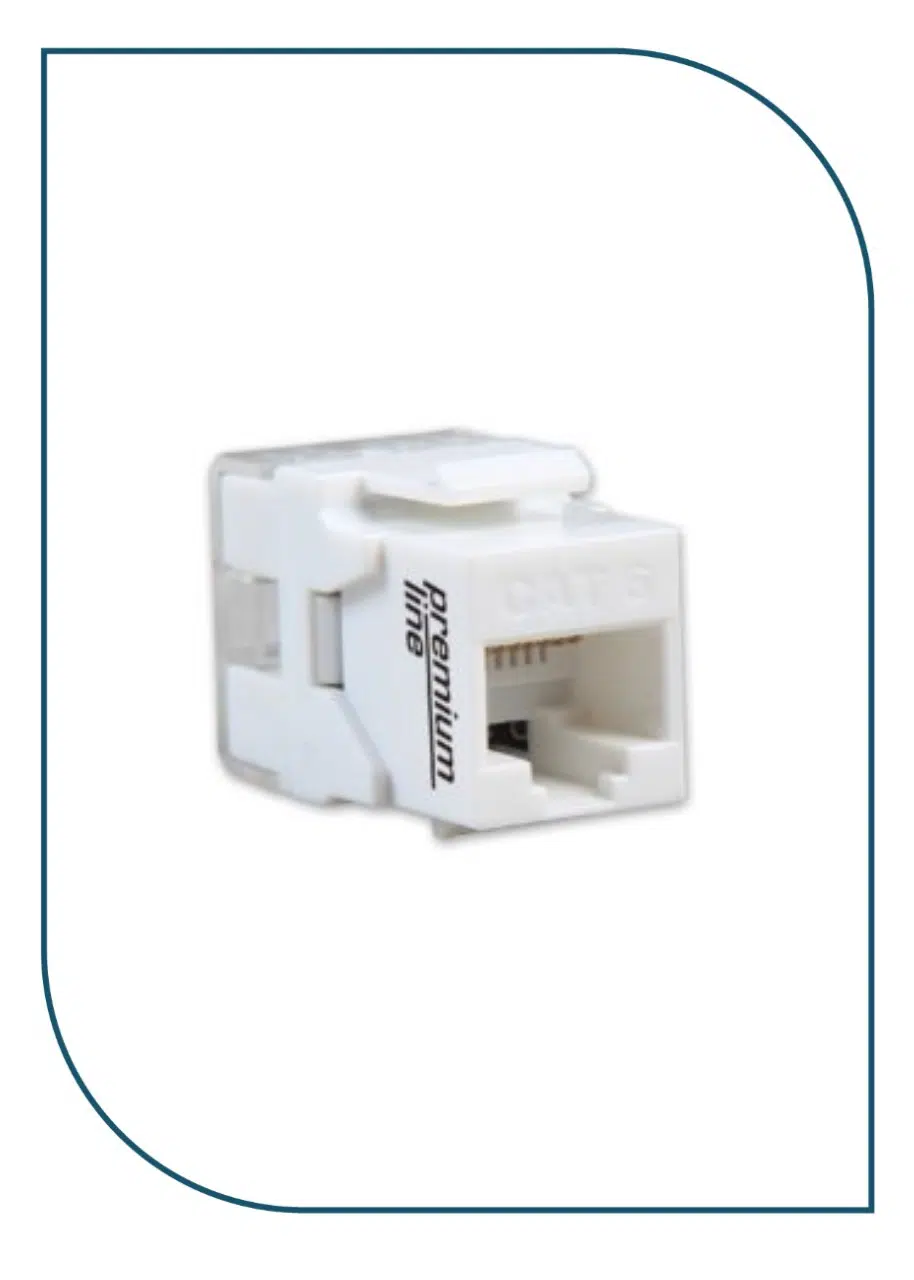

Premium-Line Category 6 180° Unshielded Keystone Jack
Premium-Line 180° unshielded keystone jack is in classical design, it’s compatible with all Premium-Line unloaded modules. The dual type IDC accepts 22-26 AWG solid cables, easy terminated with 110 or Krone tools, supports T568 A&B wiring.
With its good & stable performance, this module earns the good sales result in the market.
FEATURES:
- Conform to TIA/EIA-568.2-D, ISO/IEC 11801-1 and EN50173-1 specifications
- Compact design is ideal for high density applications
- Supports T568 A&B wiring & easy installation
- Dual IDC connector can accept 22-26 AWG solid cables
- Termination by 110 or Krone tools
- Various of color optional
- ETL Verified
- RoHS compliant
APPLICATIONS:
- 1000BASE-TX Gigabit Ethernet
- 1000BASE-T Gigabit Ethernet
- 100BASE-TX Fast Ethernet.
- 10BASE-T Ethernet.
- Voice, Video and other applications.
CHARACTERISTICS:
| Dielectric Strength | 1000V RMS for 1min |
| Current Rating | 1.5Amp Max. |
| Insulation Resistance | 10MΩ Min. |
| Contact Resistance | 2mΩ per contact |
| Temperature Range | -10° to 60° C |
| Humidity | 10%~90%; non condensing |
| Material Flame Rating | PC, UL94 V-0 |
| Admissible Conductor | 22AWG ~ 26AWG insulation wire |
| 8pin contact in PCB Jack | Phosphor bronze: 50μ inch gold plated over nickel platedin contact area
Operating life: Minimum 750 insertions |
| IDC Contacts | 100μ inch nickel plated over phosphor bronzeOperating life: Minimum 250 re-terminations |
ORDERING INFORMATION:
| Part NO. | 106121010 |
| Description | Cat.6 180° unshielded keystone jack, dual type IDC |
| x, color | 1: white 2: black 3: red 4: blue 6: green 8: yellow |
| Packing | 1pc/PE bag, 50pcs/box, 500 pcs/cartoncarton size 53*32*23 cm weight: N.W. 4.3 KG G.W. 5.4 KG |
