Premium-Line Category 6 90° Unshielded Keystone Jack, Dual Type IDC, White

EGP115

Buy Now
Availability: In Stock
SKU:106111010

Description

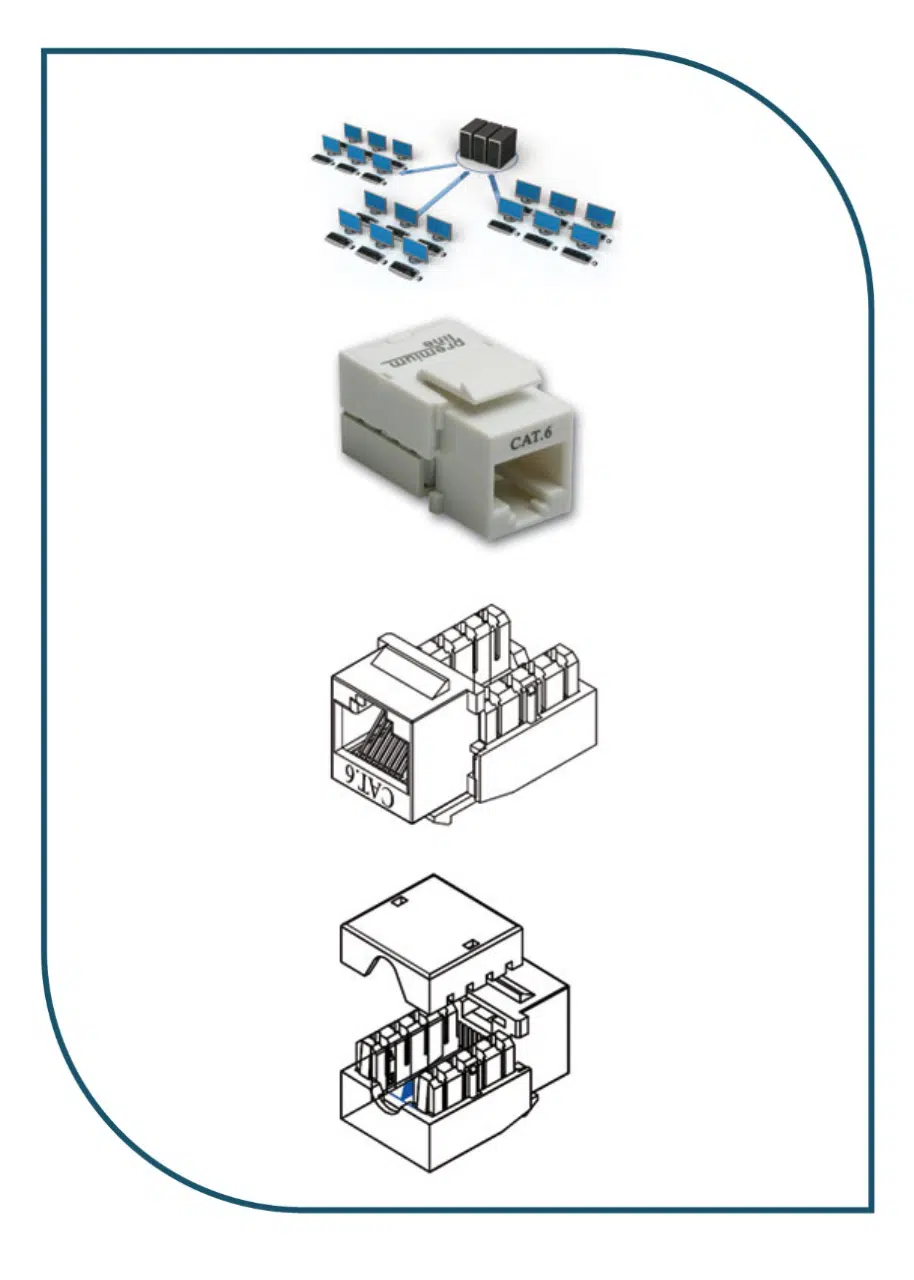

Premium-Line Cat. 6 90° Unshielded Keystone Jack

Premium-Line 90° unshielded keystone jack is in classical design, the dual type IDC accepts 22-26 AWG solid cables, easy terminated with 110 or Krone tools, supports T568 A&B wiring.

With its good & stable performance, this module earns the good sales result in the market.

Physical Characteristics

Housing PC, UL94 V-0
Jack Contact phosphor bronze, 50μ inch gold plated over nickel
IDC Contacts 100μ inch nickel plated over phosphor bronze

Electrical Characteristics

Dielectric Strength 1000V RMS for 1min
Current Rating 1.5Amp Max.
Insulation Resistance 10MΩ Min.
Contact Resistance 2mΩ per contact
Temperature Range -10°C to 60°C
Humidity 10%~90%; non condensing

Applications

  • 1000BASE-TX Gigabit Ethernet
  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet
  • 10BASE-T Ethernet
  • Voice, Video and other applications

All the products are verified to the electrical characteristics required in the directive.

Category 6 90° Unshielded Keystone Jack

PART NO. DESCRIPTION PACKING SIZE
106111010 Premium-Line Category 6 90° Unshielded Keystone Jack, Dual Type IDC, White 53.8×35.2×27 cm
