JL811A

Datasheet

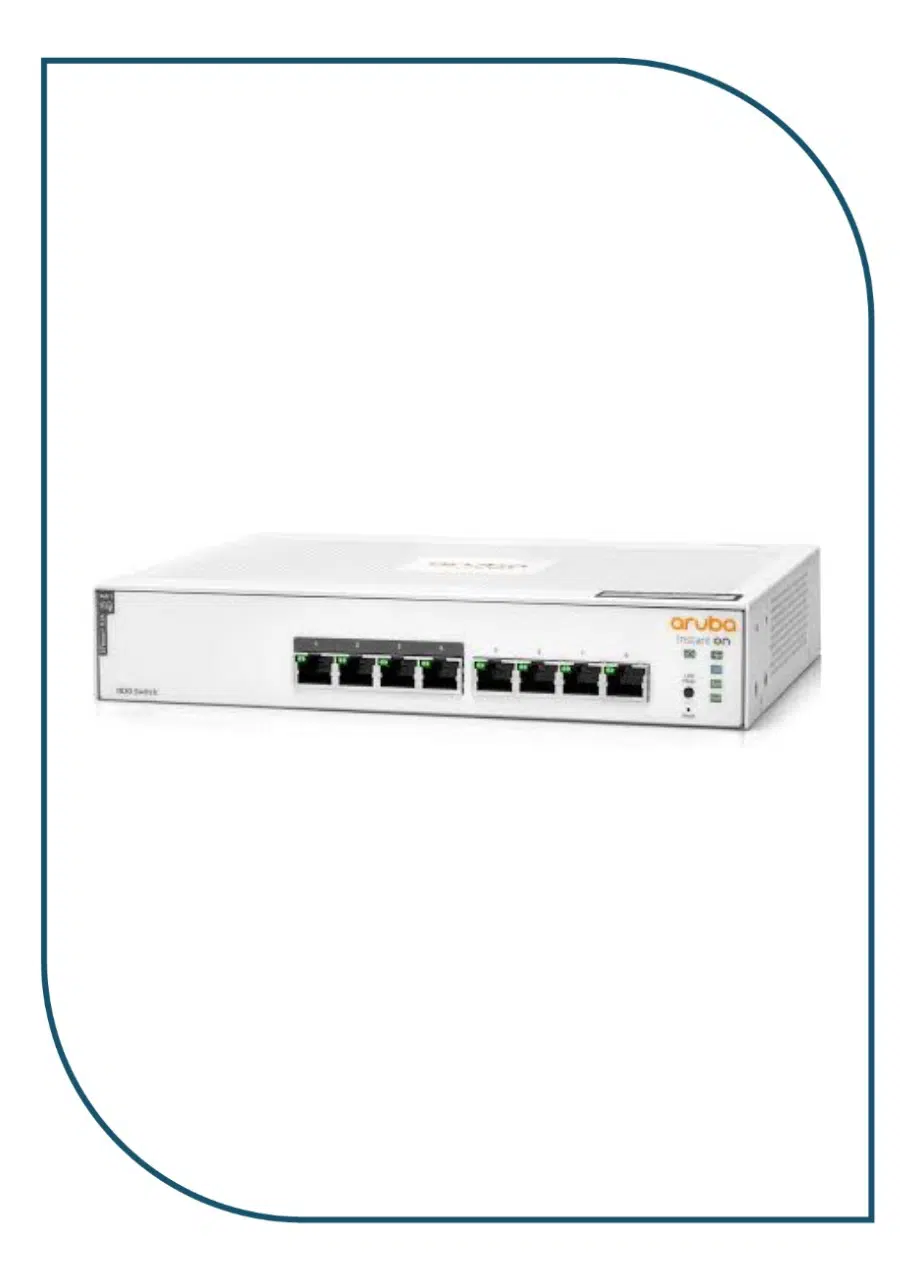

Product Differentiator (long)Entry-level, smart-managed, Gigabit Layer 2 switches. Easy-to-deploy, secure and affordable switches, designed for small businesses?looking for cost-effective solution with evolving networking demands. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1830 switches. Can also manage the device through the local web GUI. This model has 8 10/100/1000 RJ-45 ports and provides 65 W of Class 4 PoE power.

Power Consumption DescriptionMaximum: 100-127V: 86.07W 200-220V: 83.67W, Idle: 100-127V: 8.3W 200-220V: 8.2W

Input Voltage100 – 240 VAC

External I/O Ports8 RJ-45 10/100/1000 Class 4 PoE ports

Switching Capacity16 Gbps

Throughput11.90 Mpps

Memory and ProcessorARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash, packet buffer: 1.5 MB

PoE Capability65W

Management FeaturesAruba Instant On Cloud, Web browser, SNMP Manager

Warranty Standard StatementLimited Lifetime Warranty with 24×7 phone support for 90 days and chat support for the entire warranty duration.

Weight (imperial)3.40 lb

Weight (metric)1.54 kg

Product Dimensions (imperial)7.68 x 9.65 x 1.73 in

Product Dimensions (metric)19.51 x 24.51 x 4.39 cm
