Description

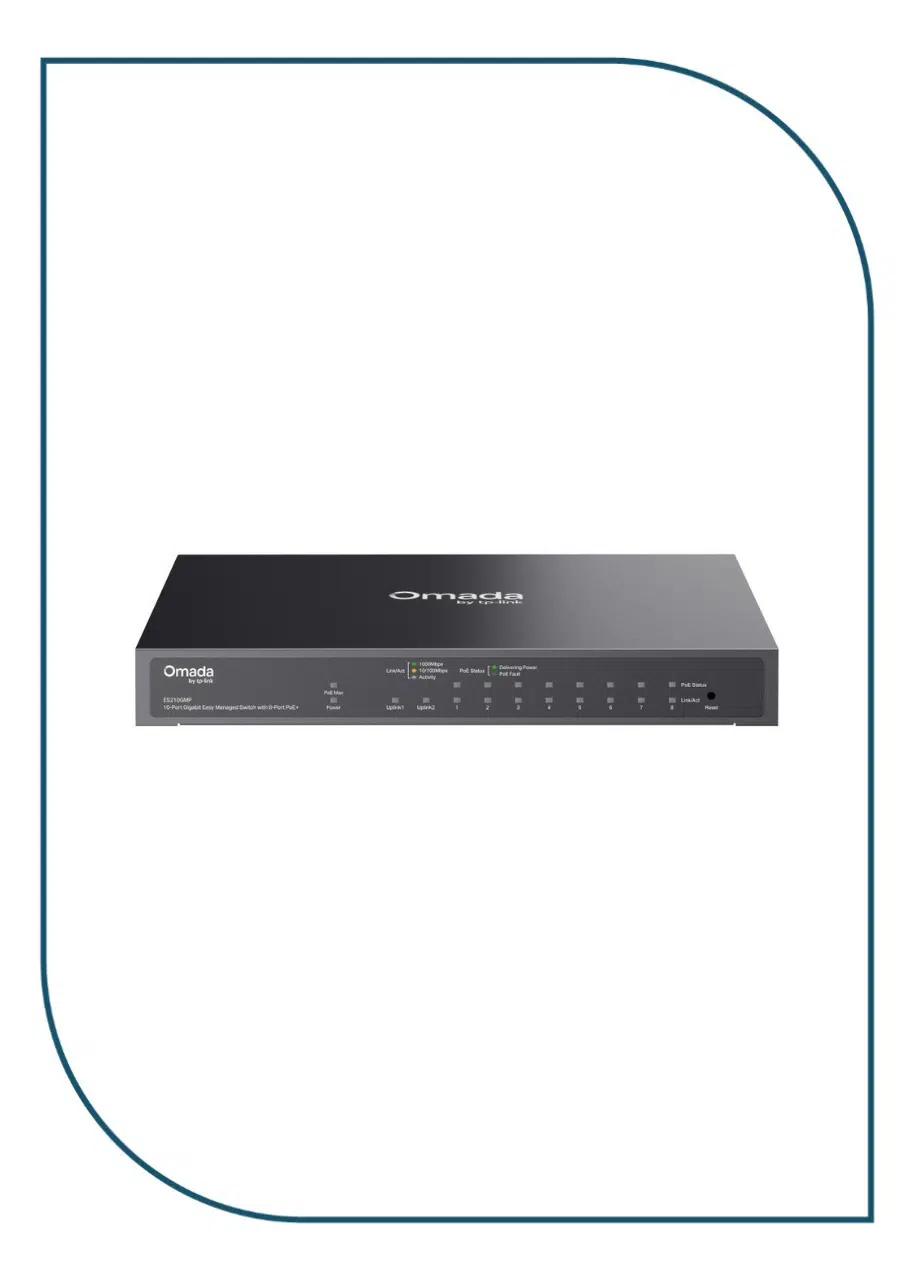

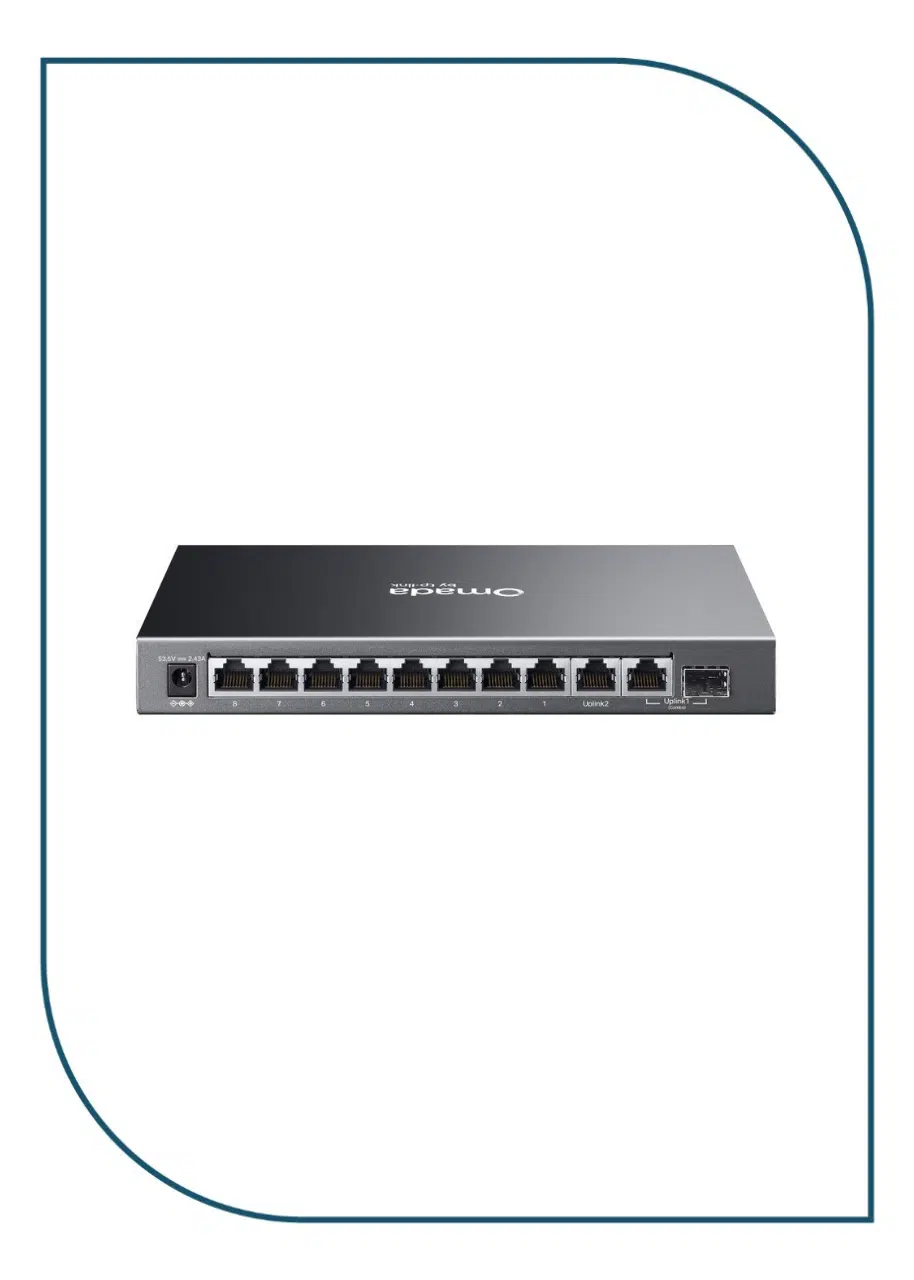

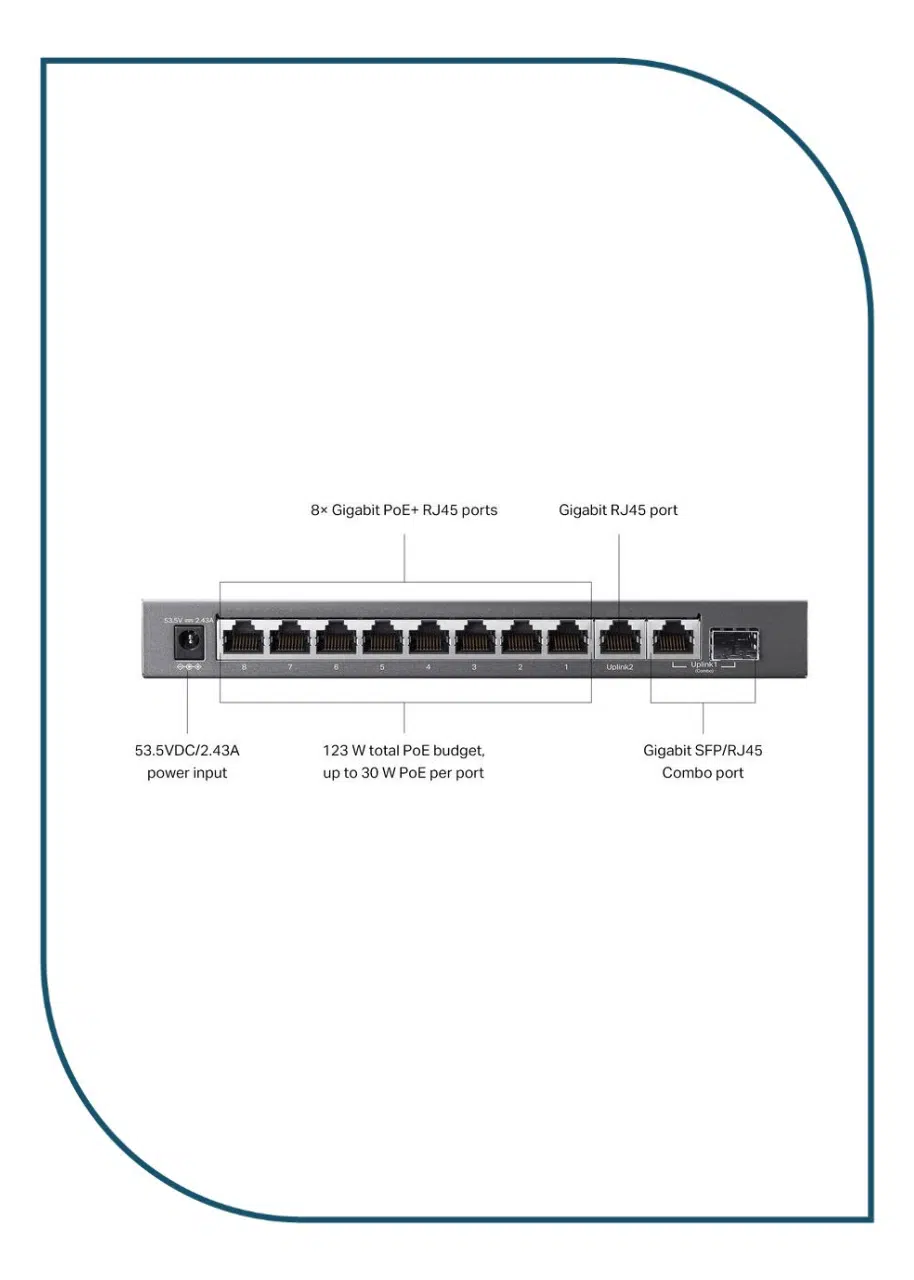

The TP-Link Omada ES210GMP is a compact 10-port Gigabit Easy Managed PoE+ Switch designed for small business networks, IP surveillance, VoIP, and wireless deployments. It provides 8 × Gigabit PoE+ ports, plus 1 × Gigabit RJ45 port and 1 × Gigabit SFP/RJ45 combo port.
Key Features
- 10 × Gigabit Ethernet ports
- 8 × 10/100/1000 Mbps PoE+ RJ45 ports
- 1 × Gigabit RJ45 port
- 1 × Gigabit SFP/RJ45 Combo port
- 802.3af/at PoE+
- 123W total PoE power budget
- Up to 30W per PoE port
- Up to 250m PoE transmission with supported setup
- 20 Gbps switching capacity
- 14.88 Mpps forwarding rate
- 8K MAC address table
- VLAN & IGMP Snooping
- QoS and bandwidth control
- PoE Auto Recovery
- Port Isolation
- Automatic Loop Prevention
- Fanless design for silent operation
- Desktop or wall mounting
- Centralized management through Omada Cloud / Omada App
Specifications
| Specification | Details |
|---|---|
| Model | ES210GMP |
| Brand | TP-Link |
| Series | Omada |
| Product Type | Easy Managed PoE+ Switch |
| Total Ports | 10 × Gigabit |
| PoE+ Ports | 8 × Gigabit RJ45 |
| Additional RJ45 | 1 × Gigabit |
| SFP/RJ45 Combo | 1 × Gigabit |
| PoE Standard | 802.3af / 802.3at |
| PoE Budget | 123W |
| Max. PoE per Port | 30W |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 15 KB |
| Management | Omada Cloud / Omada App |
| VLAN | Yes |
| IGMP Snooping | Yes |
| QoS | Yes |
| PoE Auto Recovery | Yes |
| Loop Prevention | Yes |
| Cooling | Fanless |
| Installation | Desktop / Wall Mount |
| Power Supply | External DC Adapter |
