Description

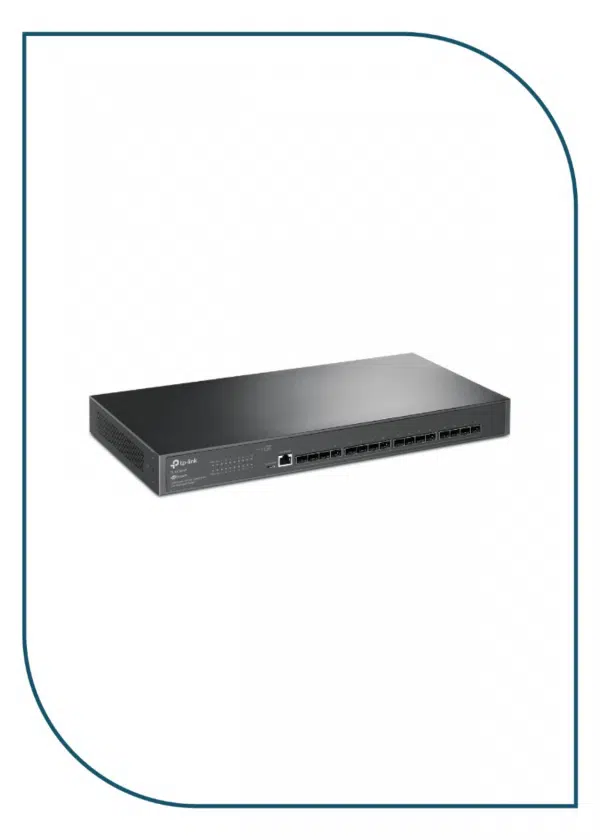

TL-SX3016F
- 16× Full 10GE SFP+ Slots: Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity and non-blocking 320 Gbps switching capacity.
- Abundant L2 and L2+ Features: Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS, IGMP Snooping, and more.
- Robust Security Strategies: Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more.
- Dual Redundant Power Supplies: Two power supplies backing each other up make it an ideal choice for reliable networking architecture.
- Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
| HARDWARE FEATURES | |
|---|---|
| Interface | • 16× 10GE SFP+ Slots
• 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Fan Quantity | 1 |
| Power Supply | 100-240 V AC~50/60 Hz |
| Dimensions ( W x D x H ) | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 32.74 W (220 V / 50 Hz) |
| Max Heat Dissipation | 111.71 BTU/hr (220 V / 50 Hz) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 320 Gbps |
| Packet Forwarding Rate | 238.08 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 24 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • 8 priority queues
• 802.1p CoS/DSCP priority • Queue scheduling – SP (Strict Priority) – WRR (Weighted Round Robin) – SP+WRR • Bandwidth Control – Port/Flow based Rating Limiting • Smoother Performance • Action for Flows – Mirror (to supported interface) – Redirect (to supported interface) – Rate Limit – QoS Remark |
